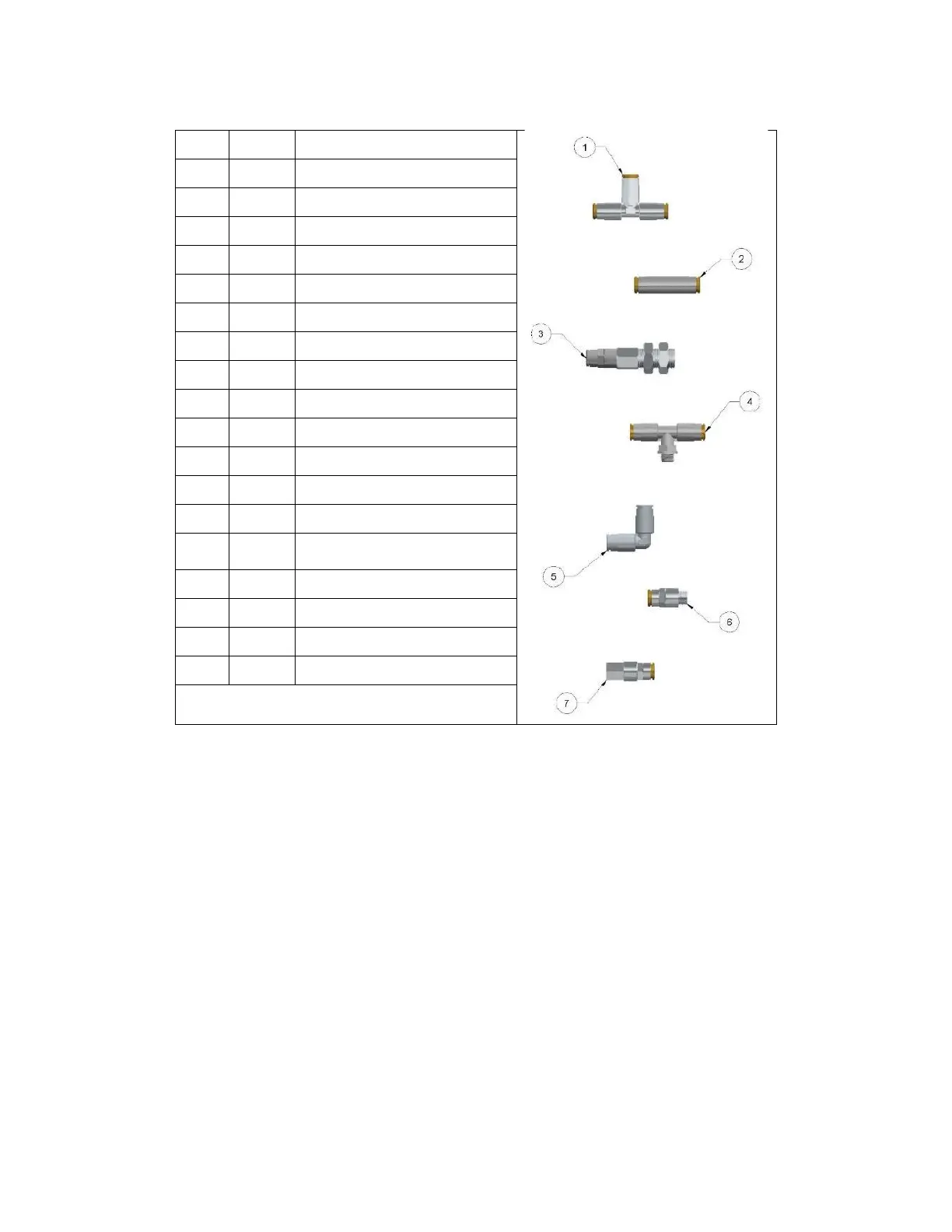

3.4 Firetrace Detection Tubing Fittings
The fittings specified in this DIOM manual are the only accepted fittings to be used on the FDT.
ITEM
P/N
DESCRIPTION
NP
200152
Rubber Grommet
NP
200153
Plastic Grommet
NP
200172
Mounting Tab
NP
200182
Magnetic Mounting Clips
1
200157
Tube Tee
2
200158
Tube Union
NP
200159
Tube to Threads Elbow
3
200168
Tube to End of Line Adapter
NP
200169
Tube Tee to In Line Adapter
4
200177
Tube Tee to Threads
5
200178
Tube Elbow
6
200179
Tube to Threads Union
7
200203
Tube Plug
NP
310303
End of Line Adapter Plug with O-
Ring
NP
201170
Tube to End of Line Adapter Elbow
NP
200185
Tube Fitting End Cap G1/8
NP
200195
End of Line Adapter
NP
200162
Tubing Bulkhead Assembly
NP – PARTS NOT PICTURED
3.5 Pressure Gauge (400195)
The Firetrace FK-5-1-12 pressure gauge, is used as part of the cylinder valve pressure gauge, manual release pressure gauge or End of Line
mounted pressure gauge.
This pressure gauge is supplied with an O-ring installed, and has a M10x1 thread to allow for installation where a Schrader core is present. This
enables the pressure gauge to be field serviceable in all the above applications (cylinder valve, manual release and End of Line mounted locations).
