FIRETRACE FK-5-1-12 - Figure 6 - Flexible Hoses; Figure 7 - Flexible Hose Fittings; Table 10 - Flexible Hose Part Numbers for 940555;941055;942055 Unit Assembly

800027-A 11 06/05/2023

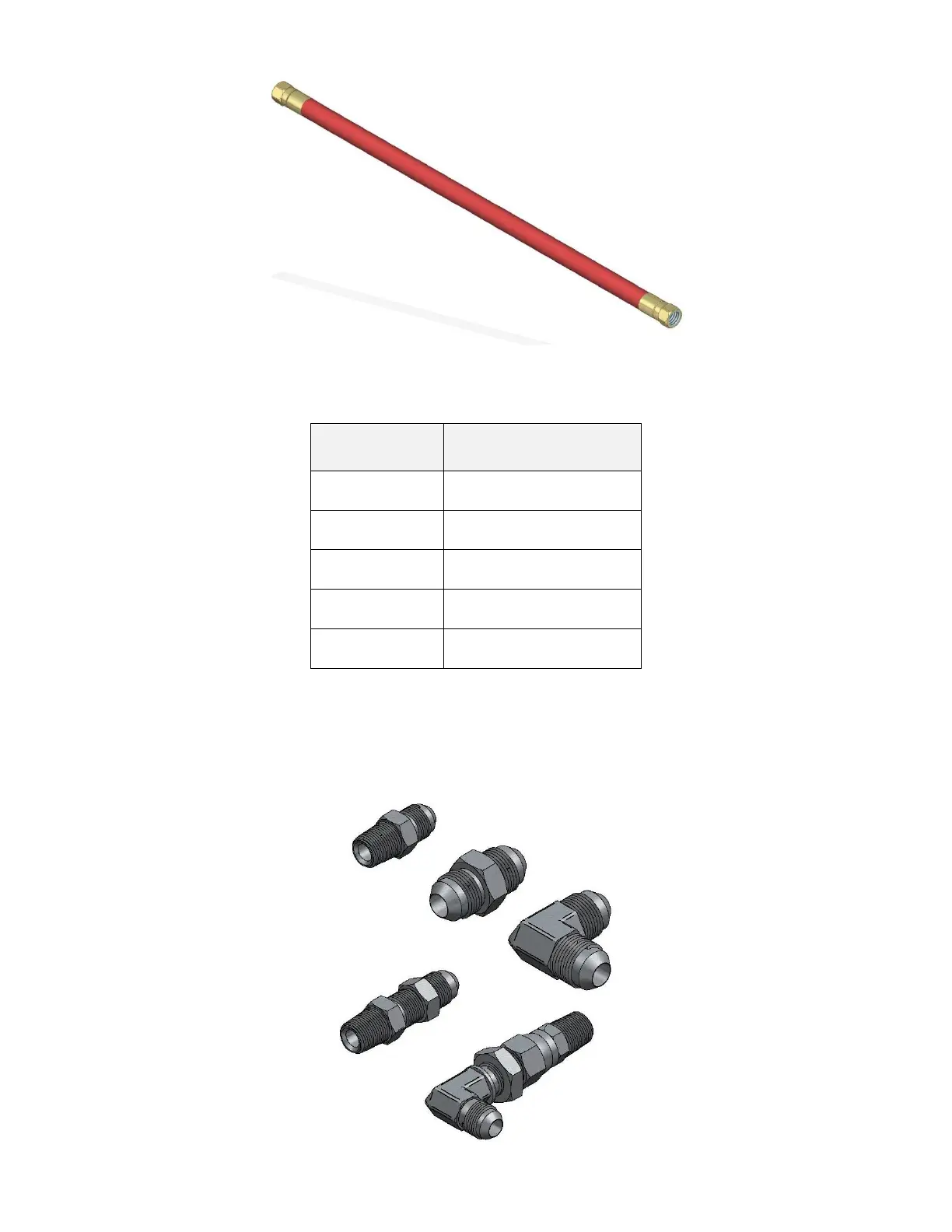

Figure 6 – Flexible Hoses
Table 10 – Flexible Hose Part Numbers for 940555/941055/942055 Unit Assembly
Flexible Hose Part
Number
Description
201820
1/2 in Flexible Hose, 2 ft
201821
1/2 in Flexible Hose, 4 ft
201822
1/2 in Flexible Hose, 6 ft
201823
1/2 in Flexible Hose, 8 ft
201824
1/2 in Flexible Hose, 10 ft
3.7.2.2 Flexible Hose Fittings
The flexible hose fittings are constructed of zinc plated steel. The flexible hose fittings allow for easy installation between the Firetrace FK-5-1-12 ILP
Units, the flexible hoses, and the system nozzles. The flexible hose fittings have a minimum burst rating of 3000 psig [206.8 bar]. Refer to Table 11 –
Flexible Hose Fitting Part Numbers for 940555/941055/942055 Unit Assembly for additional information.
Figure 7 – Flexible Hose Fittings
