FIRETRACE FK-5-1-12 - Figure 10 -Pressure Switch Wiring Schematic; Table 13 - Valve Mounted Pressure Switch Part Number; Table 14 - Pressure Switch Properties

800027-A 14 06/05/2023
Table 13 – Valve Mounted Pressure Switch Part Number
Pressure Switch Part
Number
Description
400001
Valve Mounted Pressure Switch

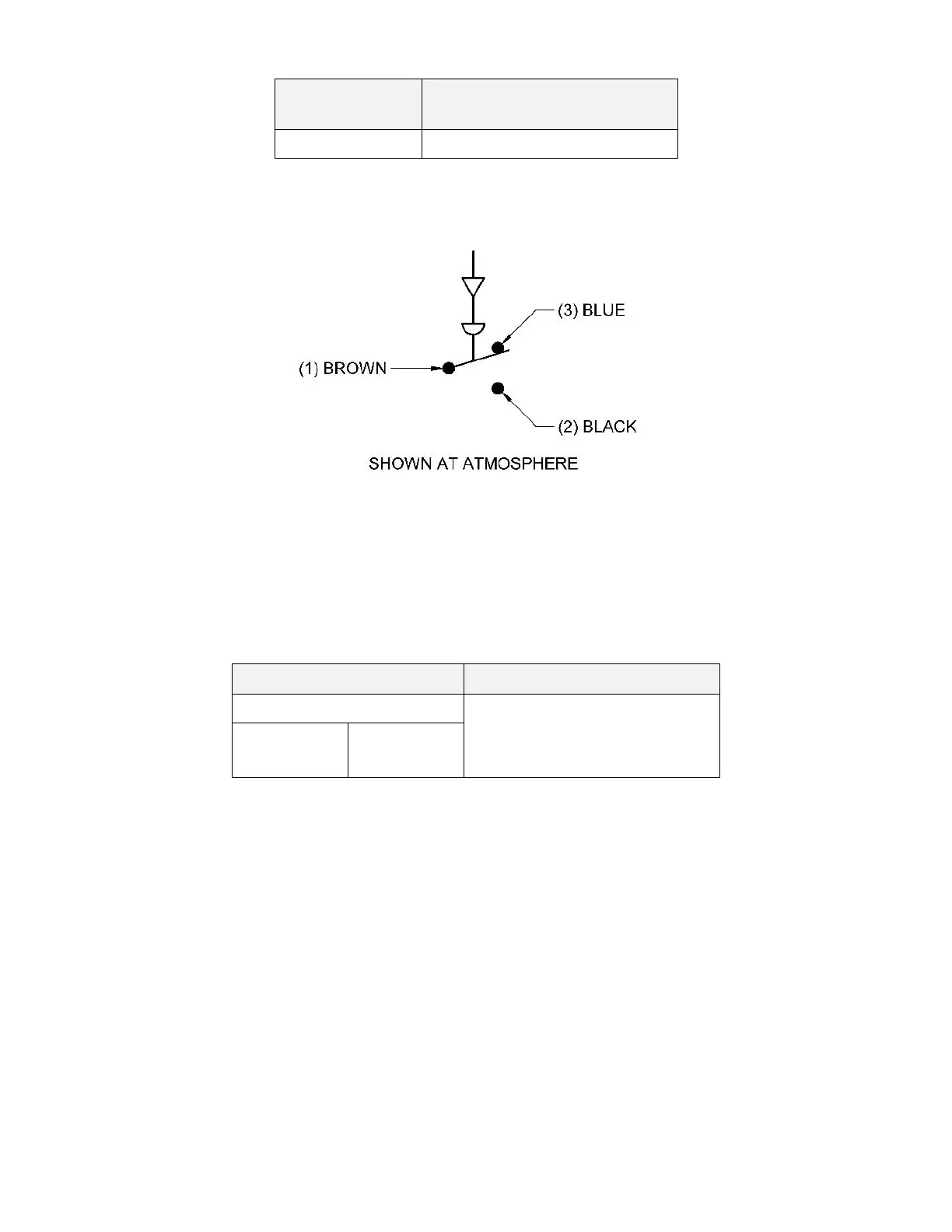

Figure 10 –Pressure Switch Wiring Schematic
Table 14 – Pressure Switch Properties
Electrical Rating
Temperature Range
28 VDC – 15 A
-20 °F to 150 °F
[-28.9 °C to 65.6 °C]
NO (1 and 3):
120 VAC – 10 A
240 VAC – 5 A
NC (1 and 2):
120 VAC – 25 A
240 VAC – 5 A
