FIRETRACE FK-5-1-12 - Nozzles (500015 500120); Figure 8 - Nozzles; Table 11 - Flexible Hose Fitting Part Numbers for 940555;941055;942055 Unit Assembly

To Next Page

To Previous Page

800027-A 12 06/05/2023

Table 11 – Flexible Hose Fitting Part Numbers for 940555/941055/942055 Unit Assembly

Flexible Hose Fitting

Part Number

Description

820230

Fitting, ½ in Hose to Valve Elbow

850022

Fitting, 1/2 in Hose to Valve Union

850023

Fitting, 1/2 in Hose Union

850024

Fitting, 1/2 in Hose Elbow

850025

Fitting, 1/2 in Hose Tee

850026

Fitting, 1/2 in Hose to Nozzle Union Bulkhead

850027

Fitting, 1/2 in Hose to Nozzle Elbow Bulkhead

3.7.1 Nozzles (500015 500120)

Discharge nozzles are made of nickel-plated brass with female pipe threads. Nozzles are available in two sizes for use with Firetrace ILP FK-5-1-12

Units. The small nozzles contain a G1/4 thread. The medium nozzles contain a 1/2 in NPT thread. The 940205 unit assembly uses the small nozzle,

see Figure 8 – Nozzles. The 940205 unit assembly can be designed using 1, 2, or 4 small nozzles. The 940555, 941055 and 942055 unit assemblies

use the medium nozzles, Figure 8 – Nozzles. The 940555 941055 and 942055 unit assemblies can be designed using 1 (only 5lb & 10lb systems), 2

or 4 medium nozzles. The coverage for each nozzle must not exceed its maximum length and area of coverage. Refer to Section 4 for nozzle

coverage information.

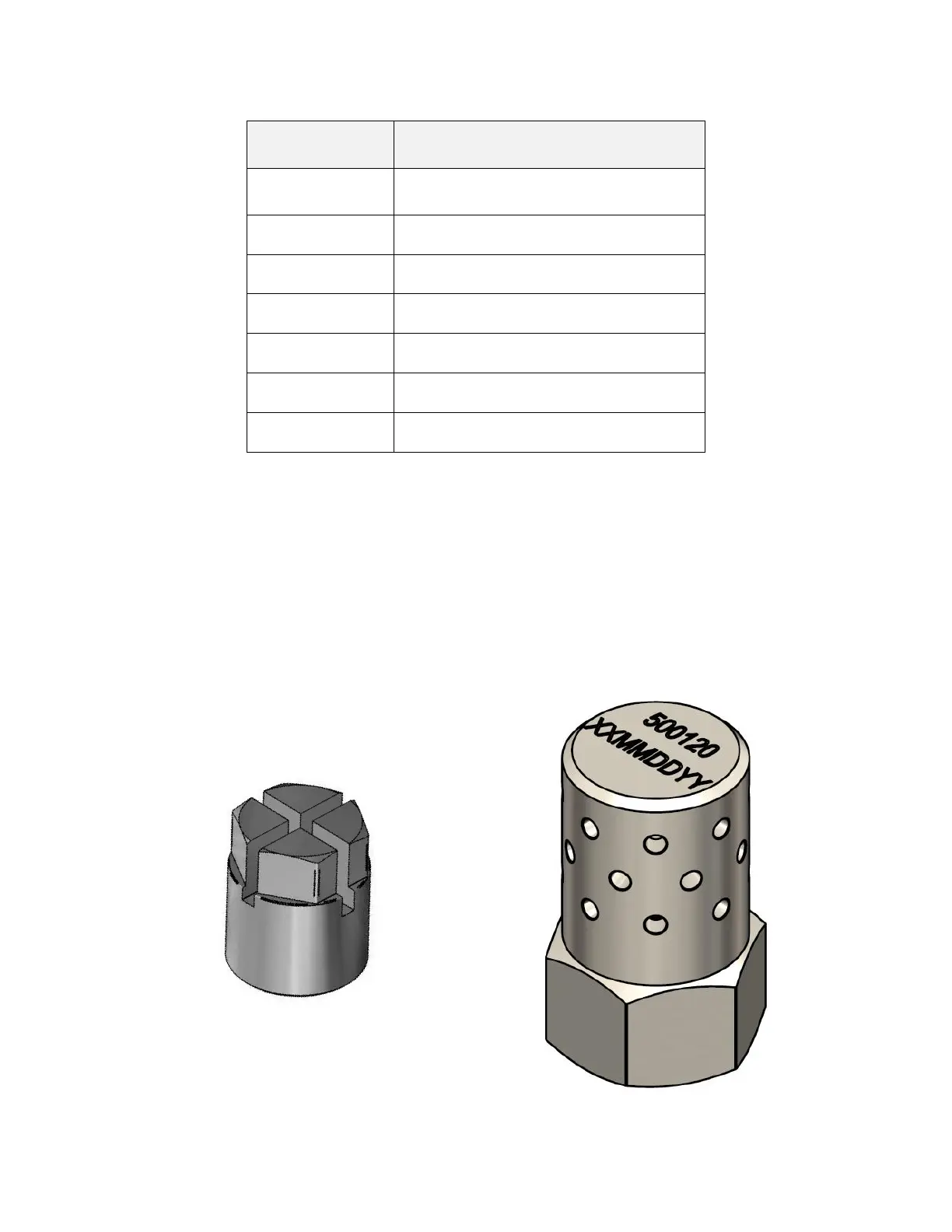

Small Nozzle

Medium Nozzle

Figure 8 – Nozzles
