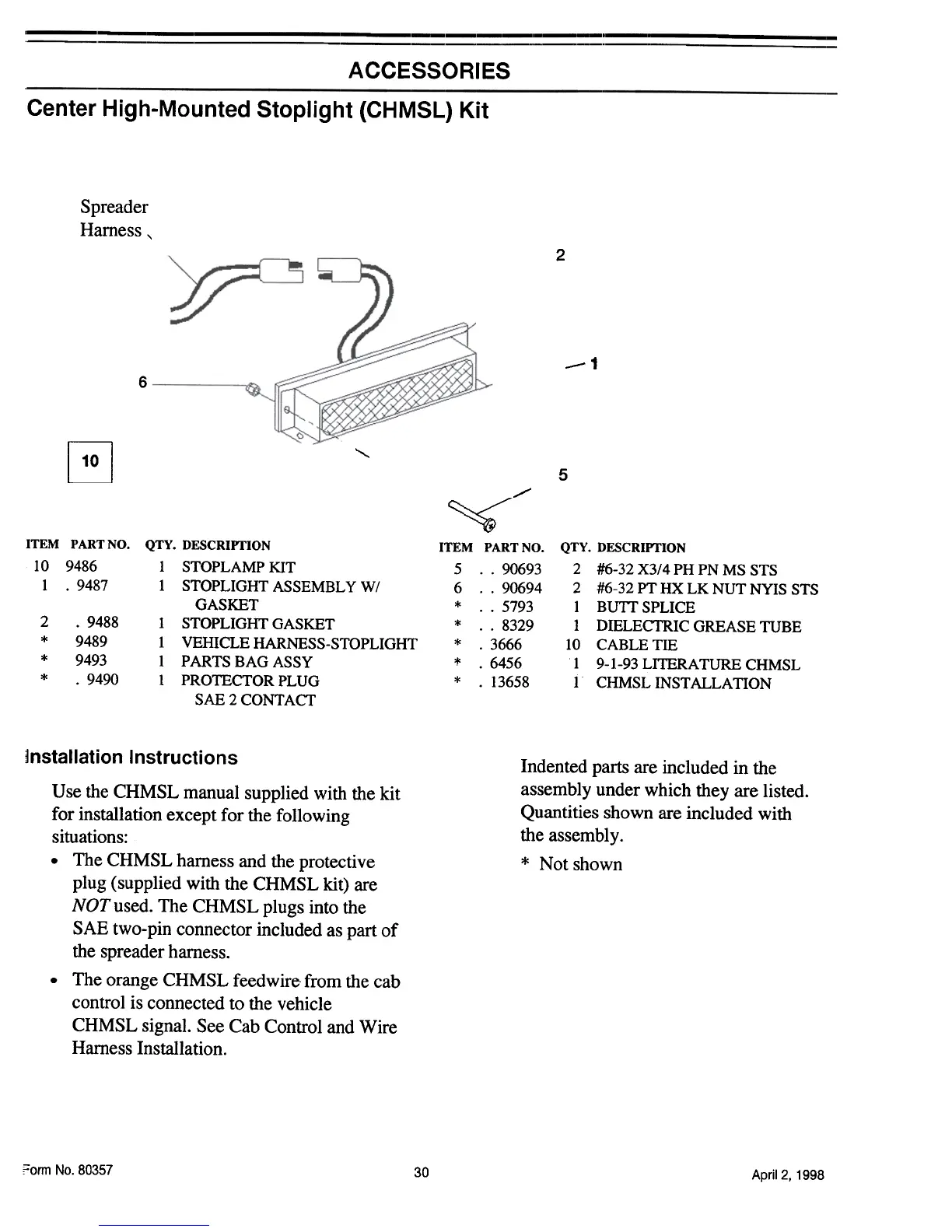

Fisher Hopper User Manual

ACCESSORIES
Center High-Mounted Stoplight (CHMSL) Kit
Spreader
Harness ,
2
-1
6
G
"
5
/
~
ITEM PART NO.
5 ..90693
6 ..90694
* ..5793
* ..8329
* .3666
* .6456
* .13658
ITEM PART NO.
10 9486
1 .9487
QTY. DESCRIYrION
1 STOPLAMP KIT
1 STOPLIGHT ASSEMBLY W/
GASKET
1 STOPLIGHT GASKET
1 VEHICLE HARNESS-STOPLIGHT
1 PARTS BAG ASSY
1 PROTECTORPLUG
SAE 2 CONT ACT
QTY. DESCRIPTION
2 #6-32 X3/4 PH PN MS STS
2 #6-32 PT HX LK NUT NYIS STS
I BUTT SPLICE
I DIELECTRIC GREASE TUBE
10 CABLE TIE
I 9-1-93 LITERATURE CHMSL
I CHMSL INST ALLA TION
2
*
*
*
.9488
9489
9493
.9490
Installation Instructions
Indented parts are included in the
assembly under which they are listed.
Quantities shown are included with
the assembly.
* Not shown
Use the CHMSL manual supplied with the kit
for installation except for the following
situations:
.The CHMSL harness and the protective
plug (supplied with the CHMSL kit) are
NOT used. The CHMSL plugs into the
SAE two-pin connector included as part of
the spreader harness.
.The orange CHMSL feedwire- from the cab
control is connected to the vehicle
CHMSL signal. See Cab Control and Wire
Harness Installation.
C=orm No.80357
30
April2, 1998
