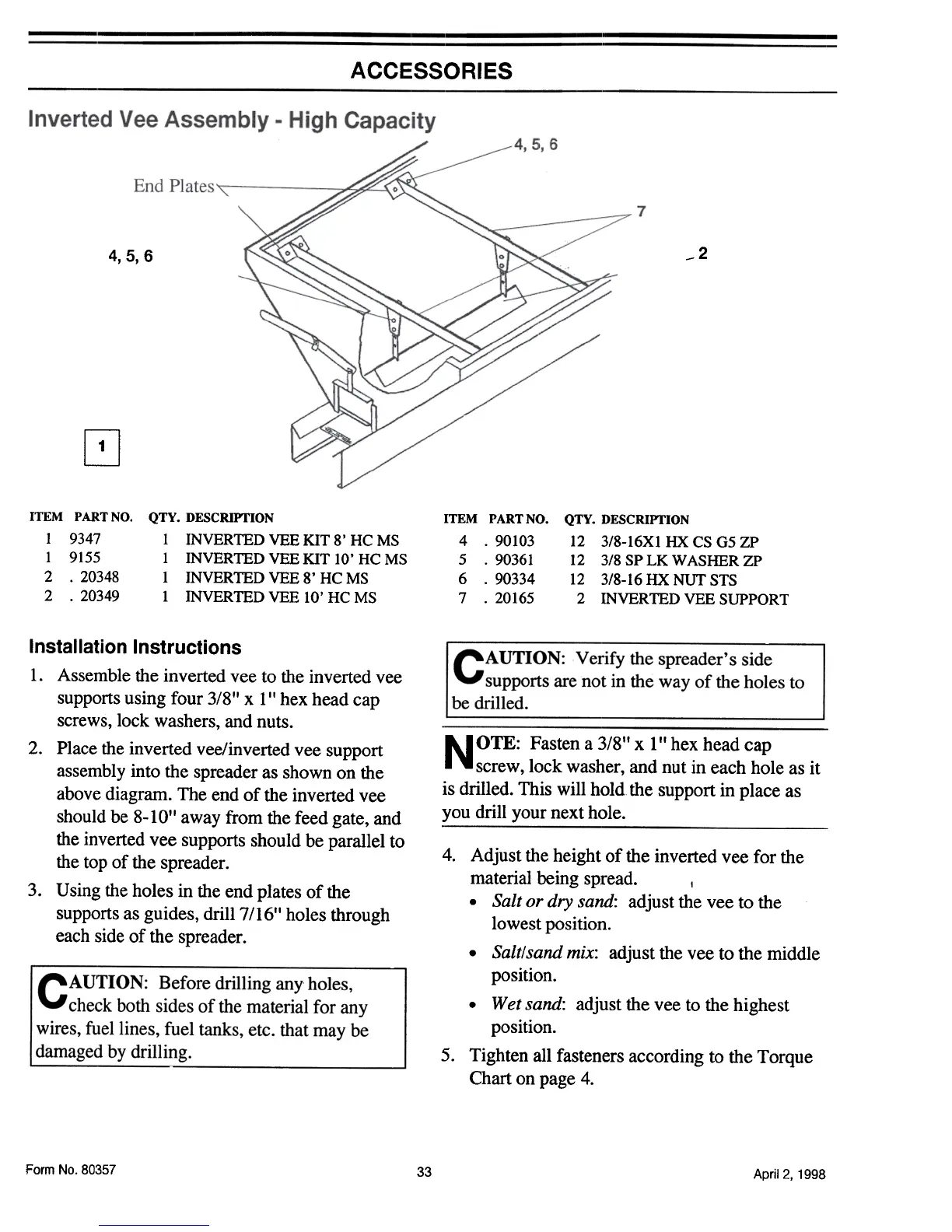

ACCESSORIES
-2
4,5,6
~
ITEM PART NO.
1 9347
1 9155
2 .20348
2 .20349
QTY. DESCRIYrION
I INVERTED VEE KIT 8' HC MS
I INVERTED VEE KIT 10' HC MS
I INVERTED VEE 8' HC MS
I INVERTED VEE 10' HC MS
ITEM PART NO.
4 .90103
5 .90361
6 .90334
7 .20165
QTY. DESCRIPTION
12 3/8-16X1 HX CS 05 ZP
12 3/8 SP LK WASHER ZP
12 3/8-16 HX NUT STS
2 INVER1ED VEE SUPPORT
N OTE: Fasten a 3/811 x 111 hex head cap
screw, lock washer, and nut in each hole as it
is drilled. This will hold the support in place as
you drill your next hole.
Installation Instructions
1. Assemble the inverted vee to the inverted vee
supports using four 3/8" x 111 hex head cap
screws, lock washers, and nuts.
2. Place the inverted vee/inverted vee support
assembly into the spreader as shown on the
above diagram. The end of the inverted vee
should be 8-10" away from the feed gate, and
the inverted vee supports should be parallel to
the top of the spreader.
3. Using the holes in the end plates of the
supports as guides, dril17/1611 holes through
each side of the spreader.
4. Adjust the height of the inverted vee for the
material being spread.
.Salt or dry sand: adjust the vee to the
lowest position.
.Salt/sand mix: adjust the vee to the middle
position.
.Wet sand: adjust the vee to the highest
position.
5. Tighten all fasteners according to the Torque
Chart on page 4.
Form No.80357
33
April 2, 1998
