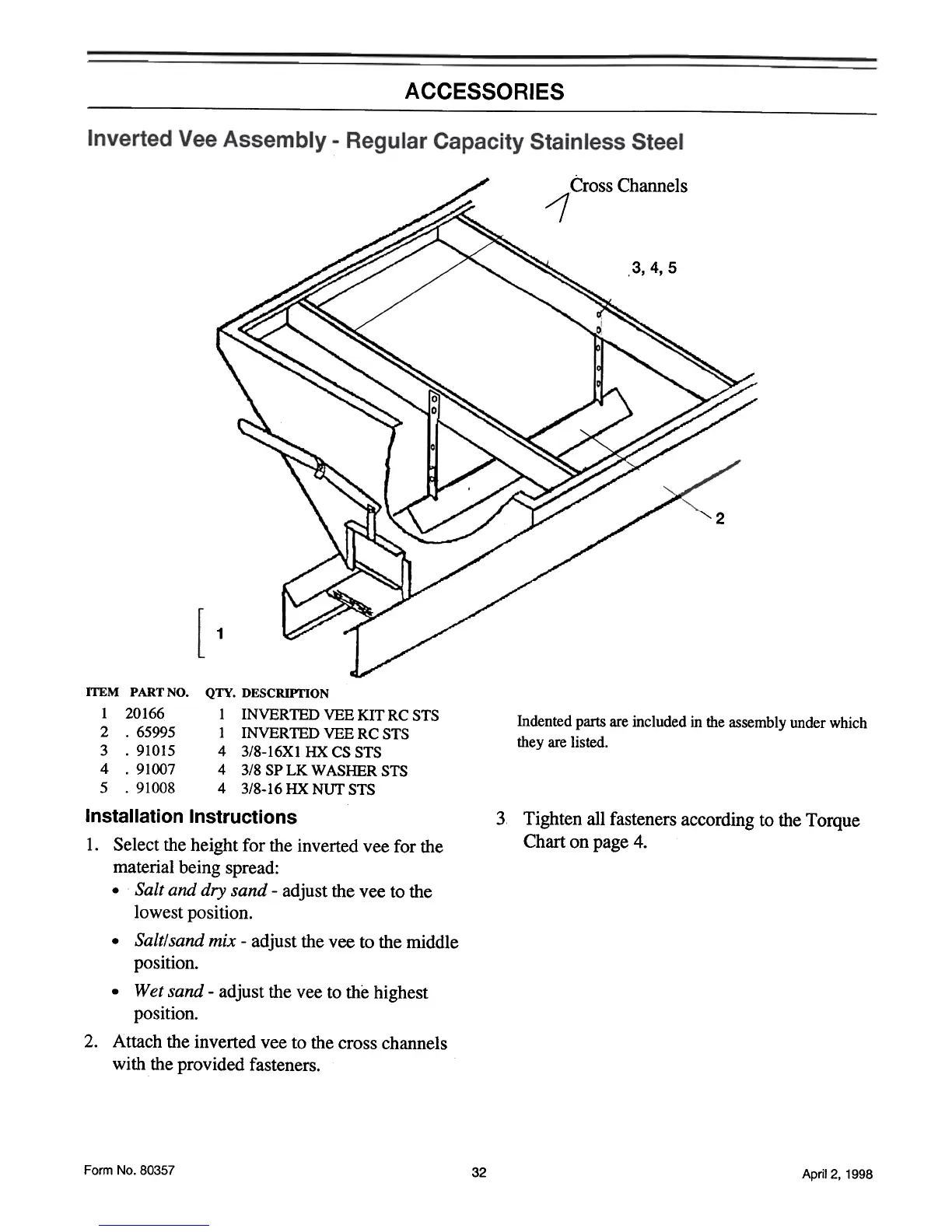

ACCESSORIES
.Cross Channels
~
,3,4,5
~
"'2
1
Indented parts are included in the assembly under which
they are listed.
3
Tighten all fasteners according to the Torque
Chart on page 4.
ITEM PART NO. QTY. DESCRIPTION
1 20166 1 INVERTEDVEEKITRCSTS
2 .65995 1 INVERTED VEE RC STS
3 .91015 4 3/8-16X1 HX CS STS
4 .91007 4 3/8 SPLKWASHER STS
5 .91008 4 3/8-16HXNUTSTS
Installation Instructions
1. Select the height for the inverted vee for the
material being spread:
.Salt and dry sand -adjust the vee to the
lowest position.
.Salt/sand mix -adjust the vee to the middle
position.
.Wet sand -adjust the vee to the highest
position.
2. Attach the inverted vee to the cross channels
with the provided fasteners.
Form No.80357
32
April 2, 1998
