FJDynamics AT2 Auto Steer System Hardware Installation Manual
4 Installation
4.1 Installing the Electric Steering Wheel
4.1.1 Components

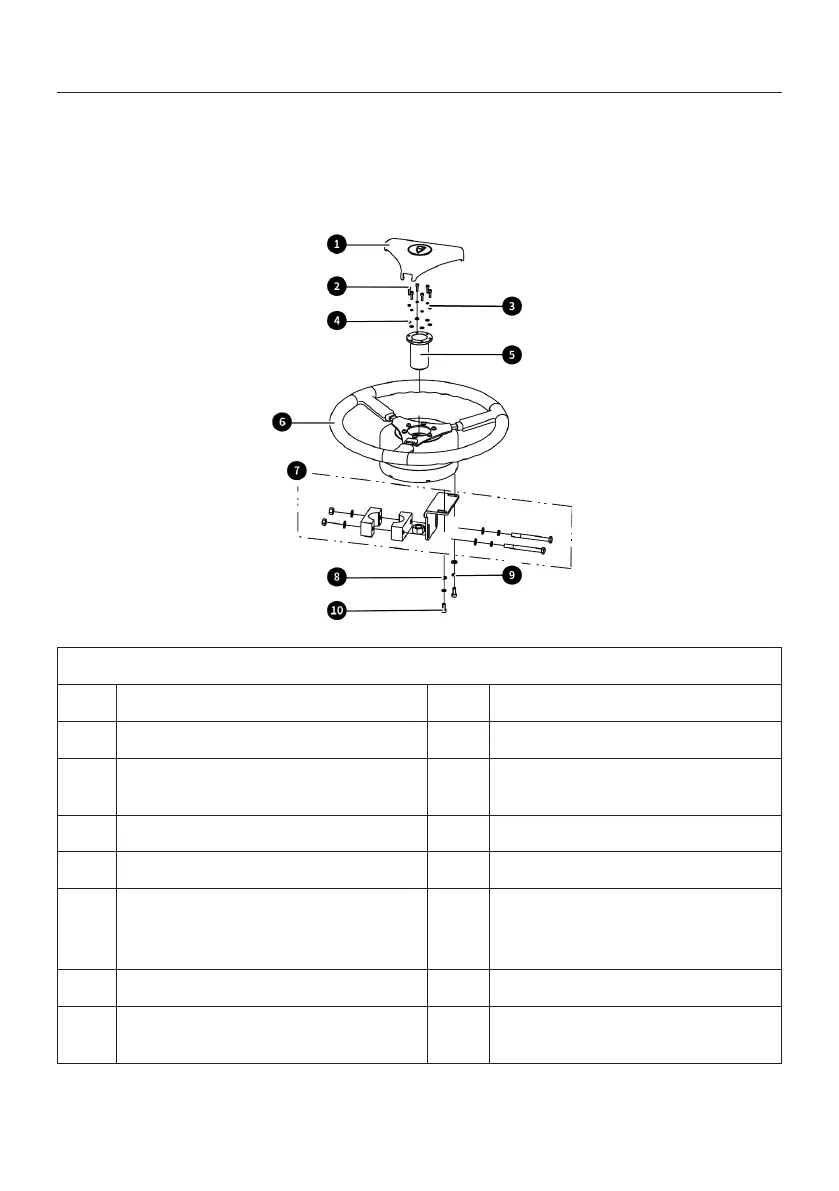

Electric Steering Wheel Assembly
No. Name Qty. Remarks
1 Dust cap 1
2
Hexagon socket head cap screw
M4×14
6
3 Spring washer M4 6
4 Plain washer M4 6
5 Splined sleeve 1
Packed in the accessory box
and selected according to the
machine model.
6 Electric steering wheel 1
7 2# motor bracket 1
Packed in the accessory box and
shown below.
