4.3 Installing the Attitude Sensor

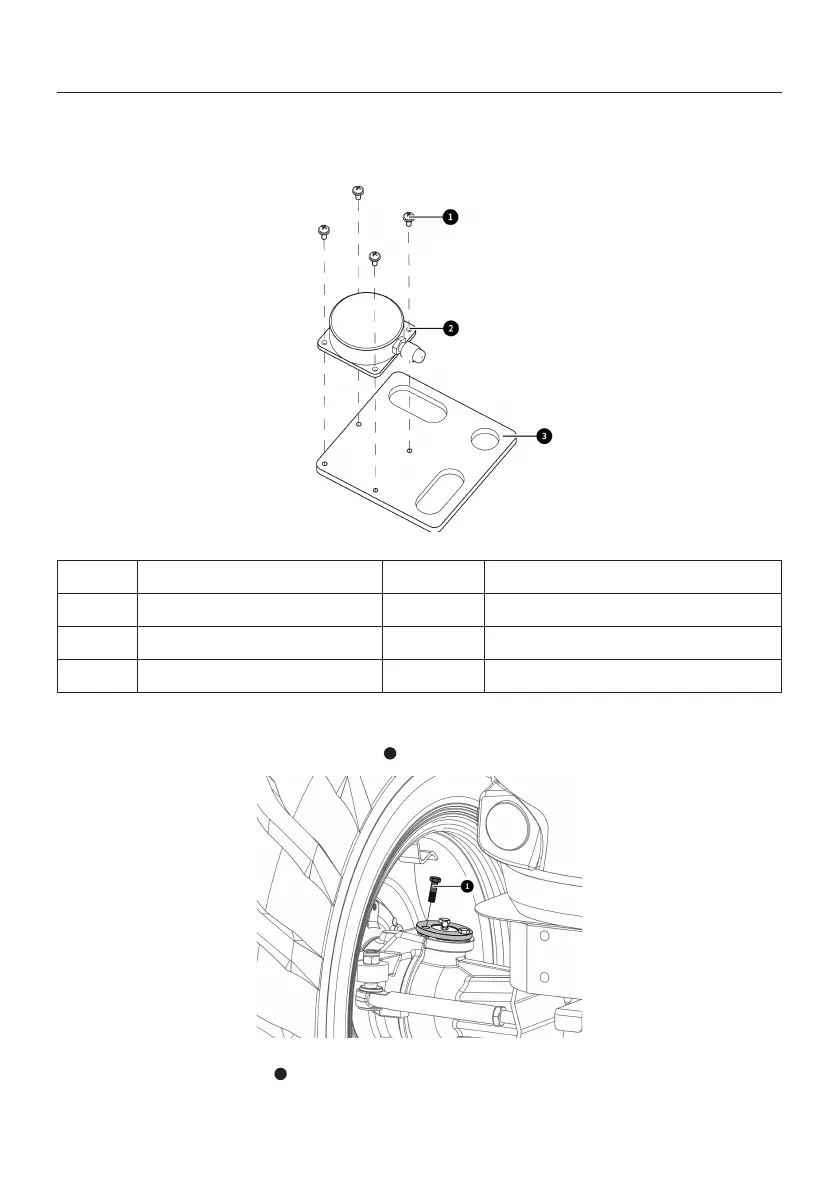

4.3.1 Components
No. Name Qty. Remarks
1 Assembly bolt M3×8 4
2 Attitude sensor 1
3 Attitude sensor bracket 1
1. Remove the front axle shaft cover bolts .
4.3.2 Installation Steps
1
2.Install the attitude sensor on the front axle, adjust the wiring harness, and install and
tighten the bolt removed in step 1.
1
