FJDynamics AT2 - Motor Bracket Components; Initial Steering Wheel Removal

© FJDynamics. All rights reserved. 8
FJDynamics AT2 Auto Steer System Hardware Installation Manual

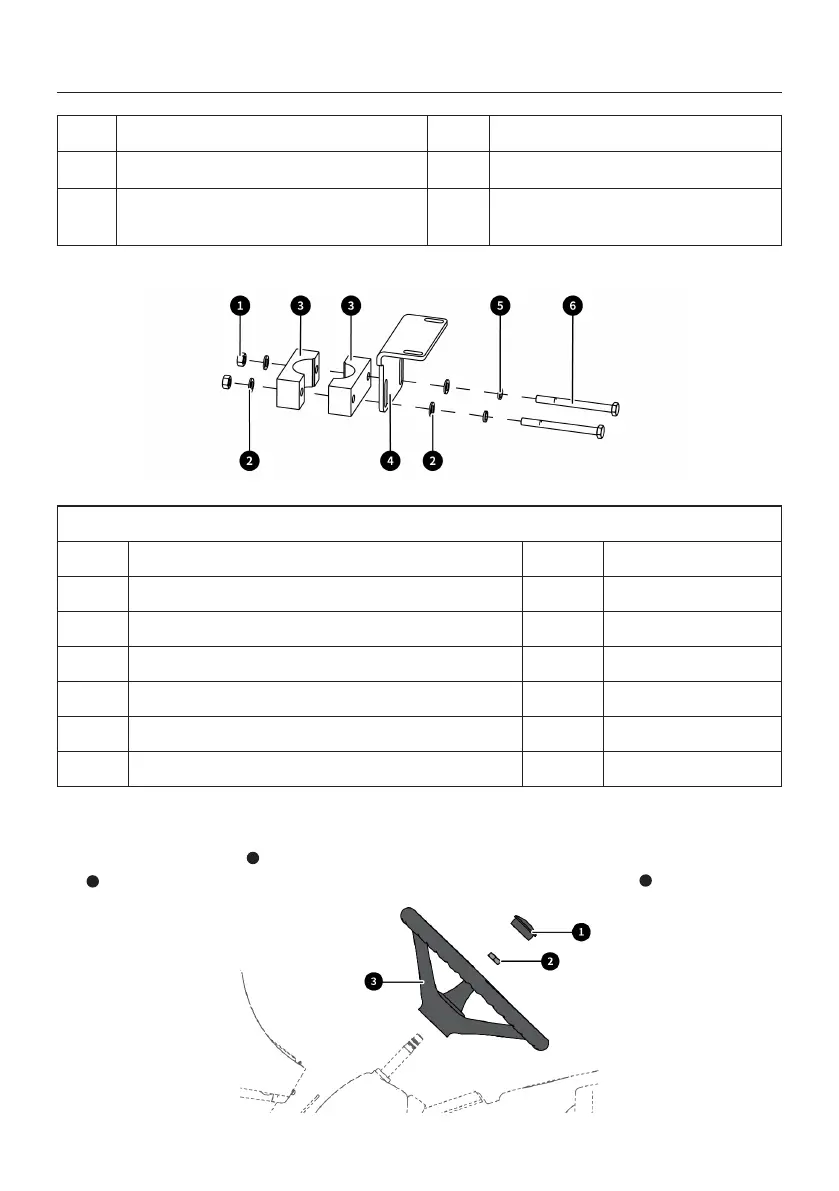

*An example of 2# motor bracket is shown below
4.1.2Installation Steps
2# Motor Bracket (Component 7 of the Electric Steering Wheel Assembly)
No. Name Qty. Remarks
1 Hexagon nut M8 2
2 Plain washer M8 4
3 Steering column hoop 2
4 Steering motor mounting bracket 1
5 Spring washer M8 2
6 Hexagon bolt M8×80 2
1. Remove the dusk cap of the original steering wheel on the machine, unscrew the lock
nut (keep the nut for later use), and pull out the original steering wheel .
1
2
3
8 Plain washer M6 2
9 Spring washer M6 2
10
Hexagon socket head cap screw
M6×16
2
