FJDynamics AT2 Auto Steer System Hardware Installation Manual

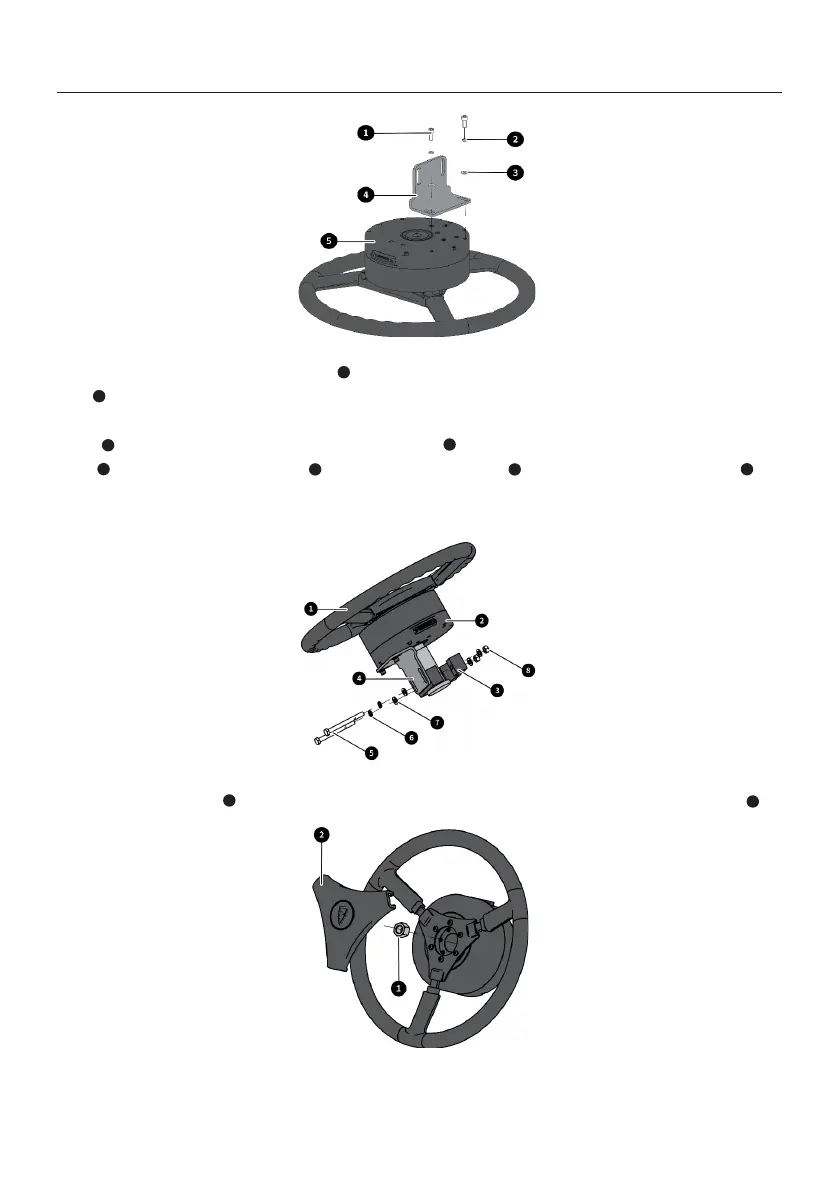

5. Install the electric steering wheel on the machine, and adjust the position of the motor
port to facilitate the wiring harness connection (it is recommended to adjust it to the
position convenient for connection with the control terminal). Install the steering column
hoop , adjust the position of the motor bracket , and tighten it with two M8×80 hexagon
bolts , two M8 spring washers , two M8 plain washers , and two M8 hexagon nuts to
ensure that the motor bracket is rmly installed and the outer ring does not rotate with the
bracket.
1
6
4
8
7
2
3
5
6. Install the lock nut removed in step 1 on the splined sleeve and install the dust cap .
1
2
