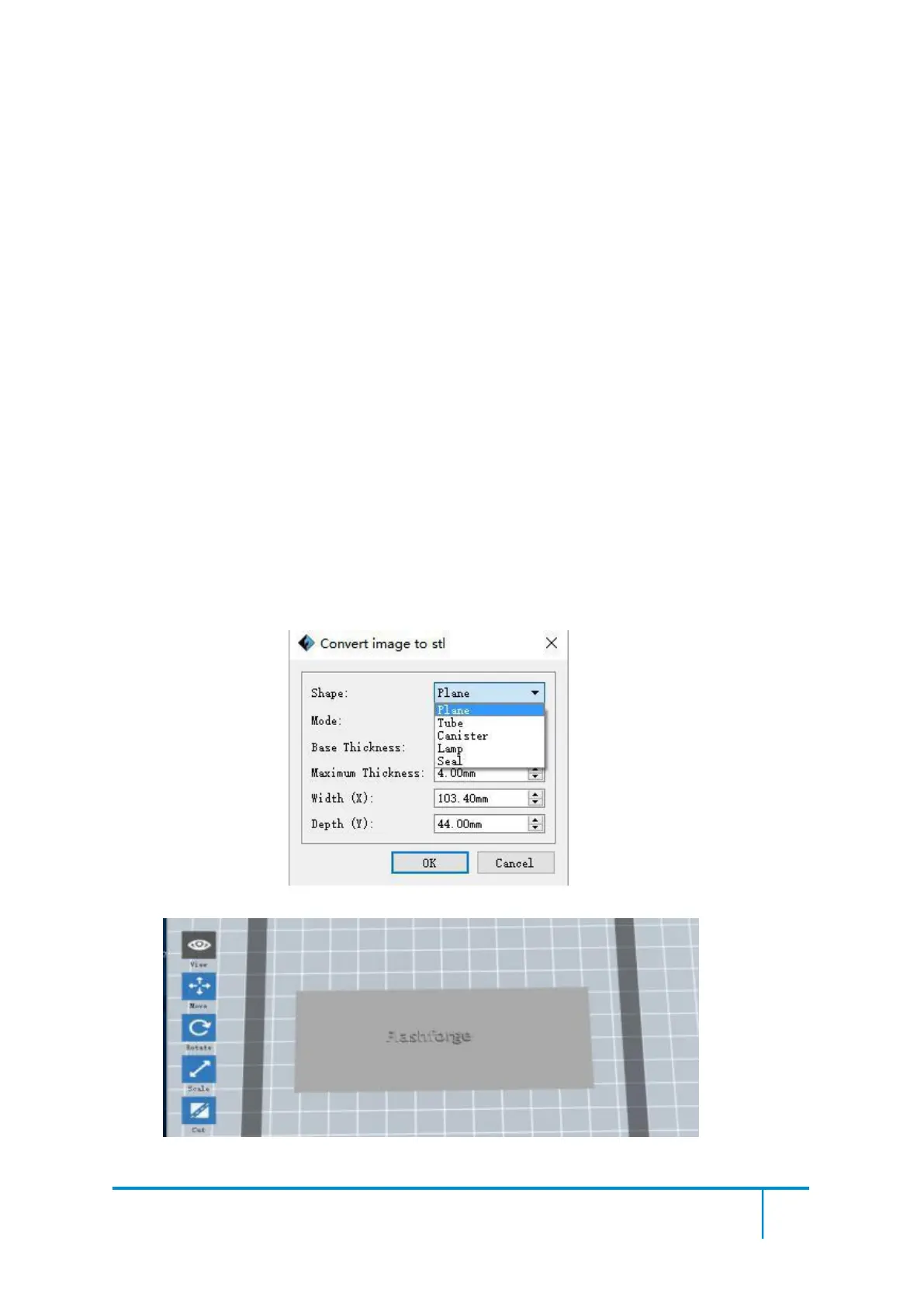

Loading a png, jpg, jpeg, bmp picture file into the FlashPrint. And the following
dialogue box(6-3) will pop up. The setting box includes settings for shape, mode,
maximum thickness, base thickness, bottom thickness,width, height, top diameter and
bottom diameter.
Shape: including plane, tube, canister and lamp.
Mode: including “darker is higher”and “lighter is higher”.
Maximum thickness: Z value of the model
Base thickness: The minimum raft thickness and the default value is 0.5mm
Width: X value of the model
Depth: Y value of the model
Bottom thickness: For tube, canister and lamp to set up bottom thickness
Top diameter: For tube, canister lamp and steal to set up the top diameter
Bottom diameter: For tube, canister, lamp and steal to set up the bottom diameter
6-4
Plane(6-5)
