Fleck 7000 - Extended Programming: Cycle Step Times; Extended Diagnostics Mode

Programming a Meter Delayed Regenerated System
Page 10
3. EXTENDED Programming Mode

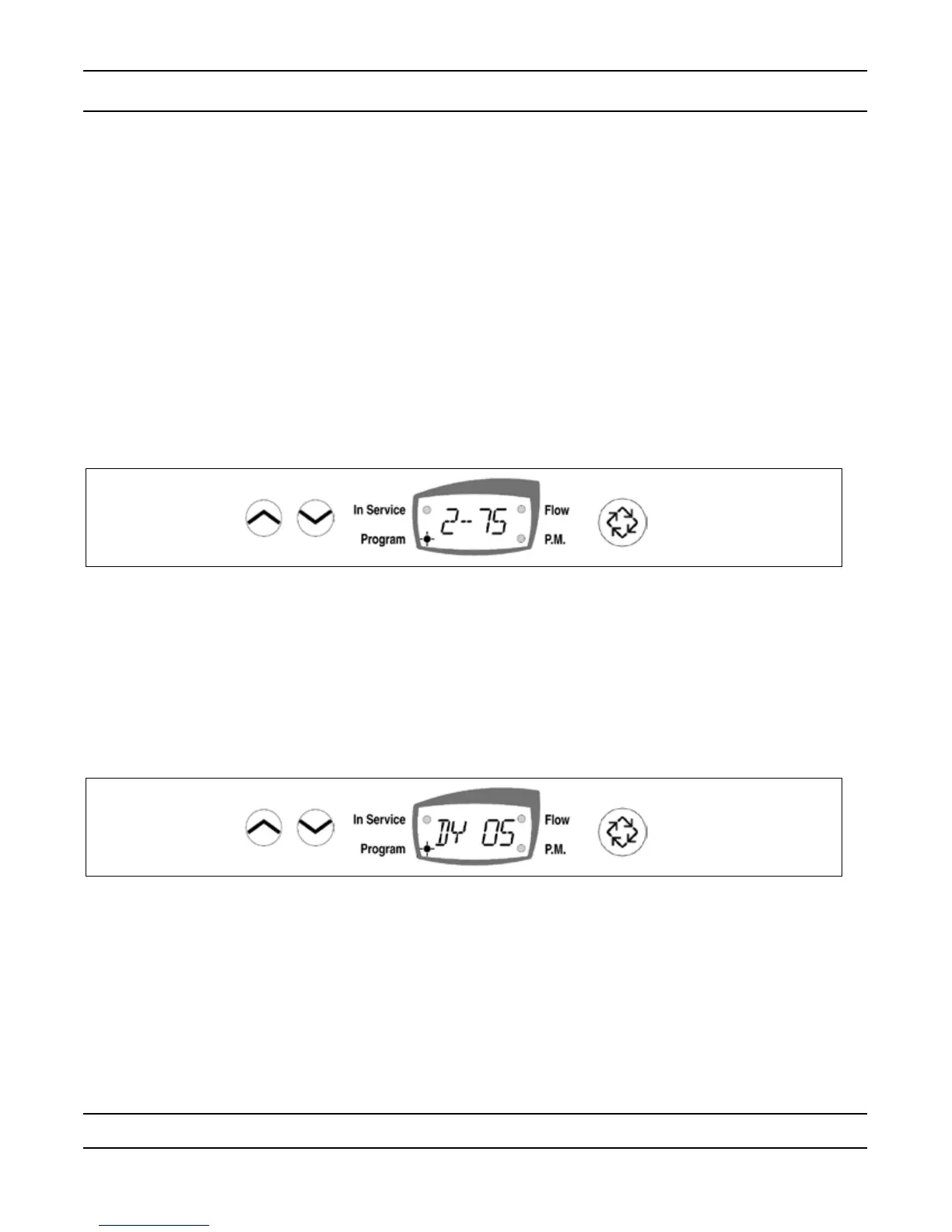

Regeneration Cycle Step Programming (Display Code 1 to 6)
Use this feature to program the Regeneration Cycle step times. The Regeneration Cycle Step being
programmed appears in the rst digit of the display. Each display is used to set the duration time in minutes of
that specic step in the regeneration cycle.
Example:
Cycle Step dF dFFF FLtr
1 10 = Backwash 12 = Fill 10 = Backwash
2 60 = Brine Draw 60 = Brine Making 10 = Rapid Rinse
3 5 = 2nd Backwash 10 = Backwash
 10 = Rapid Rinse 60 = Brine Draw
5 12 = Rell 5 = 2nd Backwash
6 10 = Rapid Rinse
— Use the Set Up and Set Down buttons to adjust this value.
— Press the Extra Cycle button to advance to the extended diagnostics.
4. EXTENDED Diagnostics Mode (Viewable Only)
(Dy xx) Display Code xx = days since last Regeneration
— Press the Extra Cycle button once to advance to the next diagnostics.
(xxxx) No Display Code xxxx = volume used since the last Regeneration.
(yyyy) No display code yyyy = Reserve Volume.
— Press the Extra Cycle button once to Exit Extended Setup Programming Mode.
Control Programming Complete
