Fleck 7000 - Valve Assembly; Valve Assembly Diagram

Page 22

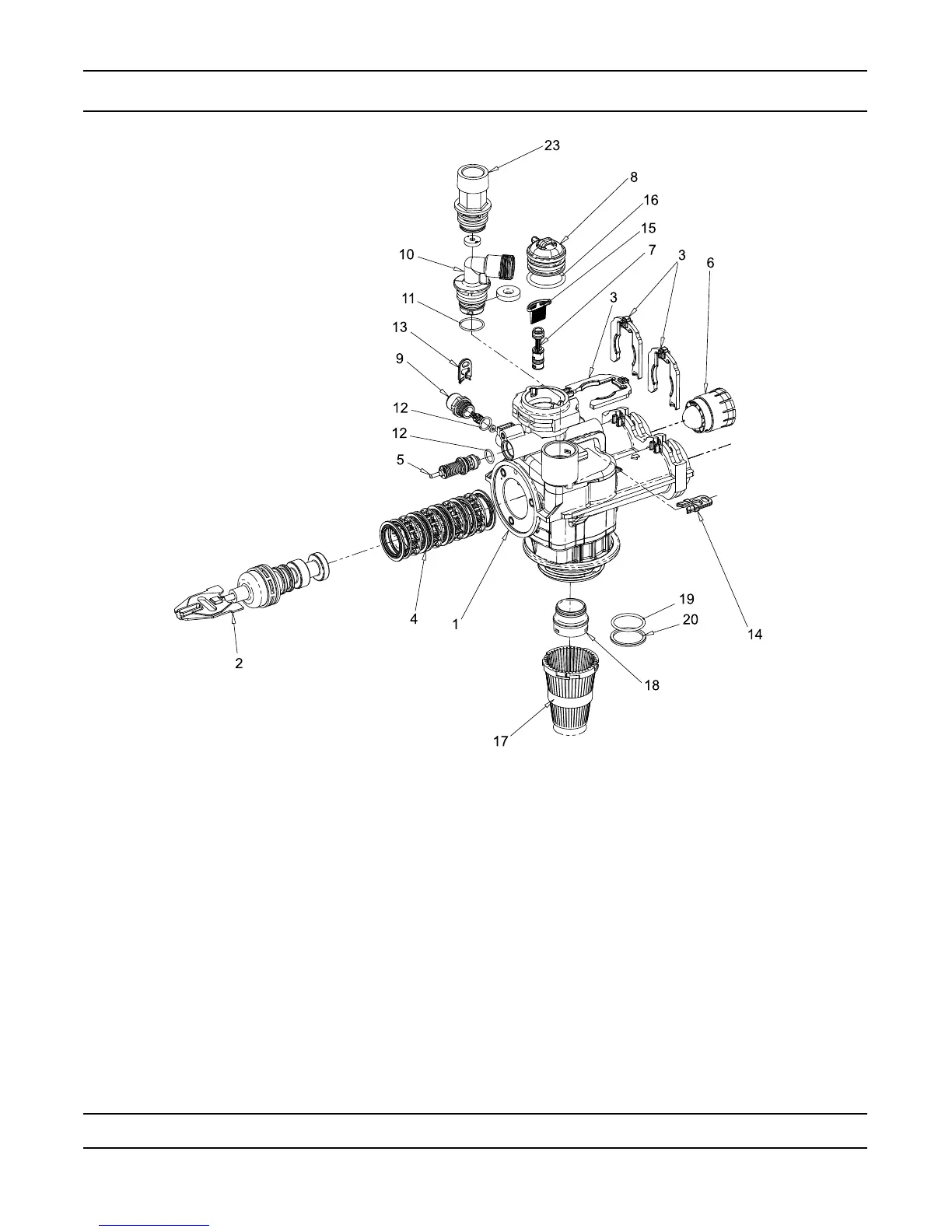

Valve Assembly
Item No. Quantity Part No. Description
1 ......................1 ...................... 61050 ........................ Valve Body Assy, 7000, 32mm Dist
2 ......................1 ...................... 6152-10 ................... Piston Assy, 7000, Softener, D/F 35GPM
6153-10 ................... Piston Assy, 7000, Softener, D/F 28GPM
6152-20 ................... Piston Assy, 7000, Filter 35GPM
3 ......................3 ...................... 40576 ........................ Clip, H, Plastic, 7000
4 ......................1 ...................... 61438 ........................ Seal & Spacer Kit, 7000, D/F
5 ......................1 ...................... 60016-01 ................... Brine Valve Assy, 7000, 560CD
6 ......................1 ...................... 40577 ........................ Turbine Meter Assy, 7000
7 ......................1 ...................... 61XXX ....................... Injector Assy, 7000
Part Number Injector Number
615-000 ............... #000
615-00 ................. #00
615-0 ................... #0
615-1 ................... #1
