FLENDER N-EUPEX - Spare Parts Drawing and Spare Parts List; Types a and ADS; Figure 11-1 Spare Parts Drawing for Types a and ADS

● Any special properties of the spare part, such as, for example:
– Temperature resistance
– Electrical insulation
– Operating fluid
– Use in potentially explosive atmospheres
● Quantity
11.2 Spare parts drawing and spare parts list
11.2.1 Types A and ADS




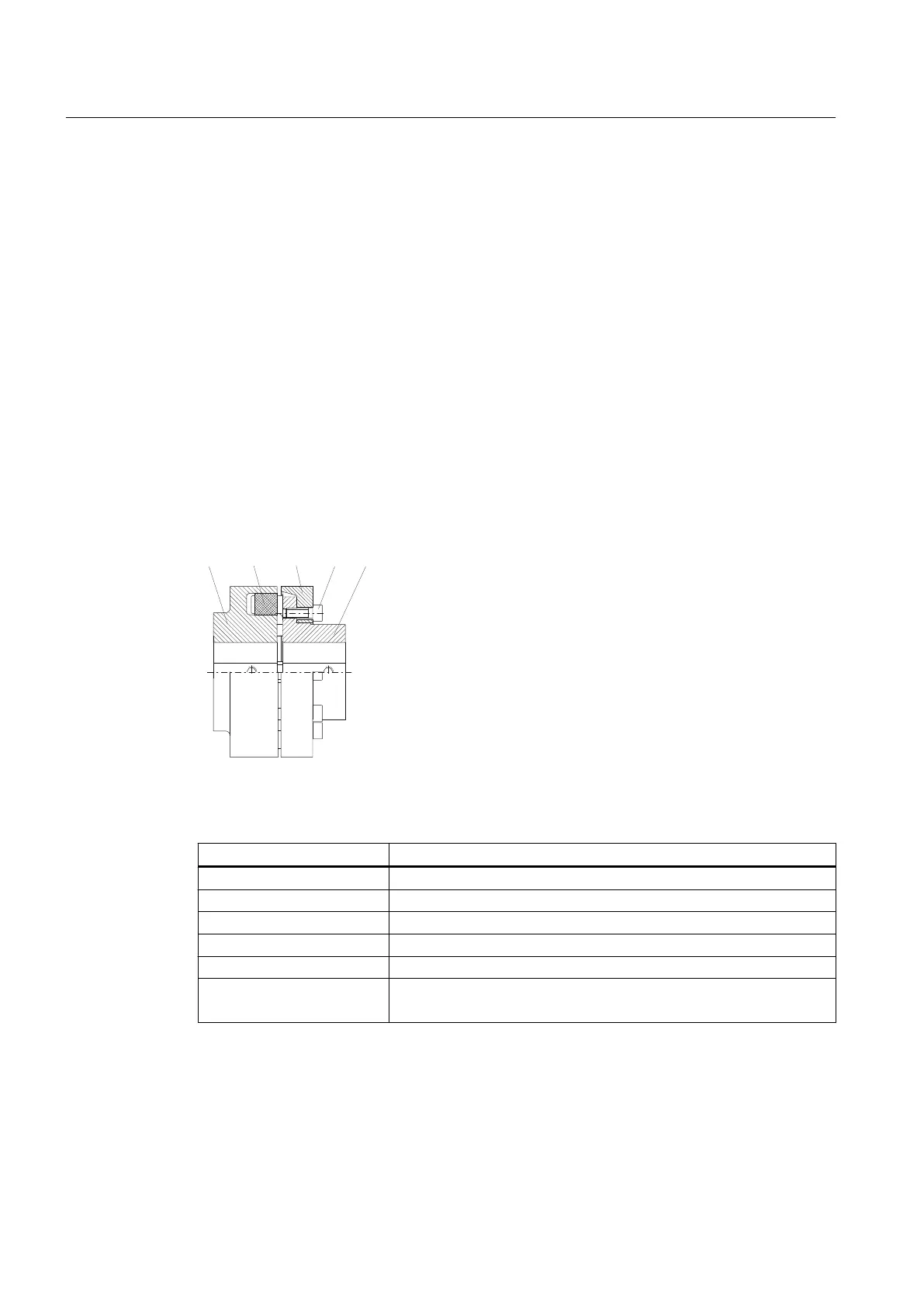

Figure 11-1 Spare parts drawing for types A and ADS
Table 11-1 Spare parts list for types A and ADS
Part number Designation
1 Coupling part 1
2 Coupling part 2
3 Coupling part 3
12 Flexible element
13 Cylinder-head screw
16 Cylindrical pin
only with type A sizes 560 to 710
Spare parts
11.2 Spare parts drawing and spare parts list
