FLENDER N-EUPEX - Type ADS; Figure A-3 Type ADS; A.1.3 Type ADS

A.1.3 Type ADS

88
3
1/1/
'
1'
'$
'
1'
6
1 Coupling part 1
2 Coupling part 2
3 Coupling part 3

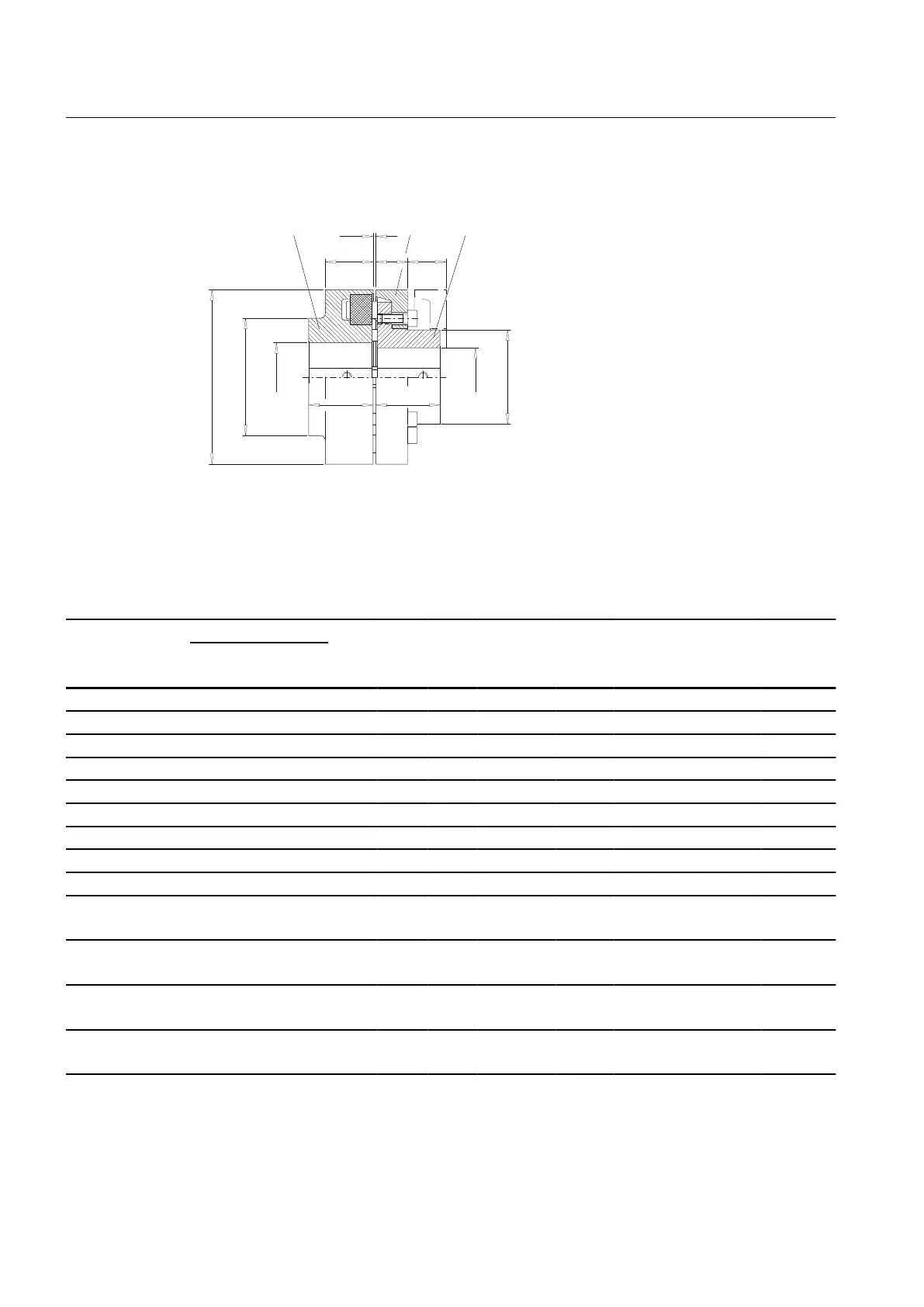

Figure A-3 Type ADS
Table A-3 Speeds, geometry data and weights of type ADS
Size Speed
n
max.
rpm
Maximum bore
1)
DA
mm
ND1
mm
ND2
mm
NL1 / NL2
mm
S
mm
U1
mm
U2
mm
P
mm
Weight
2)
m
kg
D1
mm
D2
mm
118 5 300 48 38 118 86 62 40 2 … 4 34 20 33 3.5
135 5 100 55 45 135 100 75 50 2 … 4 36 23 38 5.5
152 4 900 60 50 152 108 82 55 2 … 4 36 28 43 7.7
172 4 250 65 58 172 118 95 60 2 … 6 41 28 47 10.5
194 3 800 75 65 194 135 108 70 2 … 6 44 30 50 15
218 3 400 85 75 218 150 122 80 2 … 6 47 32 53 21
245 3 000 90 85 245 150 138 90 2 … 6 52 38 61 28
272 2 750 100 95 272 165 155 100 3 … 8 60 42 69 40
305 2 450 110 105 305 180 172 110 3 … 8 65 42 73 50
340 2 150 120 100
120
340 200 165
200
125 3 … 8 70 47 78 72
73
380 2 000 140 110
140
380 230 180
230
140 3 … 8 74 51 83 100
104
430 1 700 150 120
150
430 250 200
250
160 3 … 8 78 56 88 135
140
472 1 550 160 130
160
472 265 215
265
180 5 … 10 86 64 99 174
180
Technical data
A.1 Speeds, geometry data and weights
N-EUPEX / N-EUPEX DS 3100en
60 Operating Instructions 10/2017
