FLENDER N-EUPEX - Technical data; Speeds, geometry data and weights

Technical data
A
A.1 Speeds, geometry data and weights
In this section you can find dimension drawings and technical data for N‑EUPEX and
N‑EUPEX DS couplings of the following types:
● Type A (Page 57)
● Type B (Page 59)
● Type ADS (Page 60)
● Type BDS (Page 61)
A.1.1 Type A

6
'
1'
'$
'
1'
88
3
1/1/
1 Coupling part 1
2 Coupling part 2
3 Coupling part 3

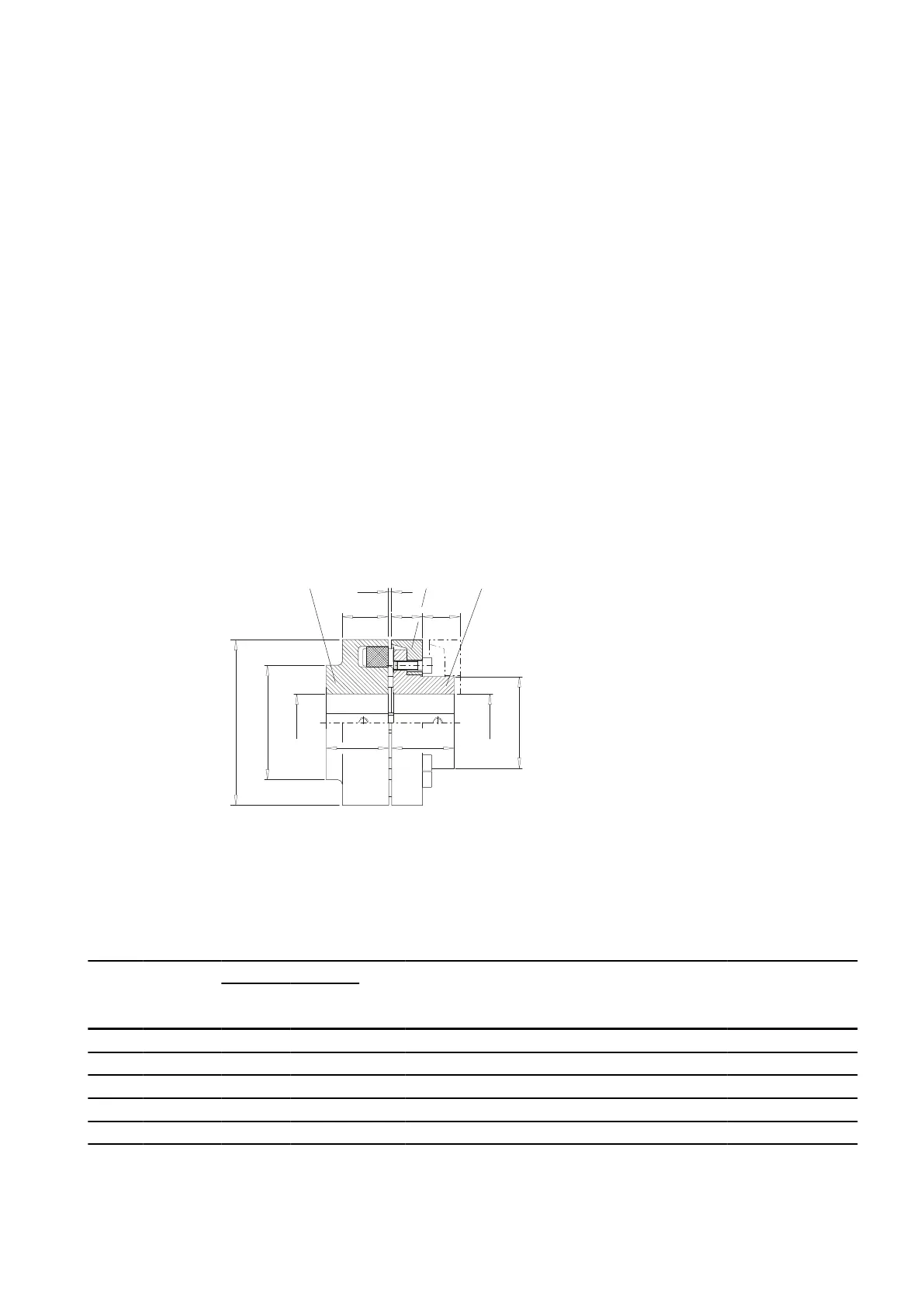

Figure A-1 Type A
Table A-1 Speeds, geometry data and weights of type A
Size Speed
n
max
rpm
Maximum bore
1)
DA
mm
ND1
mm
ND2
mm
NL1 / NL2
mm
S
mm
U1
mm
U2
mm
P
mm
Weight
2)
m
kg
D1
mm
D2
mm
110 5 300 48 38 110 86 62 40 2 … 4 34 20 33 3
125 5 100 55 45 125 100 75 50 2 … 4 36 23 38 4.8
140 4 900 60 50 140 100 82 55 2 … 4 34 28 43 6
160 4 250 65 58 160 108 95 60 2 … 6 39 28 47 8.4
180 3 800 75 65 180 125 108 70 2 … 6 42 30 50 12
