FOM16 Installation Description
FOM16-V2.0-20021114
-2-
2. Mechanical Installation
2.1 FOM16 is a standard 1 RU unit, which can be mounted on 19 or 23-inch rack. It also works as
a desktop unit. The front view and the rear view are shown in Fig.1 and Fig.2, respectively.
2.2 In order to fit for different size of racks, the brackets can be fastened by means of screws to the
two side walls of the case, as shown in Fig. 3.
2.3 After attaching the brackets, FOM16 is ready for installation in the rack. Fasten the brackets to
the side rails of the rack by means of four screws, two on each side.

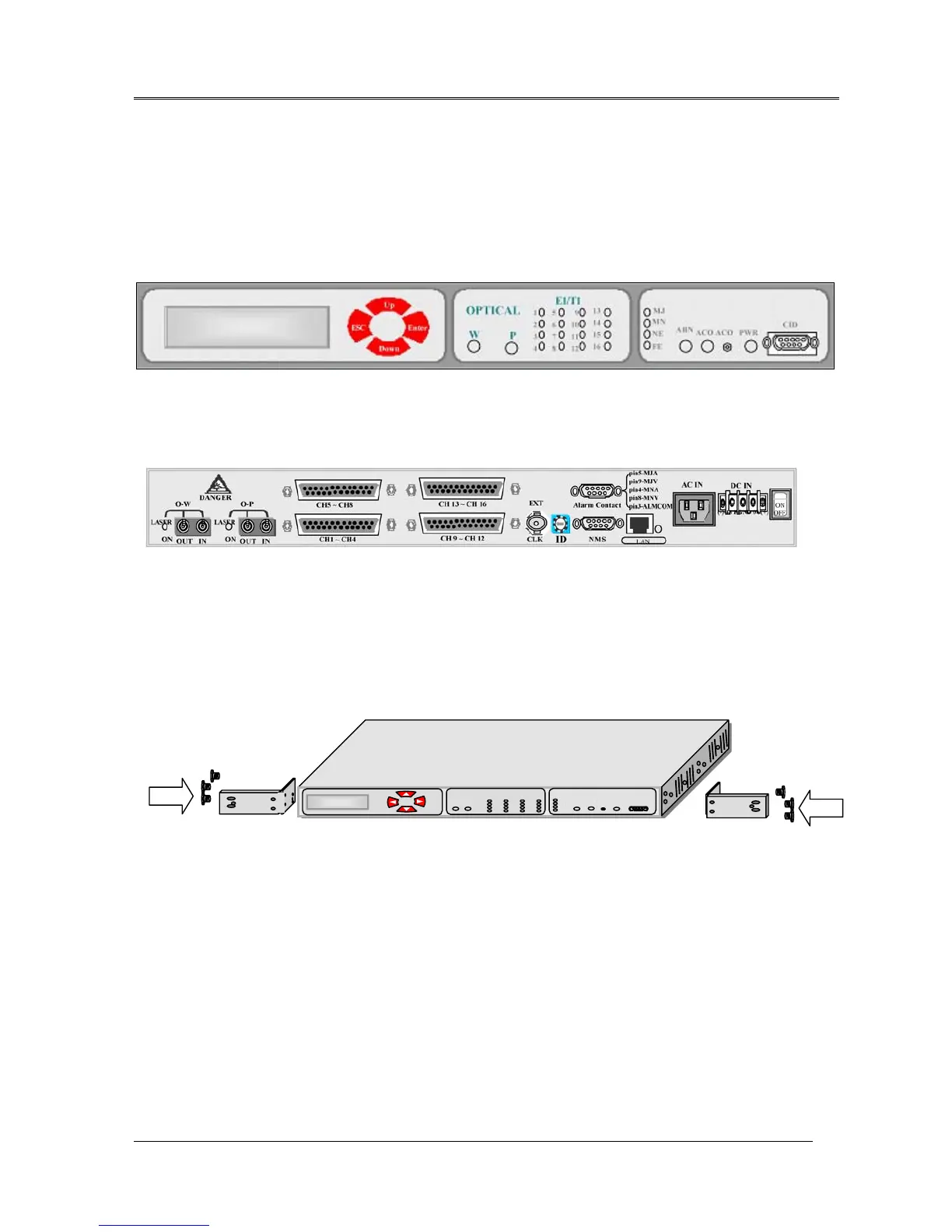

Fig. 1 FOM16 Front View
Fig.2 FOM16 Rear View
Fig.3 23-inch rack mountable (I)
