FLUXUS G80x 6 Installation of FLUXUS G800
34 UMFLUXUS_G8V4-6-1EN, 2018-10-10
6.7 Connection of the Outputs
• Remove the cable gland for the connection of the outputs (see Fig. 6.2).
• Prepare the output cable with an M20 cable gland.
• Push the output cable through the cap nut, the compression part and the basic part of the cable gland (see Fig. 6.9).
• Insert the output cable into the upper housing.
• Screw the gasket ring side of the basic part into the upper housing.
• Fix the cable gland by screwing the cap nut onto the basic part.
• Connect the leads of the output cable to the terminals of the transmitter (see Fig. 6.10, Fig. 6.3 and Tab. 6.7).

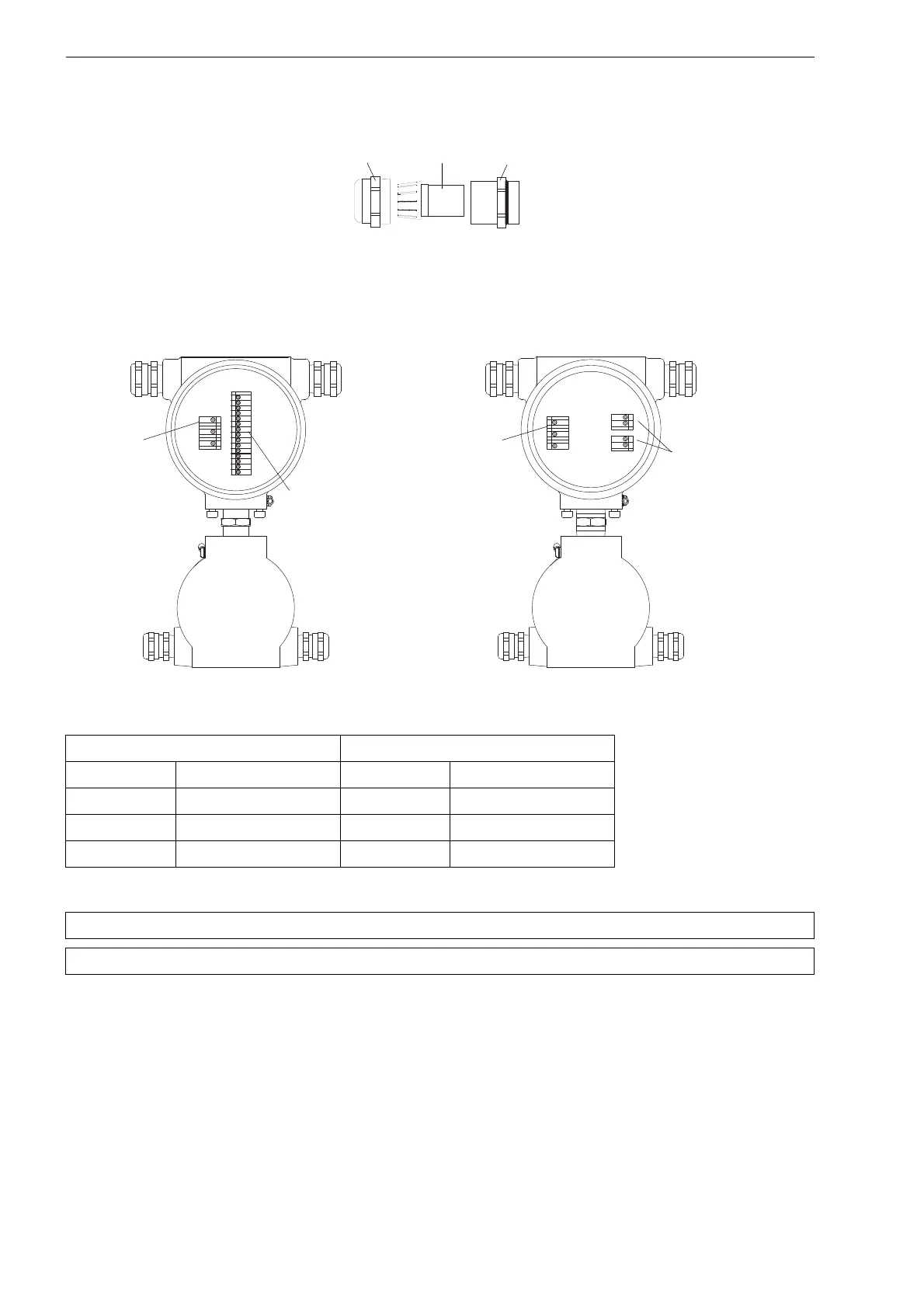

Fig. 6.9: Cable gland
Fig. 6.10: Terminals for the connection of the power supply and the outputs
Tab. 6.6: Connection of the power supply
AC DC
terminal connection terminal connection
PE earth PE earth
N neutral L+ +
L1 phase 100…240 V L- -
Attention! Observe the "Safety Instructions for the Use in Explosive Atmosphere" (see document SIFLUXUS).
Attention! The outputs can only be connected to a low voltage circuit (max. 30 V AC or 42 V DC against earth).
cap nut compression part basic part
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
1-
2+
5-
6+
PE
N/L-
L1/L+
L1(+)
N(-)
PE
FLUXUS G800C24, LC24, G800
FLUXUS G800P (transmitter with frequency output):
outputs
FLUXUS G800, G800L, G800LP,
FLUXUS G800P (transmitter without frequency output):
power supply
(not intrinsically
safe)
power
supply
outputs
(intrinsically safe)
