4 Description of the Transmitter FLUXUS G80x
UMFLUXUS_G8V4-6-1EN, 2018-10-10 17
4 Description of the Transmitter
4.1 FLUXUS G800
The transmitter consists of 2 housings. The command panel is on the front side of the upper housing. The keys are oper-
ated by a magnetic pen when the housing is closed.
The terminals for the connection of the transducers are in the lower housing, the terminals for the connection of the out-
puts and of the power supply on the back side of the upper housing (see Fig. 4.1).
4.2 FLUXUS G801
The transmitter consists of 1 housing. The command panel is on the front side of the housing. The keys are operated by a
magnetic pen with the housing closed.
The terminals for the connection of transducers, outputs and power supply are on the back side of the housing (see Fig.
4.2).

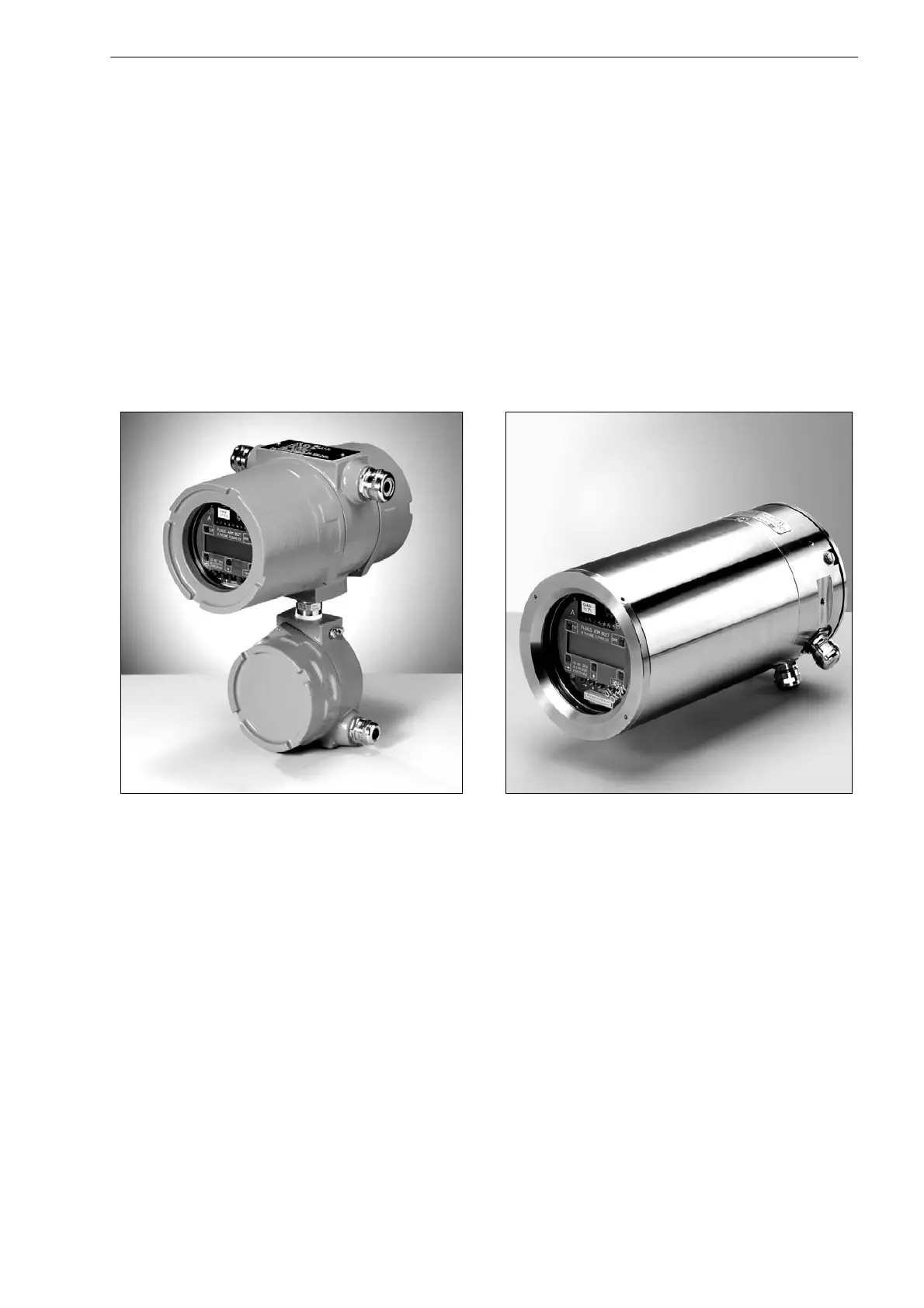

Fig. 4.1: FLUXUS G800 Fig. 4.2: FLUXUS G801
