FLUXUS G80x 6 Installation of FLUXUS G800
38 UMFLUXUS_G8V4-6-1EN, 2018-10-10
6.8 Connection of the Serial Interface
Because the upper housing has to be opened, the RS232 interface can only be connected outside of an explosive atmo-
sphere (see Fig. 6.1).
• Insert the RS232 adapter into the socket in such way that the colored lead of the cable is on the marked side of the socket.
• Connect the RS232 cable to the RS232 adapter.
• Connect the RS232 cable to the serial interface of the PC. If the RS232 cable cannot be connected to the PC, use the
RS232/USB adapter.
The RS232 adapter, the RS232 cable and the RS232/USB adapter are part of the serial data kit (optional).
The transmitter can also be equipped with an RS485 interface (optional). For the connection see section 6.7.
For further information on the data transmission see chapter 14.
6.9 Sensor Module (SENSPROM)
The sensor module contains important transducer data for the operation of the transmitter with the transducers. It is con-
nected to the connector strips above the display of the transmitter.
If transducers are replaced or added, the sensor module also has to be replaced or added.
• Insert the sensor module into the socket of the measuring channel to which new transducers have to be connected.
Attention! Observe the "Safety Instructions for the Use in Explosive Atmosphere" (see document SIFLUXUS).

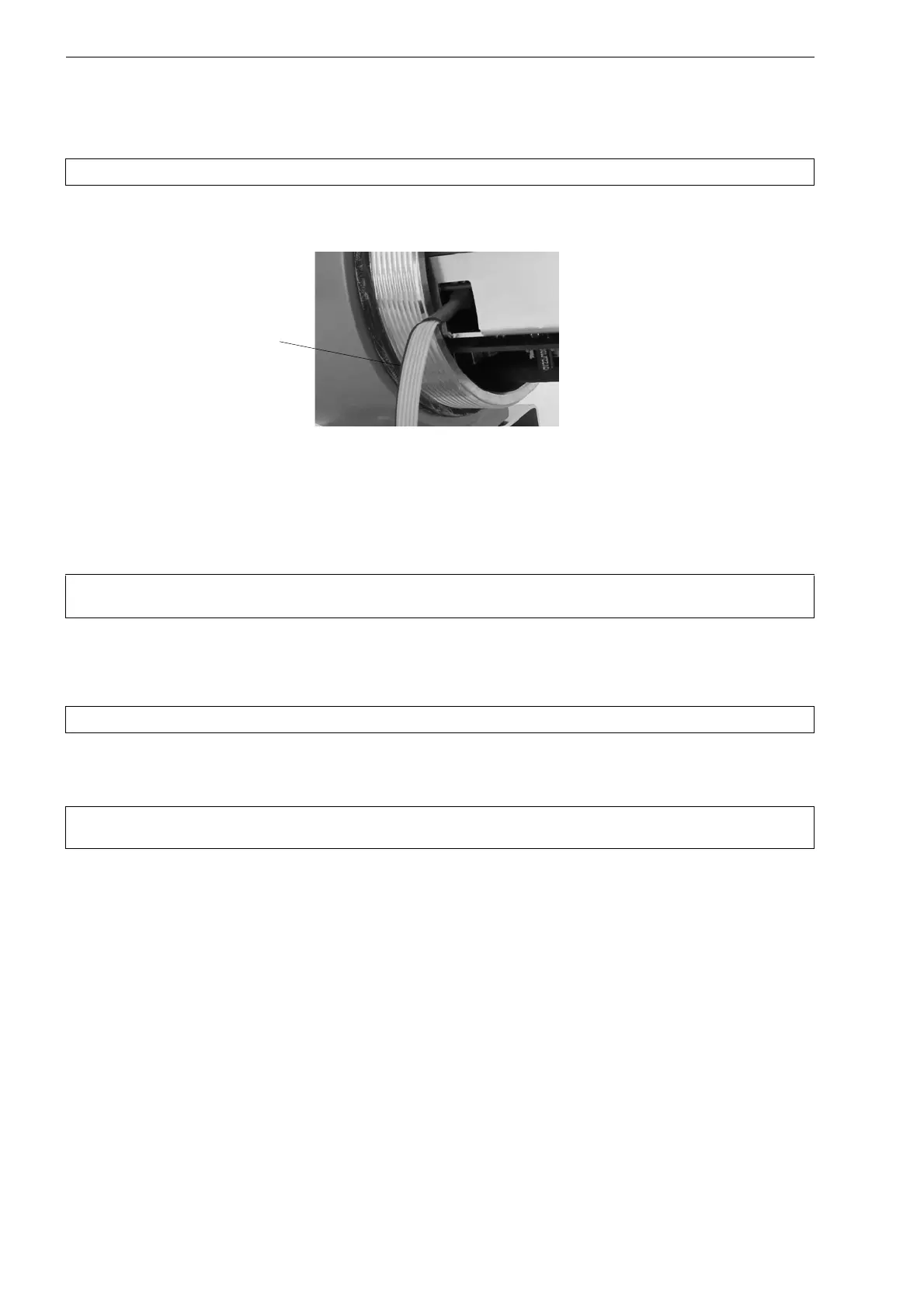

Fig. 6.1: RS232 interface of FLUXUS G800
Note! If a problem occurs when the RS232/USB adapter is used for the connection, contact your system
administrator.
Attention! Observe the "Safety Instructions for the Use in Explosive Atmosphere" (see document SIFLUXUS).
Note! The serial number of sensor module and transducer have to be identical. A wrong or incorrectly con-
nected sensor module will lead to incorrect measured values or to a measurement failure.
colored lead of the RS232
adapter cable
