FT-112(D) Panel Weighing Indicator, Technical Manual, Rev.1.0.0, May 2019 Page 99 of 170
S ANE Free setpoint of absolute net weight

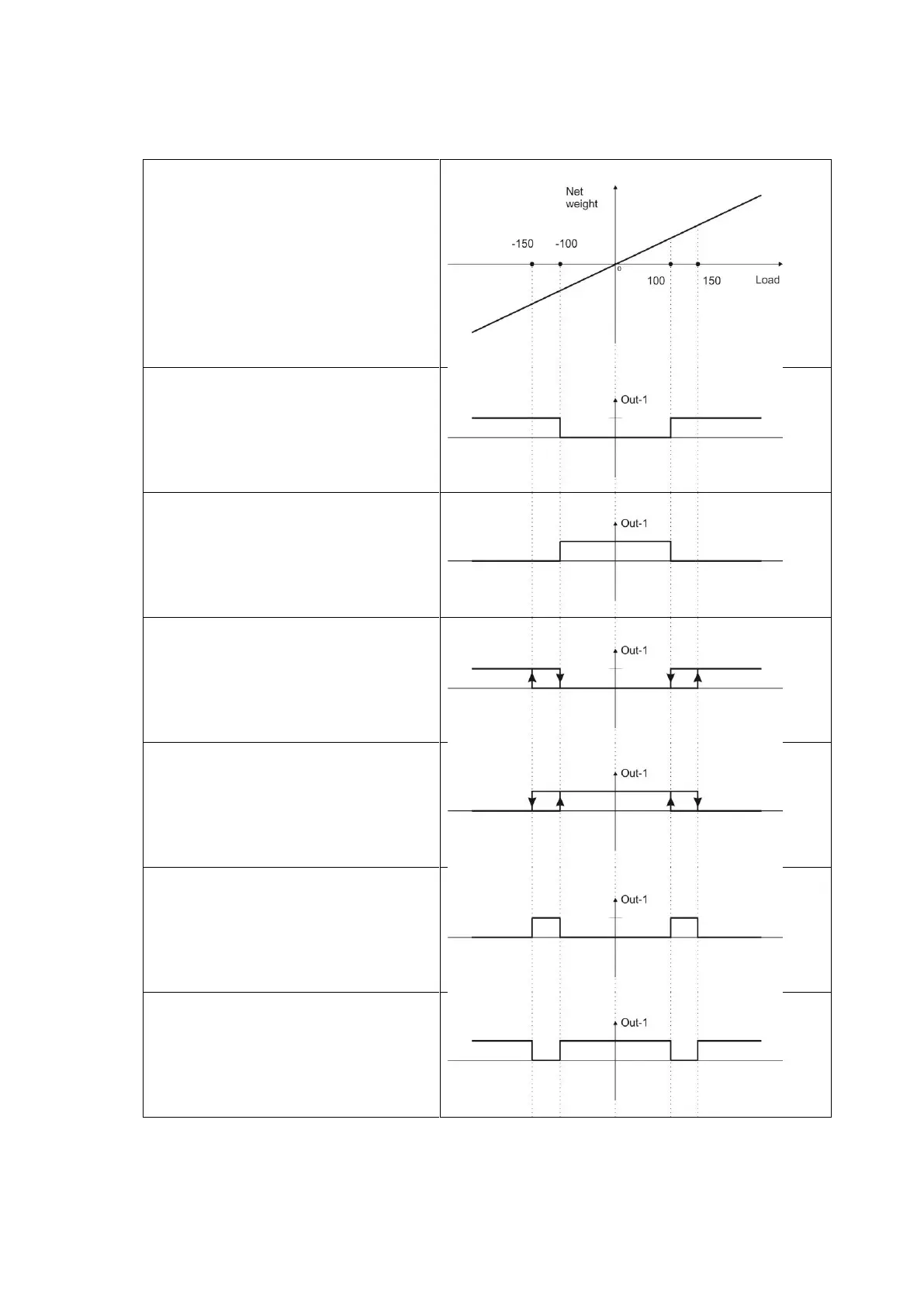

The digital output is activated with comparing the set point value and absolute net weight value as shown
below.
Example:
if SP1
SP1
LOW
SP1
HIGH
= 100 kg or
= 100 kg
= 150 kg.
BAS-HI Basic, active high
Output is high if absolute net weight is
heavier than setpoint.
(Default)
BAS-LO Basic, active low
Output is low if absolute net weight is
heavier than setpoint.
THR-HI Threshold, active high
Output goes to high if absolute net
weight is heavier than setpoint high.
Returns the low if the weight is less than
setpoint low.
THR-LOW Threshold, active low
Output goes to low if absolute net weight
is heavier than setpoint high. Returns
the high if the weight is less than
setpoint low.
VIN-HI Window, active high
Output goes to high if absolute net
weight is between setpoint high and
setpoint low.
VIN-LOW Window, active low
Output goes to low if absolute net weight
is between setpoint high and setpoint
low.
