S GRO Free setpoint of gross weight

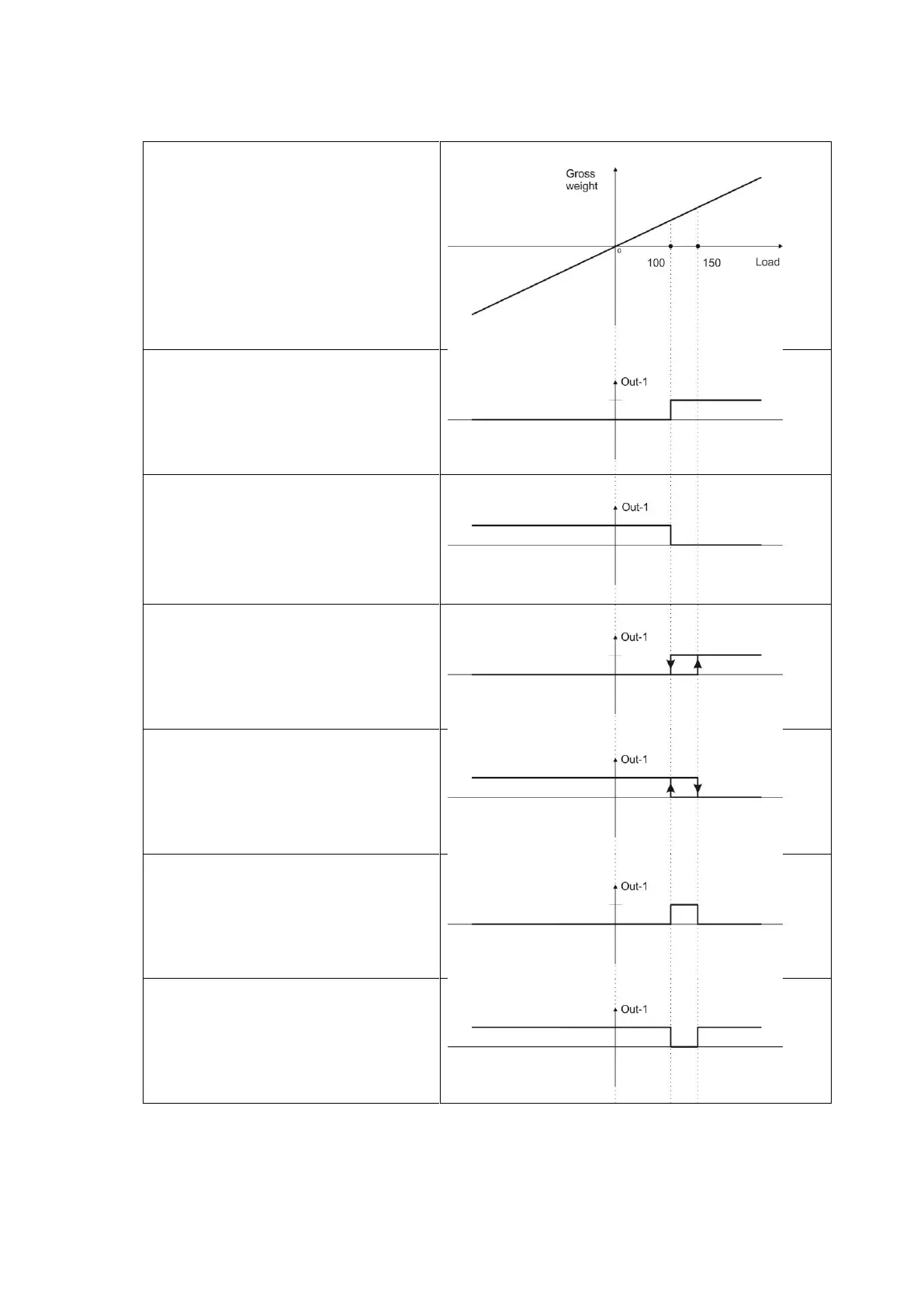

The digital output is activated with comparing the set point and weight at gross weight indication as
shown below.
Example:
if SP1
SP1
LOW
SP1
HIGH
= 100 kg or
= 100 kg
= 150 kg.
BAS-HI Basic, active high
Output is high if gross weight is heavier
than setpoint.
(Default)
BAS-LO Basic, active low
Output is low if gross weight is heavier
than setpoint.
THR-HI Threshold, active high
Output goes to high if gross weight is
heavier than setpoint high. Returns the
low if the weight is less than setpoint
low.
THR-LOW Threshold, active low
Output goes to low if gross weight is
heavier than setpoint high. Returns the
high if the weight is less than setpoint
low.
VIN-HI Window, active high
Output goes to high if gross weight is
between setpoint high and setpoint low.
VIN-LOW Window, active low
Output goes to low if gross weight is
between setpoint high and setpoint low.
