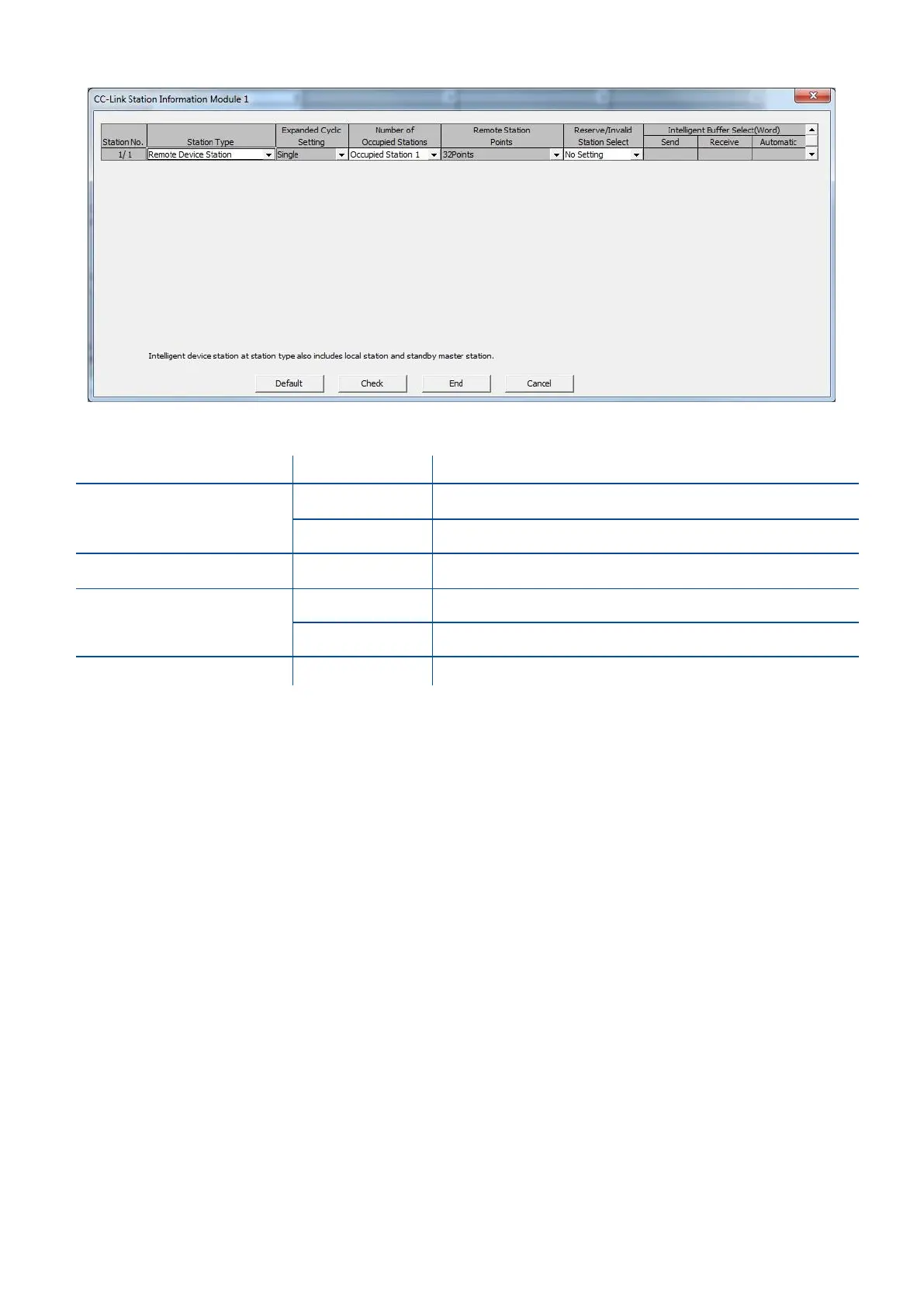

Figure 14.8 – Station information
Input/Output
Definition
Description
Remote Register ( RWr )
RWr0, RWr1
1
st
Dword Input (FT-112(D) Panel Output to PLC Input)
RWr2, RWr3
2
nd
Dword Input (FT-112(D) Panel Output to PLC Inpu )
Remote Input ( RX )
RX0 ~ RX31
Not used
Remote Register ( RWw )
RWw0, RWw1
1
st
Dword Output (PLC Output to FT-112(D) Panel Input)
RWw2, RWw3
2
nd
Dword Output (PLC Output to FT-112(D) Panel Input)
Remote Output ( RY )
RY0 ~ RY31
Not used
14.6.3 CC-Link Data Structure
For the Data Structure for CC-Link see Appendix 1, page 146
