Flintec FT-112 - 14.8.3 CC-Link IE Data Structure; APPENDIX 1: DATA STRUCTURE PROFIBUS, PROFINET, ETHERNET;IP, ETHERCAT, CC-LINK, POWERLINK, CC-LINK IE; FT-112(D) Panel Output to PLC Input

FT-112(D) Panel Weighing Indicator, Technical Manual, Rev.1.0.0, May 2019 Page 145 of 170

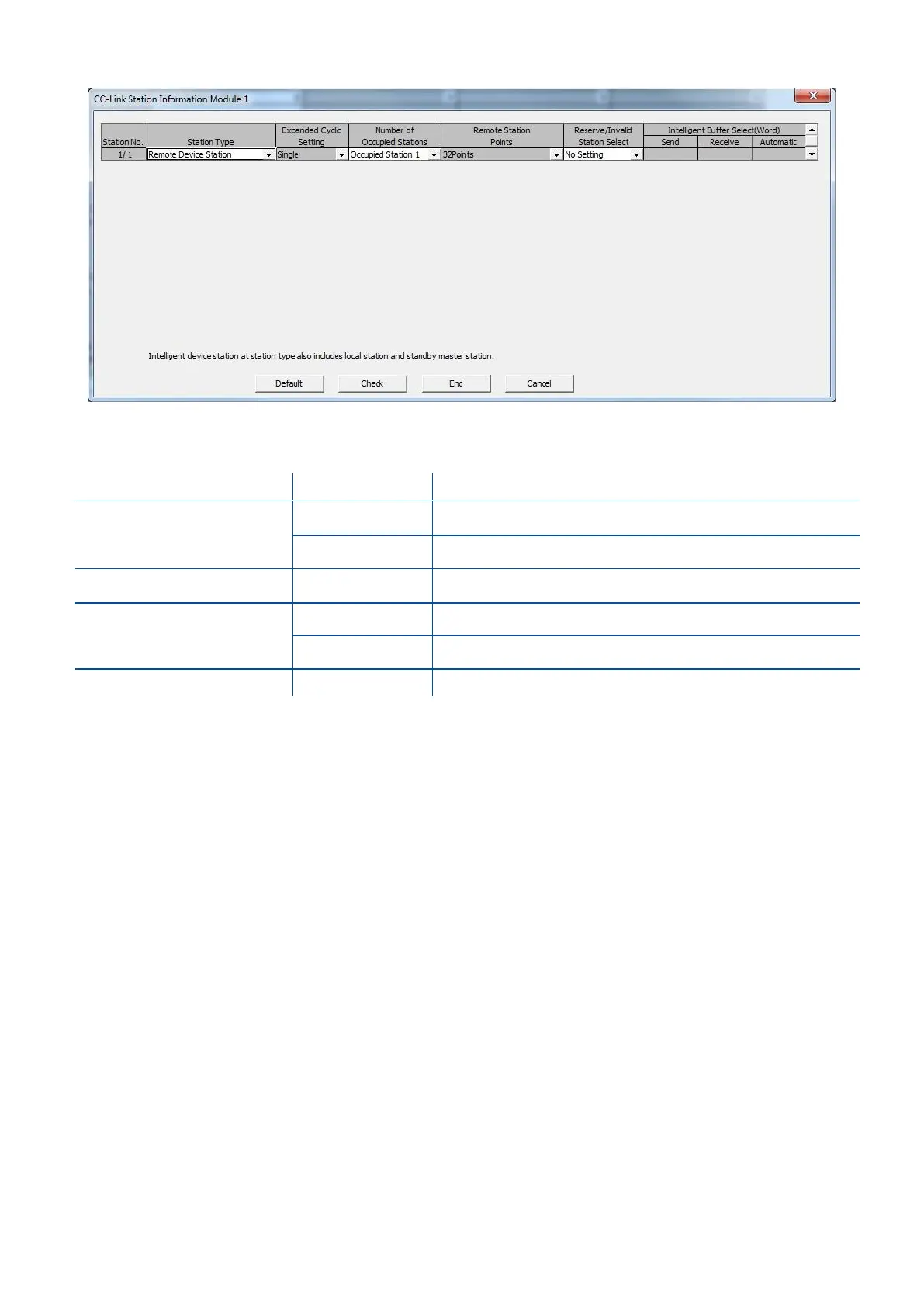

Figure 14.10 – Station information
Input/Output
Definition
Description
Remote Register (RWr)
RWr0, RWr1
1
st
Dword Input (FT-112(D) Panel Output to PLC Input)
RWr2, RWr3
2
nd
Dword Input (FT-112(D) Panel Output to PLC Input)
Remote Input (RX)
RX0 ~ RX31
Not used
Remote Register (RWw)
RWw0, RWw1
1
st
Dword Output (PLC Output to FT-112(D) Panel Input)
RWw2, RWw3
2
nd
Dword Output (PLC Output to FT-112(D) Panel Input)
Remote Output (RY)
RY0 ~ RY31
Not used
14.8.3 CC-Link IE Data Structure
For the Data Structure for Powerlink see Appendix 1, page 146
