FT-112(D) Panel Weighing Indicator, Technical Manual, Rev.1.0.0, May 2019 Page 144 of 170
CC-Link IE Field
After setting related parameters you can communicate with FT-112(D) Panel via CC-Link network.
(in preparation).
There are 2 LED’s near the CC-Link connector which are;
( A ) NS/RUN LED
State
Indication
Off
No power
Operation abnormal
Green
Operation normal
Red
Fatal Event
If NS/RUN and AS/ERR turn red, this indicates a fatal event.
( B ) AS/ERROR LED
State
Indication
Off
No error detected (or no power)
Red
Error
An error occurred in the device. If NS/RUN is off, the device enters state
EXCEPTION. If NS/RUN and AS/ERR turn red, this indicates a fatal event.
In the case of red LED warning, check cabling, configuration and station number. Power off the instrument and
reenergize the instrument 30 seconds later.
14.8.1 Data Format
Data format of weight value can be programmable for Floating point (IEEE 754) or Integer. Refer to parameter
[ 191 ].
14.8.2 CC-Link IE Configuration
The weighing indicator has occupied one station area on CC-Link network and station type of weighing
indicator must be programmed as ‘Remote device station’ in the PLC software. CC-Link configuration for PLC
programmers is shown in Figure 14.8.

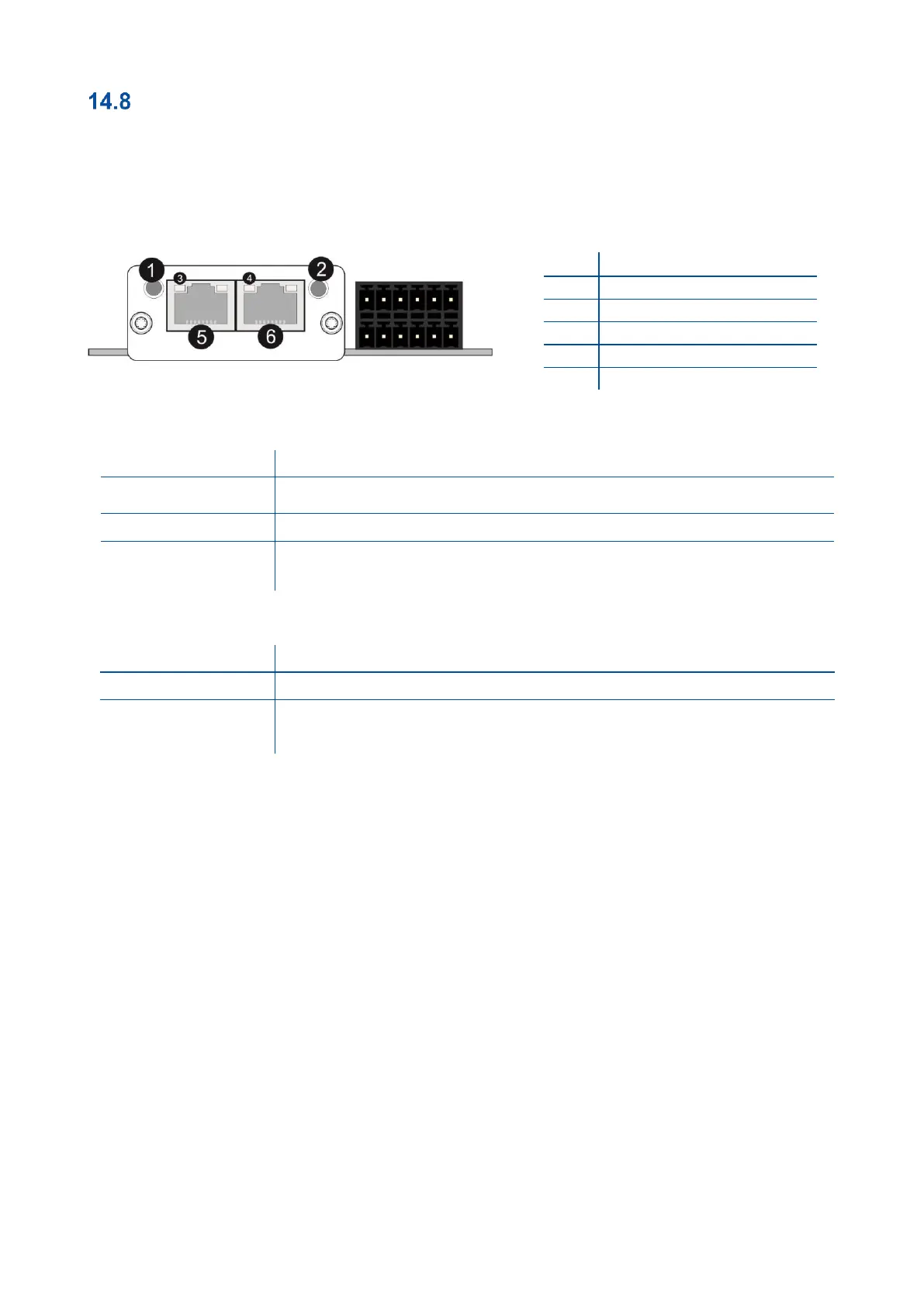

1
( A ) NS/RUN LED
2
( B ) AS/ERROR LED
3
Link/Activity LED (port 1)
4
Link/Activity LED (port 2)
5
P1 interface (port 1)
6
P2 interface (port 2)
