FT-112(D) Panel Weighing Indicator, Technical Manual, Rev.1.0.0, May 2019 Page 143 of 170
LINK/Activity LED
LED State
Description
Off
No link.
Green
Link, no traffic.
Green, flashing
Link and traffic.
14.7.1 Data Format
Data format of weight value can be programmable for Floating point (IEEE 754) or Integer. Refer to parameter
[ 191 ].
14.7.2 XDD Configuration
Powerlink data structures consist of 2 pcs Input-2 words and 2 pcs Output-2 words. XDD configuration for PLC
programmers is shown in Figure 14.9.

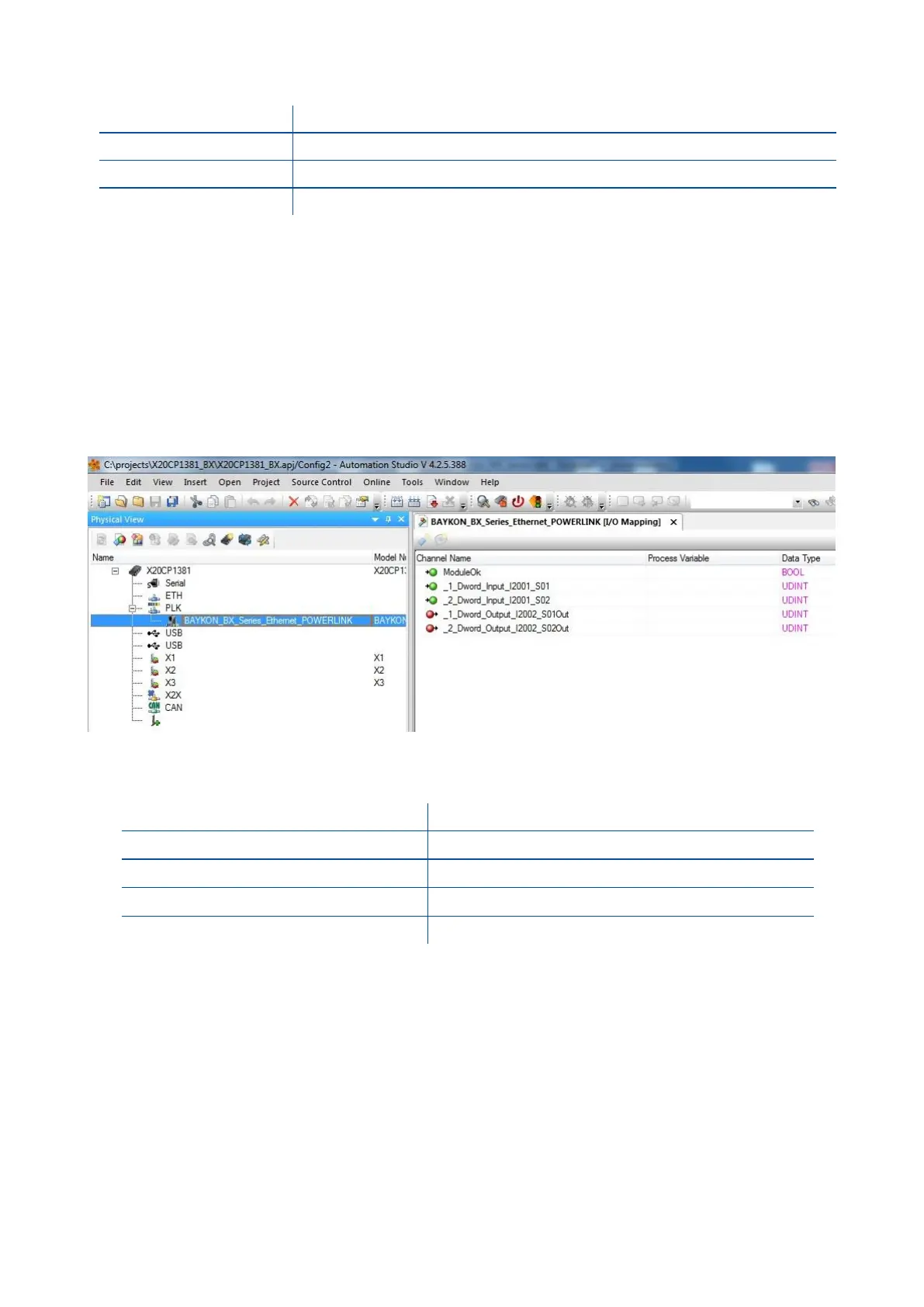

Figure 14.9 – Configuration of module properties with XDD file
Data Length
Description
1_Dword_Input_I2001_S01
1
st
Dword (FT-112(D) Panel Output to PLC Input)
2_Dword_Input_I2001_S02
2
nd
Dword (FT-112(D) Panel Output to PLC Input)
1_Dword_Output_I2002_S01Out
1
st
Dword (PLC Output to FT-112(D) Panel Input)
2_Dword_Output_I2002_S02Out
2
nd
Dword (PLC Output to FT-112(D) Panel Input)
14.7.3 Powerlink Data Structure
For the Data Structure for Powerlink see Appendix 1, page 146
