FLIR E96 User Manual

6,46in
164,2mm
4,57in
116,08mm
10,96in
278,39mm
0,91in
23,23mm
1,92in
48,81mm
4,45in
113,07mm
0,42in
10,55mm
1,95in
49,5mm
0,87in
22mm
0,4in
10,25mm
10,71in
271,96mm
1,9in
48,3mm
0,4in
10,25mm
7,64in
193,99mm
3,27in
82,96mm
2,29in
58,18mm
Sheet
Drawing No.
Size
Check
Drawn by
Denomination
A3
1(1)
T130127

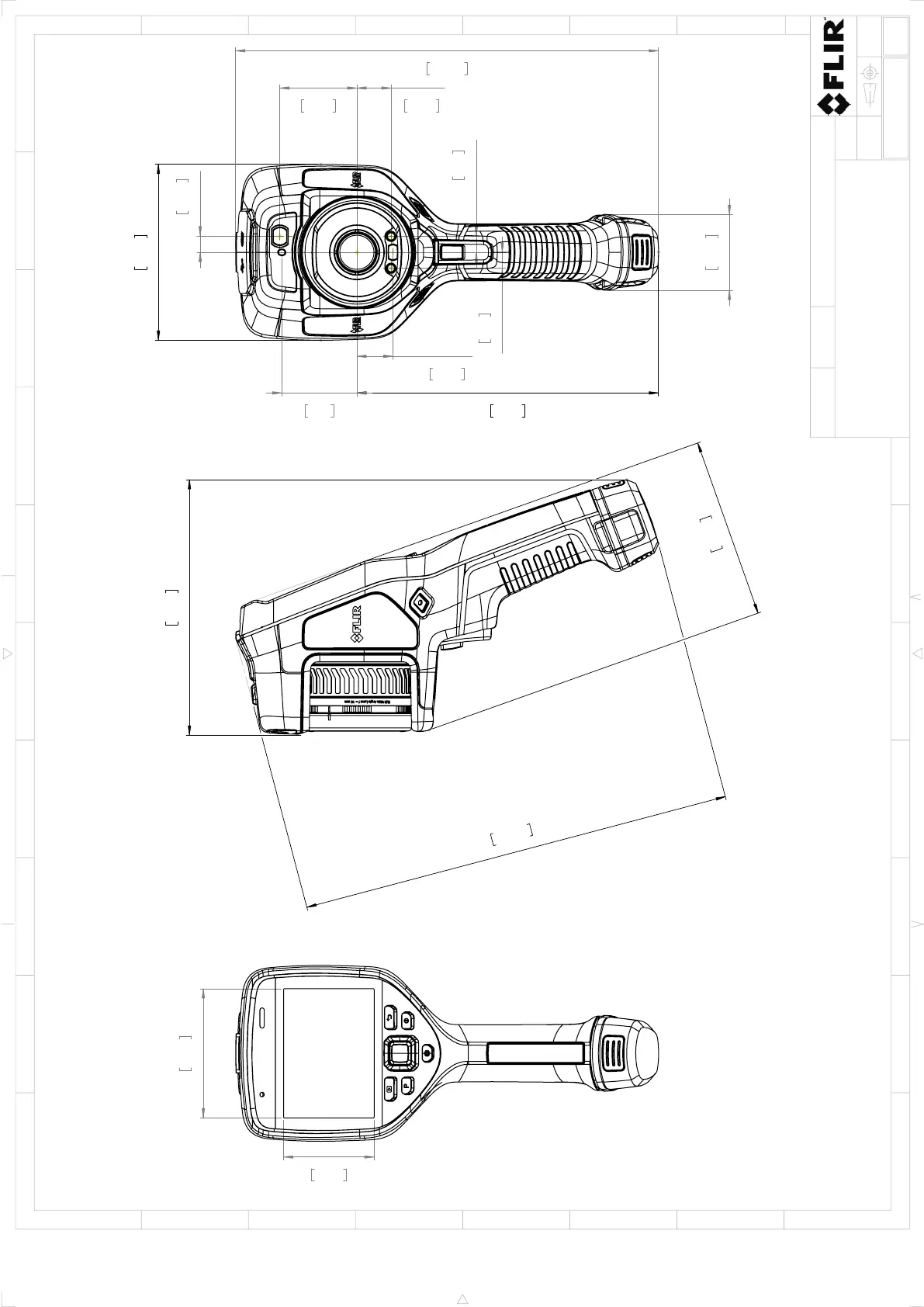

Basic dimension drawing Exx
FRGU
2016-12-20
R&D Instruments
Modified
1 2 3 4 5 6 7 8 9 10
A B
C D
E
F
G
H
1 32 54
C
F
B
D
G
E A
6
Rev
B
1:2
Scale
© 2016, FLIR Systems, Inc. All rights reserved worldwide. No part of this drawing may be reproduced, stored in a retrieval system, or transmitted in any form, or by any means, electronic, mechanical, photocopying, recording, or otherwise,
without written permission from FLIR Systems, Inc. Specifications subject to change without further notice. Dimensional data is based on nominal values. Products may be subject to regional market considerations. License procedures may apply.
Product may be subject to US Export Regulations. Please refer to exportquestions@flir.com with any questions. Diversion contrary to US law is prohibited.

FLIR E96 Specifications

General

Resolution	640 × 480 pixels
Temperature Range	-20°C to 1500°C (-4°F to 2732°F)
Field of View	24° × 18°
Detector Type	Uncooled microbolometer
Digital Camera	5 MP
Wi-Fi	Yes
Laser Pointer	Yes
Image Frequency	30 Hz
Accuracy	±2°C (±3.6°F) or ±2% of reading
Digital Zoom	1-8x continuous
Laser Distance Meter	Yes
Operating Temperature Range	-15°C to 50°C (5°F to 122°F)
Storage Temperature Range	-40°C to 70°C (-40°F to 158°F)
IP Rating	IP54
Thermal Sensitivity	<30 mK at 30 °C (86 °F)
Display	4" LCD touchscreen
Storage Media	SD card
Battery Type	Li-ion battery
Minimum Focus Distance	0.15 m (0.49 ft)
Spectral Range	7.5 – 14 μm
Weight	1.2 kg (2.7 lbs)
