Achieving a good image10

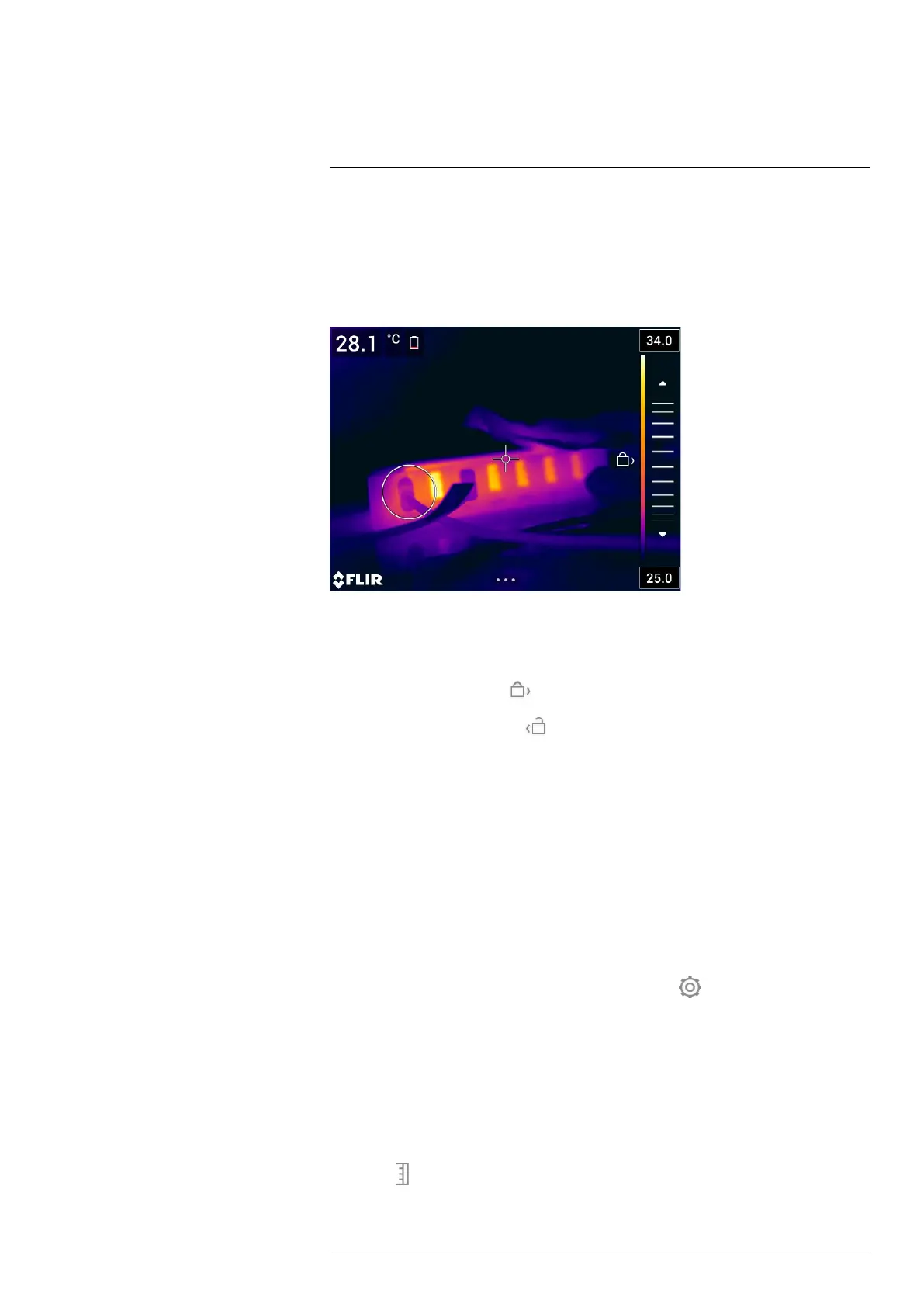

10.3.2.3 Auto-adjusting the image in manual mode
In manual image adjustment mode, you can auto-adjust the image by touching the
screen. The image will be auto-adjusted based on the thermal content of the area around
the touched point. The top and bottom levels in the temperature scale will be set to the
maximum and minimum temperatures in that area. By using the color information only for
the relevant temperatures, you will get more details in your area of interest.
10.3.2.4 Locking the touch screen
When you have adjusted the image to levels that allow you to study your area of interest,
you can lock the touch screen to prevent further unintentional adjustments.
To lock the screen, touch the
icon to the left of the temperature scale.
To unlock the screen, touch the
icon to the left of the temperature scale.
Note If you switch to automatic image adjustment mode, the screen automatically un-
locks and your manual adjustments are lost.
10.3.3 Manual adjustment by using the navigation pad
10.3.3.1 Manual adjustment modes
There are two different settings for the manual adjustment mode (applicable for the navi-
gation pad only):
• Level, Span: With this setting, you can manually adjust the level and span by using
the navigation pad.
• Level, Max, Min: With this setting, you can manually adjust the level by using the navi-
gation pad. You can also change the upper and lower temperatures individually.
Select the type of manual image adjustment mode under
(Settings) > Device set-
tings > User interface options > Manual adjustment mode.
10.3.4 Manual adjustment in Level, Span mode
Note This procedure assumes that you have configured the camera for manual image
adjustments in Level, Span mode. Select Settings > Device settings > User interface op-
tions > Manual adjustment mode = Level, Span.
Follow this procedure:
1. In live mode, push the navigation pad to display the menu system.
2. Select
(Temperature scale) and push the navigation pad. This displays a
submenu.
#T810587; r. AA/74078/74713; en-US
52

FLIR E96 Specifications

General

Resolution	640 × 480 pixels
Temperature Range	-20°C to 1500°C (-4°F to 2732°F)
Field of View	24° × 18°
Detector Type	Uncooled microbolometer
Digital Camera	5 MP
Wi-Fi	Yes
Laser Pointer	Yes
Image Frequency	30 Hz
Accuracy	±2°C (±3.6°F) or ±2% of reading
Digital Zoom	1-8x continuous
Laser Distance Meter	Yes
Operating Temperature Range	-15°C to 50°C (5°F to 122°F)
Storage Temperature Range	-40°C to 70°C (-40°F to 158°F)
IP Rating	IP54
Thermal Sensitivity	<30 mK at 30 °C (86 °F)
Display	4" LCD touchscreen
Storage Media	SD card
Battery Type	Li-ion battery
Minimum Focus Distance	0.15 m (0.49 ft)
Spectral Range	7.5 – 14 μm
Weight	1.2 kg (2.7 lbs)
