Working with color alarms and
isotherms
13
13.1 Color alarms
By using color alarms (isotherms), anomalies can easily be discovered in an infrared im-
age. The isotherm command applies a contrasting color to all pixels with a temperature
above, below, or between the set temperature levels. The camera also features isotherm
types that are specific to the building trade: condensation and insulation alarms.
You can make the camera trigger the following types of color alarms:
• Above alarm: This will apply a contrasting color to all pixels with a temperature above
the specified temperature level.
• Below alarm: This will apply a contrasting color to all pixels with a temperature below
the specified temperature level.
• Interval alarm: This will apply a contrasting color to all pixels with a temperature be-
tween two specified temperature levels.
• Condensation alarm: Triggers when the camera detects a surface where the relative
humidity exceeds a preset value.
• Insulation alarm: Triggers when there is an insulation deficiency in a wall.

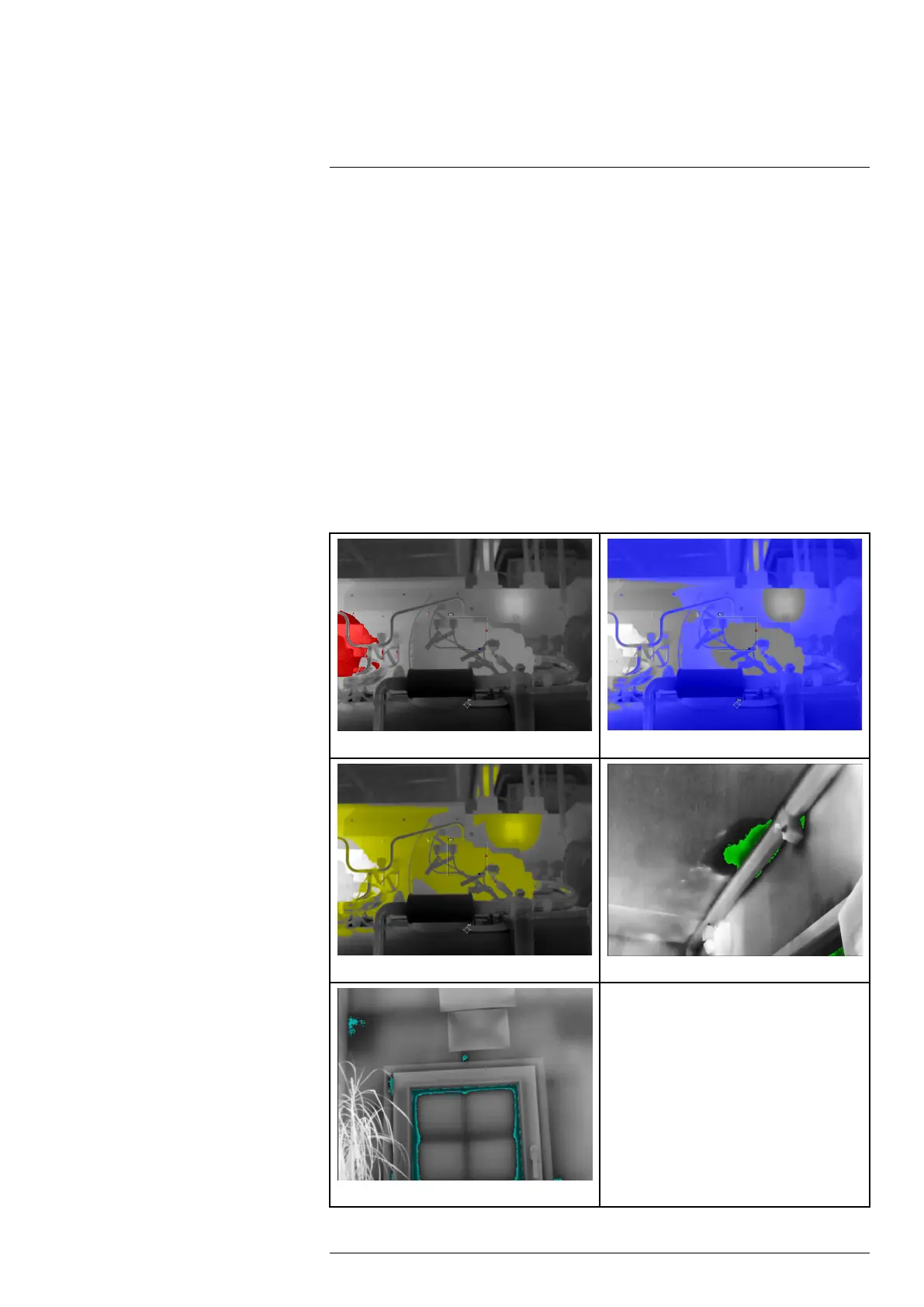

This table explains the different color alarms (isotherms).
Above alarm
Below alarm
Interval alarm
Condensation alarm
Insulation alarm
#T810587; r. AA/74078/74713; en-US
68

FLIR E96 Specifications

General

Resolution	640 × 480 pixels
Temperature Range	-20°C to 1500°C (-4°F to 2732°F)
Field of View	24° × 18°
Detector Type	Uncooled microbolometer
Digital Camera	5 MP
Wi-Fi	Yes
Laser Pointer	Yes
Image Frequency	30 Hz
Accuracy	±2°C (±3.6°F) or ±2% of reading
Digital Zoom	1-8x continuous
Laser Distance Meter	Yes
Operating Temperature Range	-15°C to 50°C (5°F to 122°F)
Storage Temperature Range	-40°C to 70°C (-40°F to 158°F)
IP Rating	IP54
Thermal Sensitivity	<30 mK at 30 °C (86 °F)
Display	4" LCD touchscreen
Storage Media	SD card
Battery Type	Li-ion battery
Minimum Focus Distance	0.15 m (0.49 ft)
Spectral Range	7.5 – 14 μm
Weight	1.2 kg (2.7 lbs)
