FLIR E96 User Manual

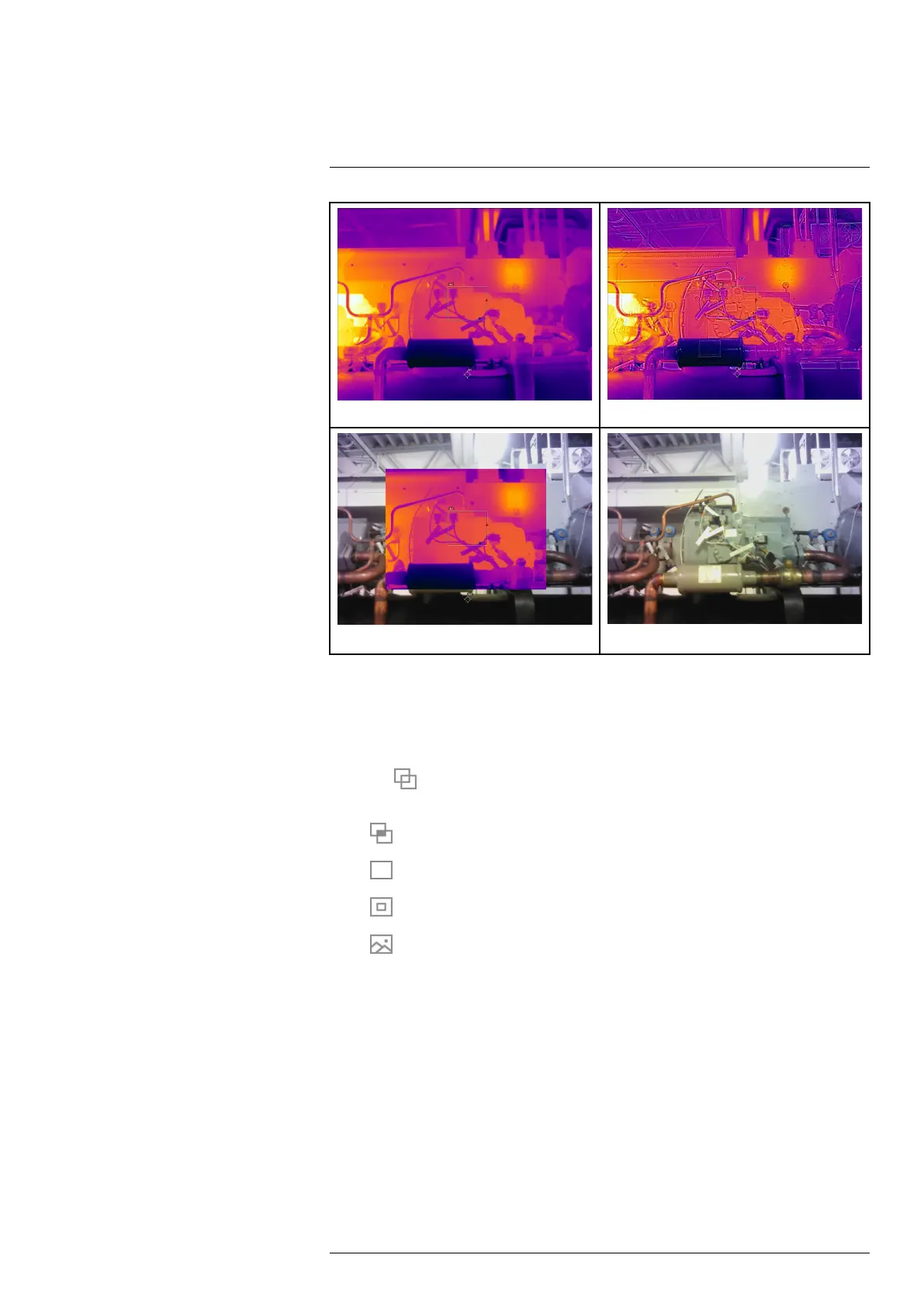

Working with image modes11
Thermal
Thermal MSX
Picture in picture
Digital camera
11.3 Selecting an image mode
Follow this procedure:
1. Push the navigation pad to display the menu system.
2. Select
(Image mode) and push the navigation pad. This displays a submenu.
3. Use the navigation pad to select one of the following:
•
(Thermal MSX).
•
(Thermal).
•
(Picture in picture).
•
(Digital camera).
Note If the *.csq video format is selected (Settings > Save options & storage > Vid-
eo compression) and the recording mode Video is selected (Settings > Recording
mode), it will only be possible to select the image mode Thermal.
4. Push the navigation pad to confirm and exit the menu mode.
5. If Picture in picture mode is selected, you can at this point move and resize the infra-
red image frame using the touch screen. (For some camera models, the image frame
is locked in the center and cannot be moved.)
#T810587; r. AA/74078/74713; en-US
58

FLIR E96 Specifications

General

Resolution	640 × 480 pixels
Temperature Range	-20°C to 1500°C (-4°F to 2732°F)
Field of View	24° × 18°
Detector Type	Uncooled microbolometer
Digital Camera	5 MP
Wi-Fi	Yes
Laser Pointer	Yes
Image Frequency	30 Hz
Accuracy	±2°C (±3.6°F) or ±2% of reading
Digital Zoom	1-8x continuous
Laser Distance Meter	Yes
Operating Temperature Range	-15°C to 50°C (5°F to 122°F)
Storage Temperature Range	-40°C to 70°C (-40°F to 158°F)
IP Rating	IP54
Thermal Sensitivity	<30 mK at 30 °C (86 °F)
Display	4" LCD touchscreen
Storage Media	SD card
Battery Type	Li-ion battery
Minimum Focus Distance	0.15 m (0.49 ft)
Spectral Range	7.5 – 14 μm
Weight	1.2 kg (2.7 lbs)
