FLIR E96

To Next Page

To Previous Page

Handling the camera

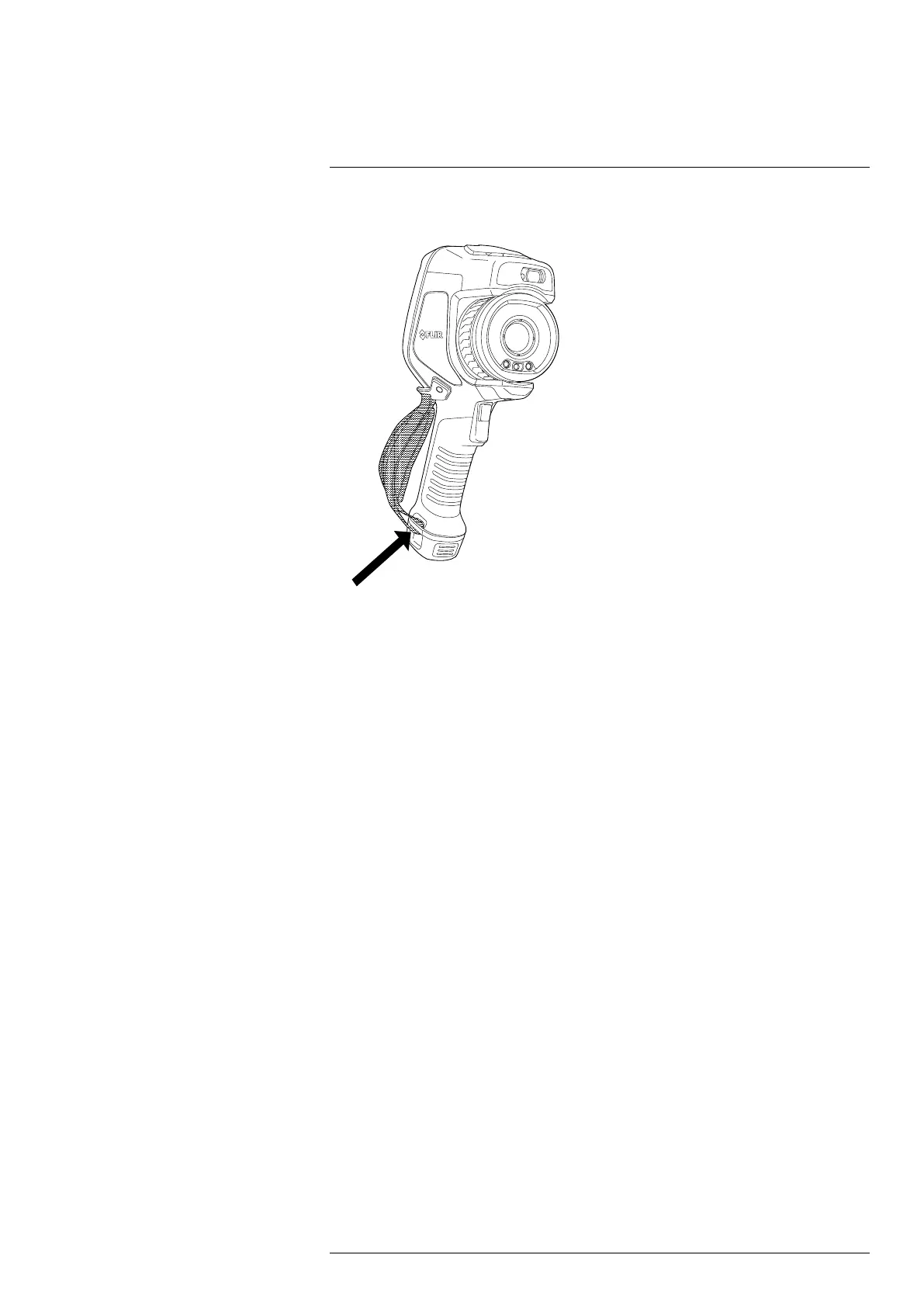

3. Thread the loose strap through the attachment point at the base of the camera. Se-

cure the strap with the hook-and-loop fastener.

#T810587; r. AA/74078/74713; en-US
