FLIR E96 User Manual

Achieving a good image10
You can choose to hide all camera overlay by pressing the programmable button.

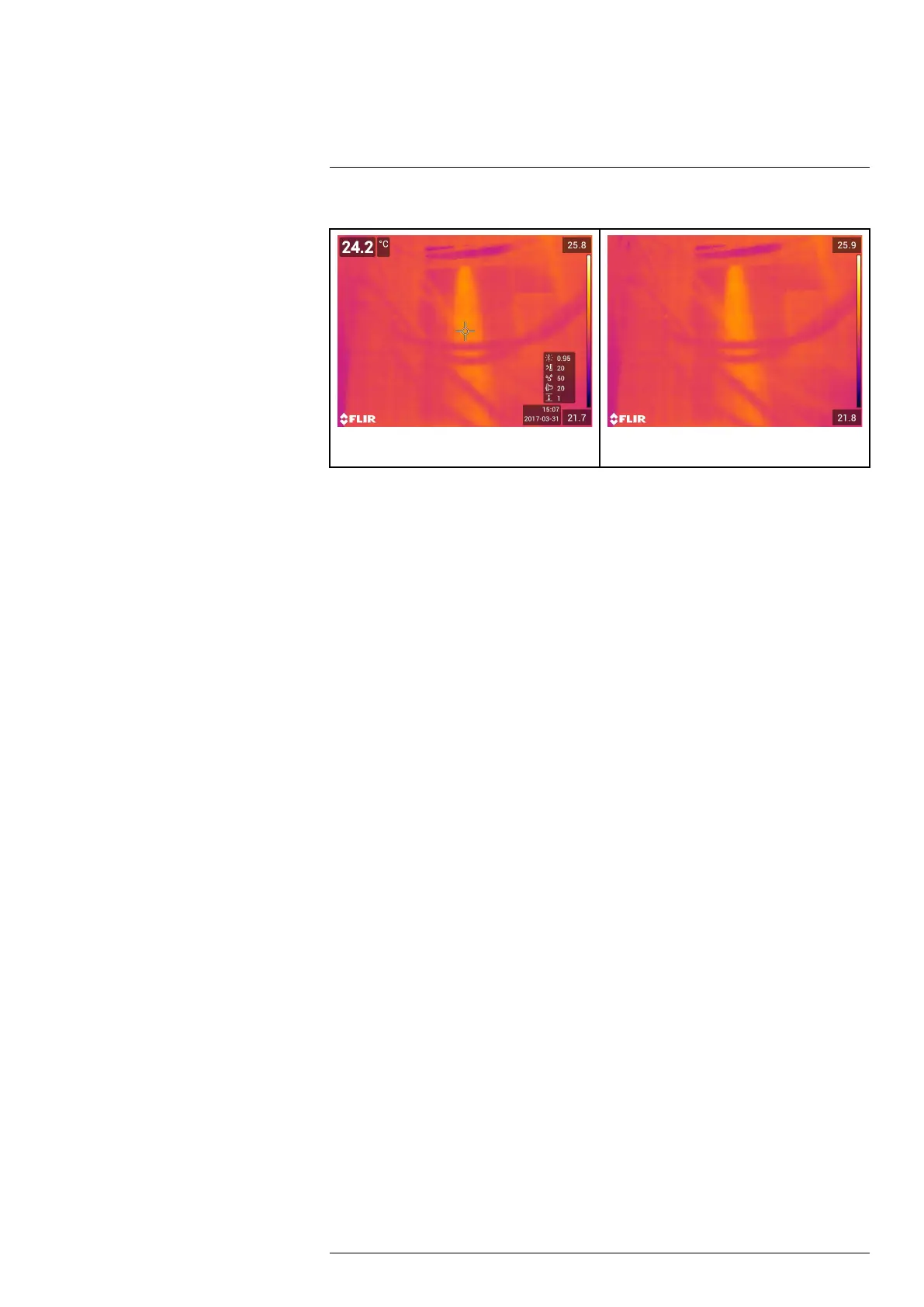

Image with camera overlay and image overlay
information.
Image with all overlay hidden.
Follow this procedure:
1. Push and hold the programmable button. This displays the Programmable button
menu.
2. Push the navigation pad up/down to select the function Hide image overlay graphics .
3. Push the navigation pad to confirm and exit the menu mode.
#T810587; r. AA/74078/74713; en-US
56

FLIR E96 Specifications

General

Resolution	640 × 480 pixels
Temperature Range	-20°C to 1500°C (-4°F to 2732°F)
Field of View	24° × 18°
Detector Type	Uncooled microbolometer
Digital Camera	5 MP
Wi-Fi	Yes
Laser Pointer	Yes
Image Frequency	30 Hz
Accuracy	±2°C (±3.6°F) or ±2% of reading
Digital Zoom	1-8x continuous
Laser Distance Meter	Yes
Operating Temperature Range	-15°C to 50°C (5°F to 122°F)
Storage Temperature Range	-40°C to 70°C (-40°F to 158°F)
IP Rating	IP54
Thermal Sensitivity	<30 mK at 30 °C (86 °F)
Display	4" LCD touchscreen
Storage Media	SD card
Battery Type	Li-ion battery
Minimum Focus Distance	0.15 m (0.49 ft)
Spectral Range	7.5 – 14 μm
Weight	1.2 kg (2.7 lbs)
