Why
do
some
gases
absorb
infrared
energy?
28

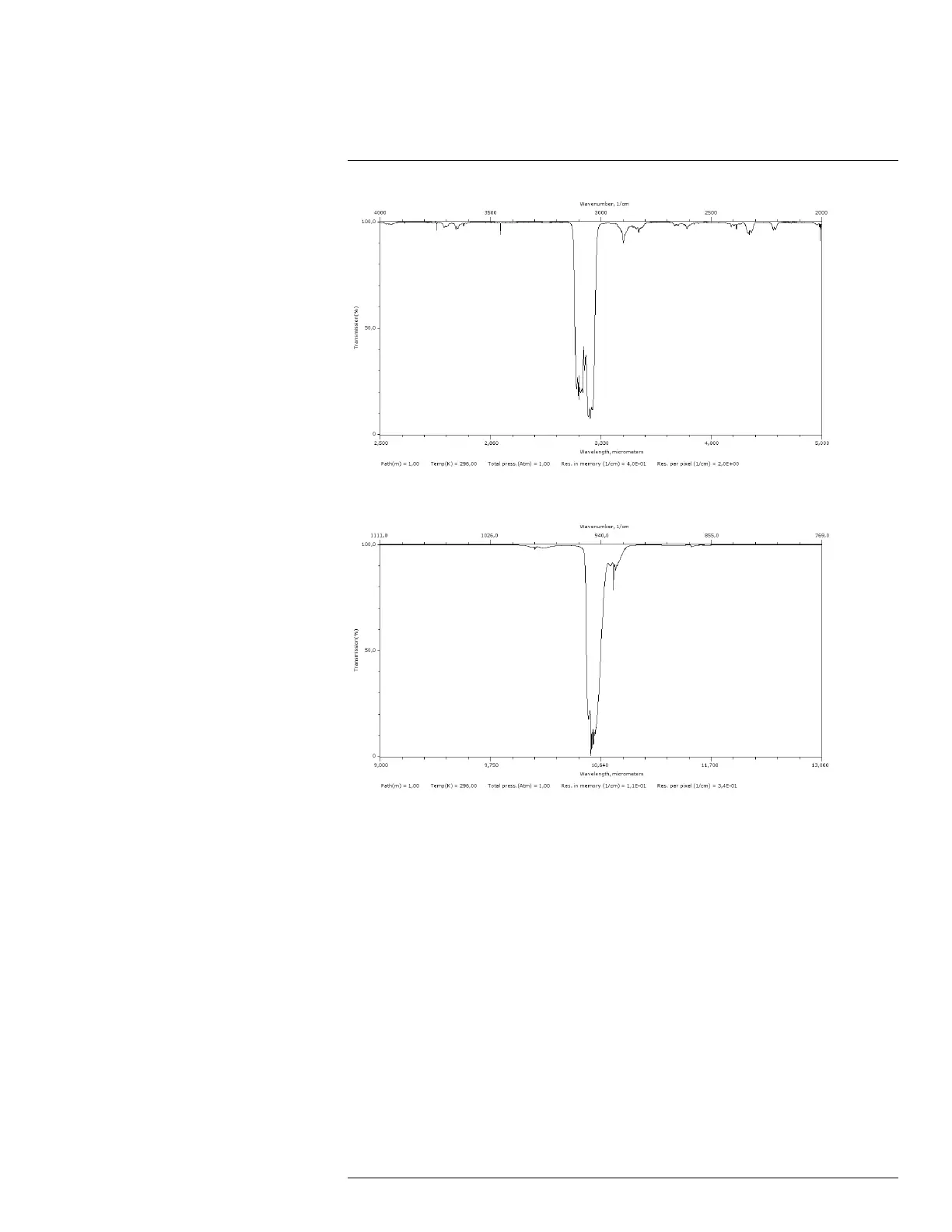

Figure
28.7
Benzene
(C
6
H
6
).
Strong
absorption
around
3.2
-
3.3
μm,
CL=5000
ppmxm,
Source:
PNNL
Figure
28.8
Sulfur
hexafluoride
(SF
6
).
Strong
absorption
around
10.6
μm,
CL=50
ppmxm,
Source:
PNNL
#T559157;
r
.
AH/45951/45951;
en-US
248
259
261
