FLIR GF3 Series - View from the Rear; Explanation; Figure

Camera parts
12
7.
button.
The
button has the following functions:
When an image is in live mode:
• To adjust the focus, push the button left/right.
• To autofocus, push the center of the
button.
When an image is in preview or saved mode:
• To adjust the zoom, push the
button left/right.
8. Hand strap.
9. Focus ring on the infrared lens.
10. Infrared lens.

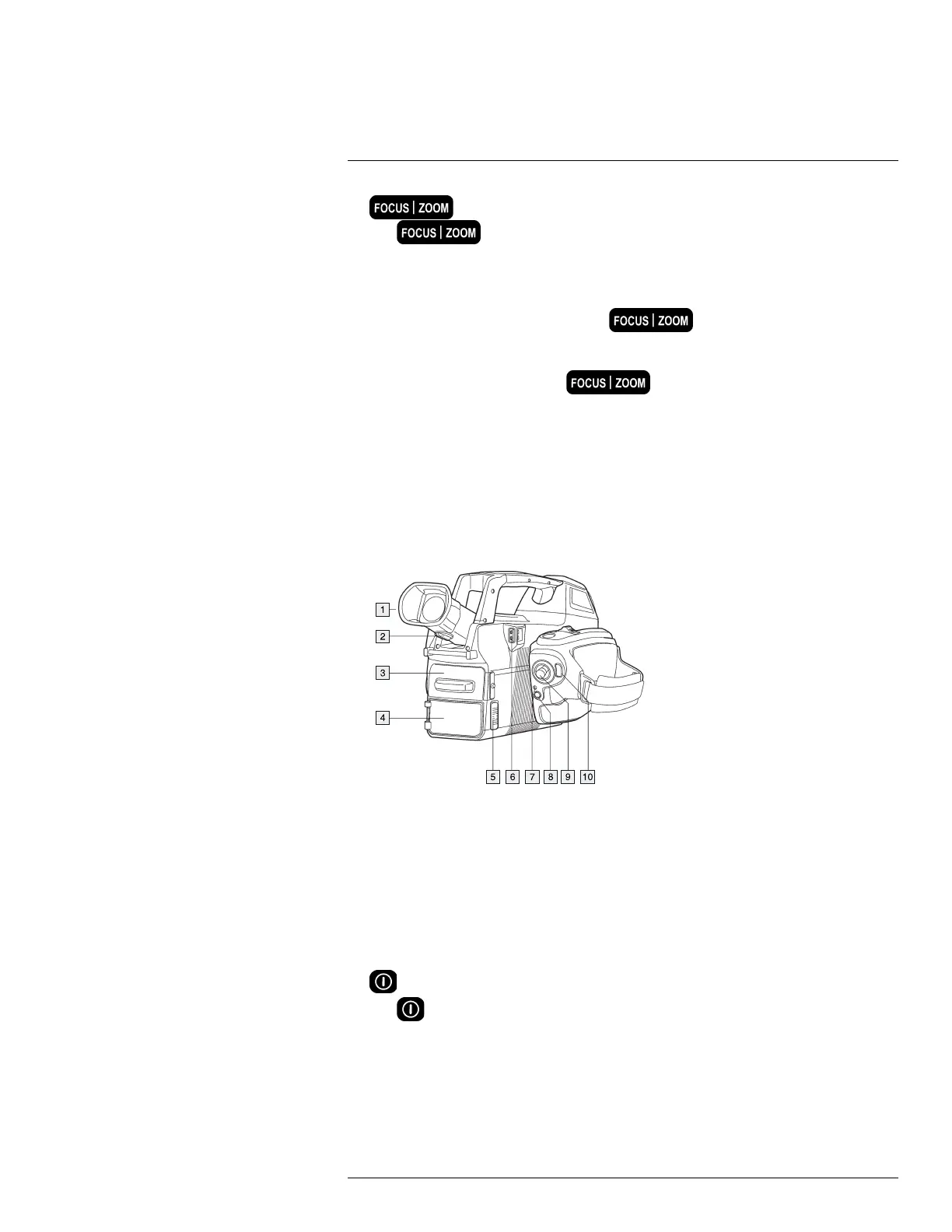

12.3 View from the rear
12.3.1 Figure
12.3.2 Explanation
1. Viewfinder.
2. Adjustment knob for the viewfinder’s diopter correction.
3. Cover for the connector compartment.
4. Cover for the battery compartment.
5. Release button for the battery compartment cover.
6. USB-A connector for external USB devices.
7. Power LED indicator.
8.
button (On/off).
The
button has the following functions:
• When the camera is off, push and release to turn on the camera.
• When the camera is on, push and hold for more than 0.2 second to turn off the
camera.
