ExplanationCommand
All pixels with a temperature lower than a set temperature will be
colored with the same preset isotherm color.
Below
All pixels with a temperature within the set interval will be colored
with the same preset isotherm color.
Interval
All pixels in two consecutive temperature ranges above a set temper-
ature will be colored with two different preset isotherm colors.
Dual Above
All pixels in two consecutive temperature ranges below a set temper-
ature will be colored with two different preset isotherm colors.
Dual Below
See belowSettings
Point to Settings and press the joystick to display an Isotherm settings dialog box
where you can change the settings for the isotherm.
10397403;a3

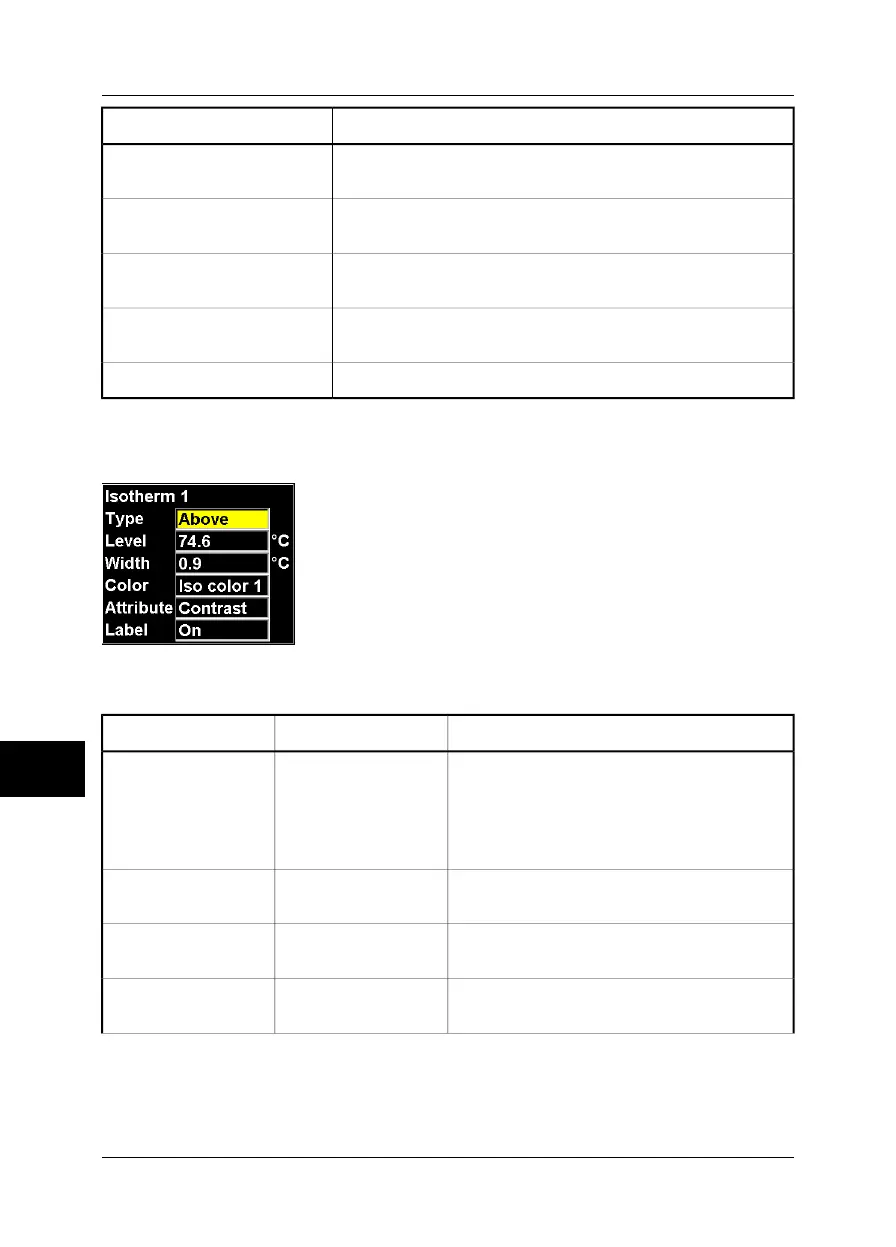

Figure 10.37 Isotherm dialog box
Figure 10.38 Explanations of the Isotherm dialog box
CommentsValueLabel
For an explanation of isotherm types, see above.
■
Interval
■
Above
■
Below
■
Dual Above
■
Dual Below
Type
The temperature level in degrees Celsius (°C) or
degrees Fahrenheit (°F).
User-definedLevel
The temperature width in degrees Celsius (°C) or
degrees Fahrenheit (°F).
User-definedWidth
The colors used for the isotherm.Configuration-depen-
dent
Color
10
108 Publ. No. 1557954 Rev. a155 – ENGLISH (EN) – February 7, 2006
10 – Camera program
