16.11 Pin configurations
16.11.1 RS-232/USB connector
10402703;a1

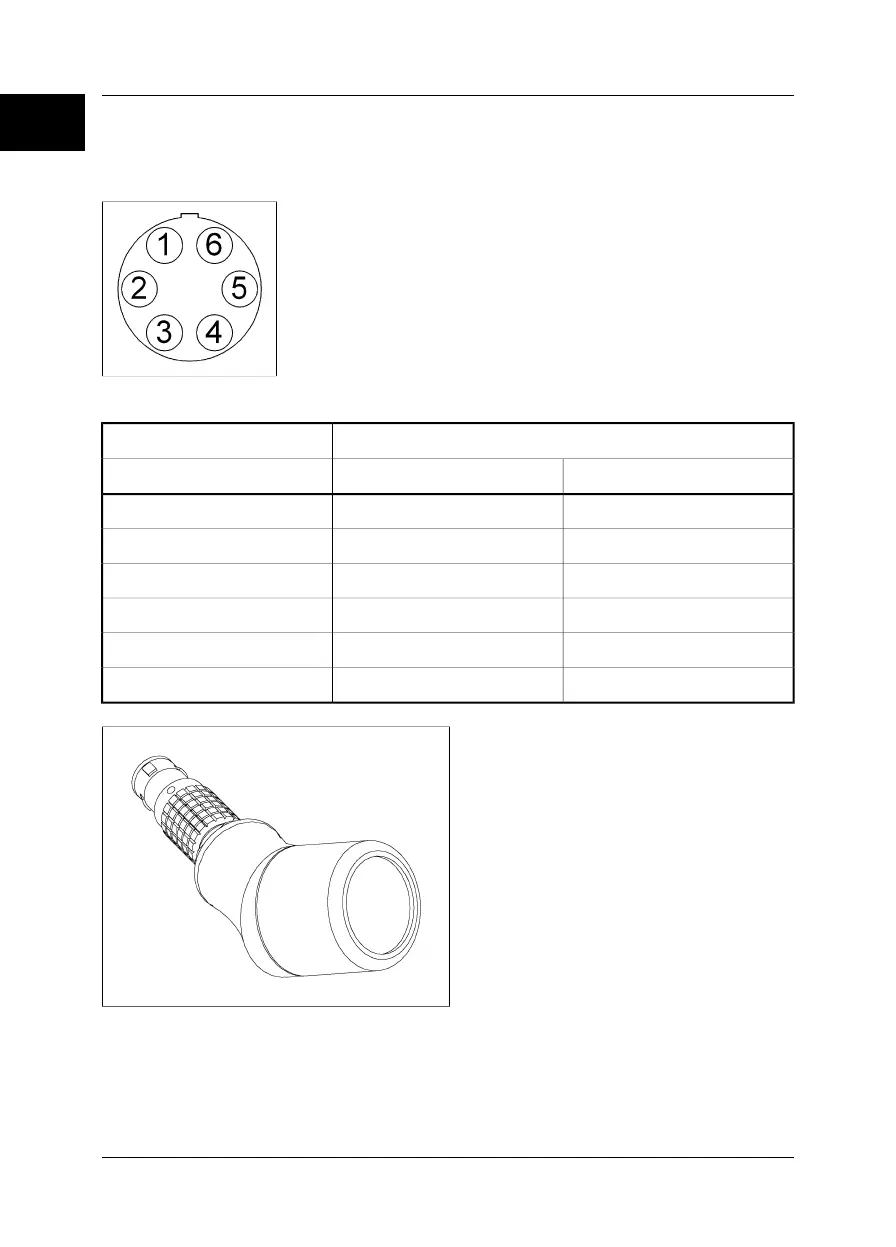

Figure 16.1 Pin configuration for RS-232/USB connector (on camera – operator’s side)
LEMO 1B, 6 pinsConnector type:
Pin numberTypeSignal name
1I/OUSB_D+
2I/OUSB_D-
3OUTUSB_POWER
4GNDGND
5OUTRS232_TX1
6INRS232_RX1
10563403;a1
Figure 16.2 Video lamp, to be inserted in the RS-232/USB connector
■ Power: 0.7 W
■ Voltage: 5 V ± 10%
