6.2 Rear connectors
10438603;a2

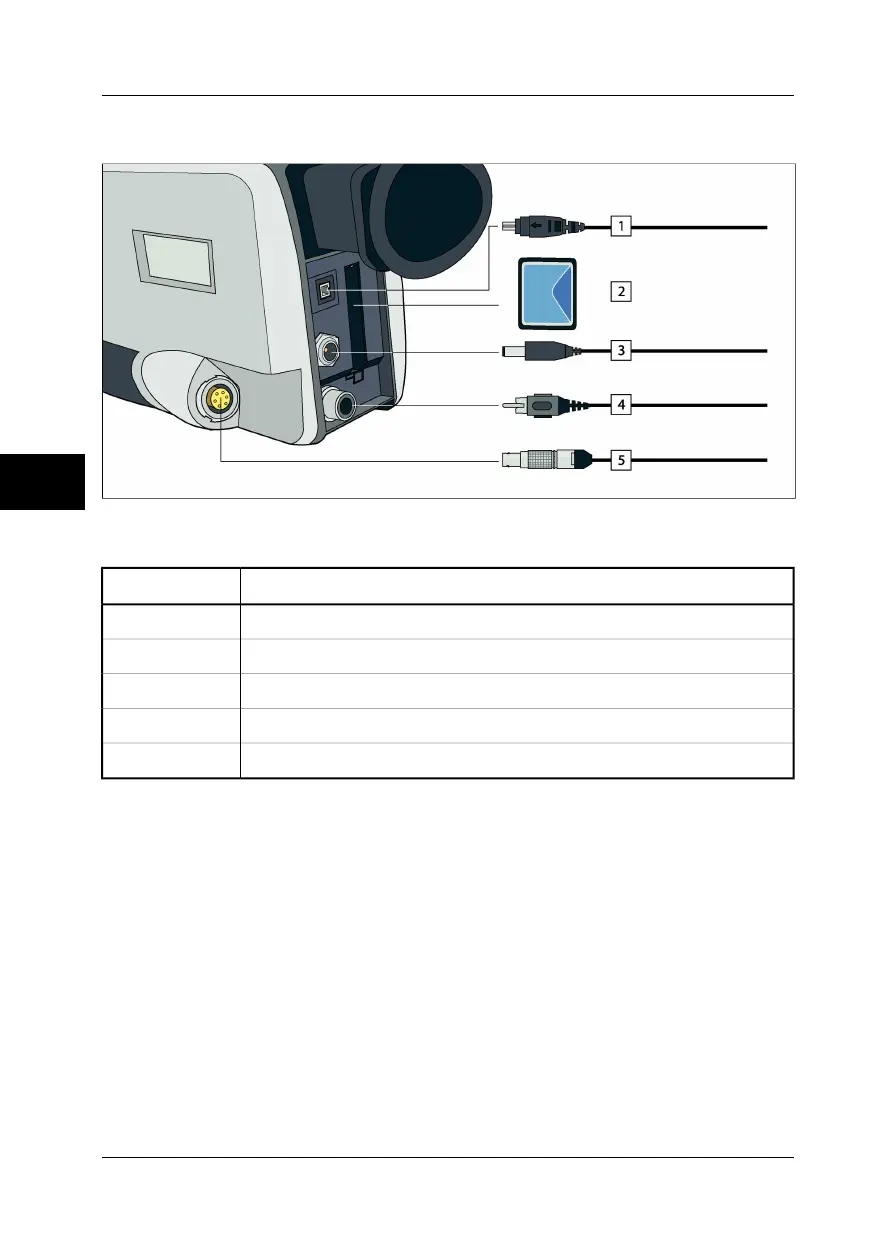

Figure 6.3 How to connect system components: Rear connectors
Figure 6.4 Explanations of callouts
ExplanationCallout
FireWire cable1
CompactFlash card1
Power supply cable2
CVBS cable (i.e. composite video)3
Remote control cable4
6
