10.2.3.6 Add isotherm
The isotherm command colors all pixels with a temperature above, dual above, below,
dual below or between one or more preset temperature levels.
10390903;a2

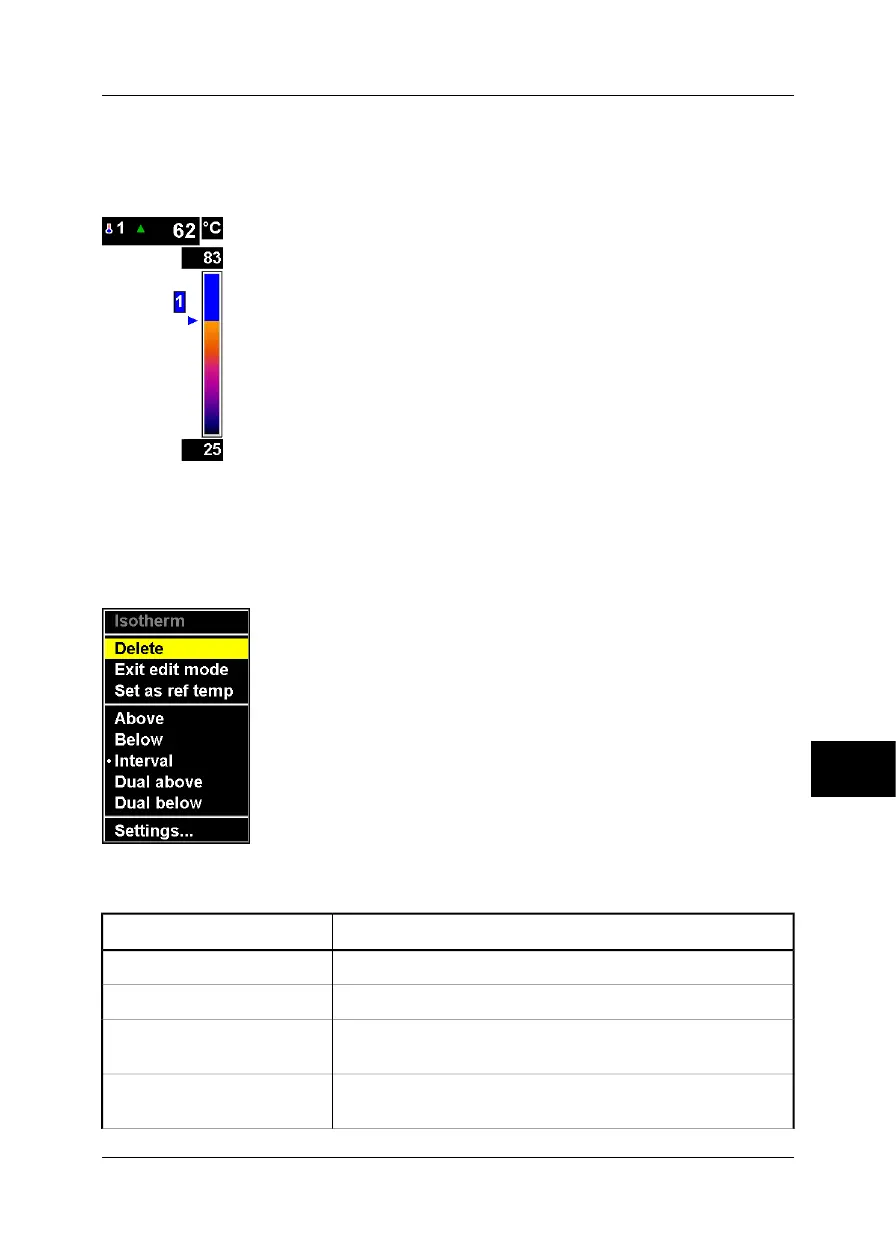

Figure 10.34 Temperature scale showing an isotherm set to above +62 °C
Point to Add isotherm and press the joystick to add an isotherm. An isotherm has
now be added to your image. Press and hold down the joystick for one second when
the isotherm (in the temperature scale) is selected to display a shortcut menu.
10391003;a3
Figure 10.35 Shortcut menu for Isotherm
Figure 10.36 Explanations of the Isotherm shortcut menu
ExplanationCommand
Point to Delete and press the joystick to delete the isotherm.Delete
Point to Exit edit mode and press the joystick to exit the edit mode.Exit edit mode
Point to Set as ref temp and press the joystick to use the isotherm
temperature as the reference temperature.
Set as ref temp
All pixels with a temperature higher than a set temperature will be
colored with the same preset isotherm color.
Above
10
Publ. No. 1557954 Rev. a155 – ENGLISH (EN) – February 7, 2006 107
10 – Camera program
