Maintenance of the Machine
66
04/03/2020 218333

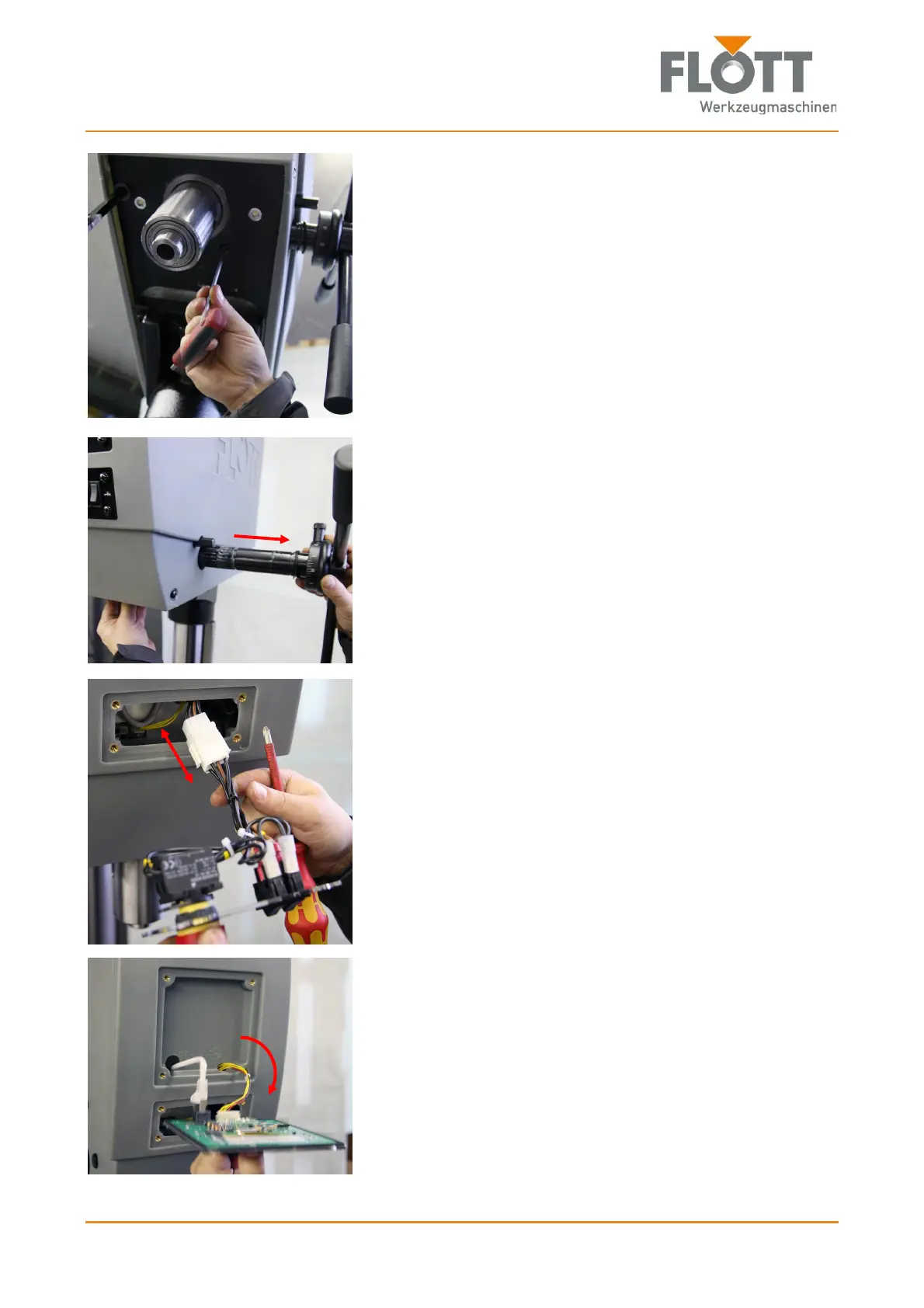

5. In the area ofthe spindle, loosen the size 4 hexagon
socket screw to remove the three-arm-lever.
6. Carefully pull the complete three-arm-lever with pinion
shaft out of the guide of the quill and deposit it.
7. Loosen the 3 Phillips screws on the lower control panel
(emergency stop button).
8. Pull the control panel out of the housing until the plug
connection is reached.
9. Loosen the plug connection by pressing on the outer
wings and pulling the two connectors apart at the same
time.
10. Deposit the dismantled control panel.
11. Insert the plug back into the protective hood.
12. Loosen the 4 Phillips screws of the upper control panel
(display).
13. Pull the control panel out of the housing until the plug
connections are reached.
14. Loosen the two plug connectors by
pressing on the release hook and
removing the plug.
15. Deposit the dismantled control panel.
16. Insert the plugs back into the protective hood.
