Maintenance of the Machine
218333 04/03/2020
67

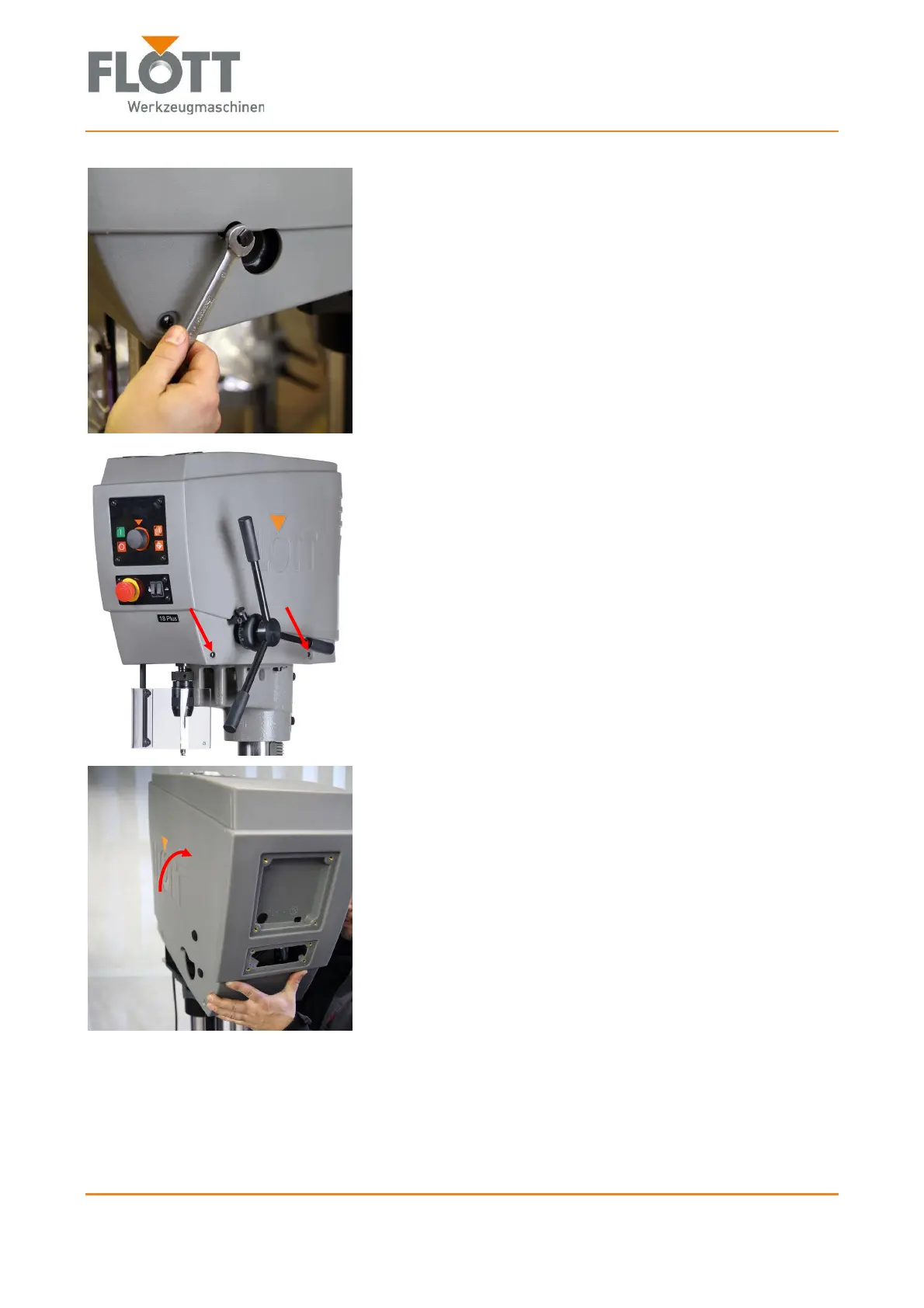

17. Loosen the drilling depth limiter with a WAF13 hexagon
wrench and remove it.
18. Remove the 2 side Phillips screws from the protective
hood.
19. Tilt the protective hood slightly forward and pull it down
from the machine head.
20. Deposit the protective hood.
The protective hood is now dismantled so that the required maintenance and
repair work on the electrical system and the drive unit can be carried out.
