Flott SB 18 Plus - Page 87

Spare Parts List and Drawings
218333 04/03/2020 87
This does not apply to parts no longer manufactured
due to technical innovations!
Order number
Fig. Item Designation SB 23 Plus
R1
TB 23 Plus
R1
TBZ 23 Plus
R1
3 1 Frequency converter 1.5 kW * 223091 223091 223091
3 1 Motor 1.5 kW 223131 223131 223131
3 2 Motor holding bracket 223084 223084 223084
3 3 Ribbed V-belt DIN 7867 *
8PJx660 mm
010103 010103 010103
3 4 Intermediate pulley D72.5/46.7 223074 223074 223074
3 5 Intermediate shaft 223071 223071 223071
3 6 Ribbed V-belt DIN 7867 *
8PJx610 mm
010170 010170 010170
3 7 Spindle pulley 218421 218421 218421
3 8 Running bush * 218351 218351 218351
3 9 Flange bearing 201401 201401 201401
3 9 Grooved ball bearing DIN 625 *
30x62x16 – 6205 2Z
006793 006793 006793
* Wear part

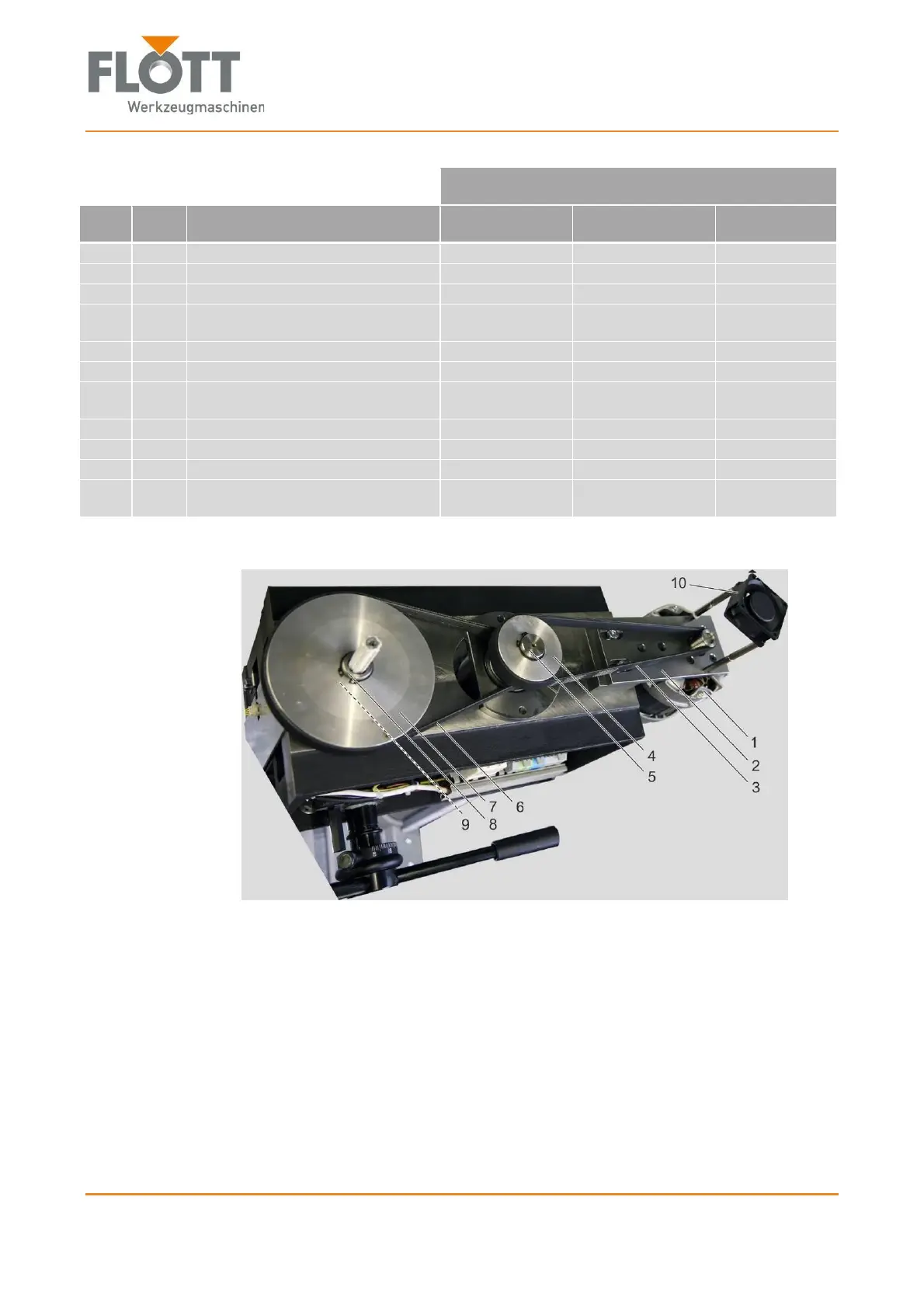

Fig. 3: SB/TB/TBZ P23 Plus (R1)
