Flott SB 18 Plus - Page 88

Spare Parts List and Drawings
88 04/03/2020 218333
This does not apply to parts no longer manufactured
due to technical innovations!
Order number
Fig. Item Designation SB 23 Plus
R2
TB 23 Plus
R2
TBZ 23 Plus
R2
4 1 Motor holding bracket 223084 223084 223084
4 – Frequency converter 1.5 kW * 223091 223091 223091
4 2 Motor 1.5 kW 223131 223131 223131
4 3 Flange bearing 201401 201401 201401
4 4 Grooved ball bearing DIN 625 *
30x62x16 mm 6206-2Z
006793 006793 006793
4 5 Running bush * 218351 218351 218351
4 6 Spindle pulley 218421 218421 218421
4 7 Ribbed V-belt DIN 7867 *
8PJx1080 mm
010152 010152 010152
* Wear part

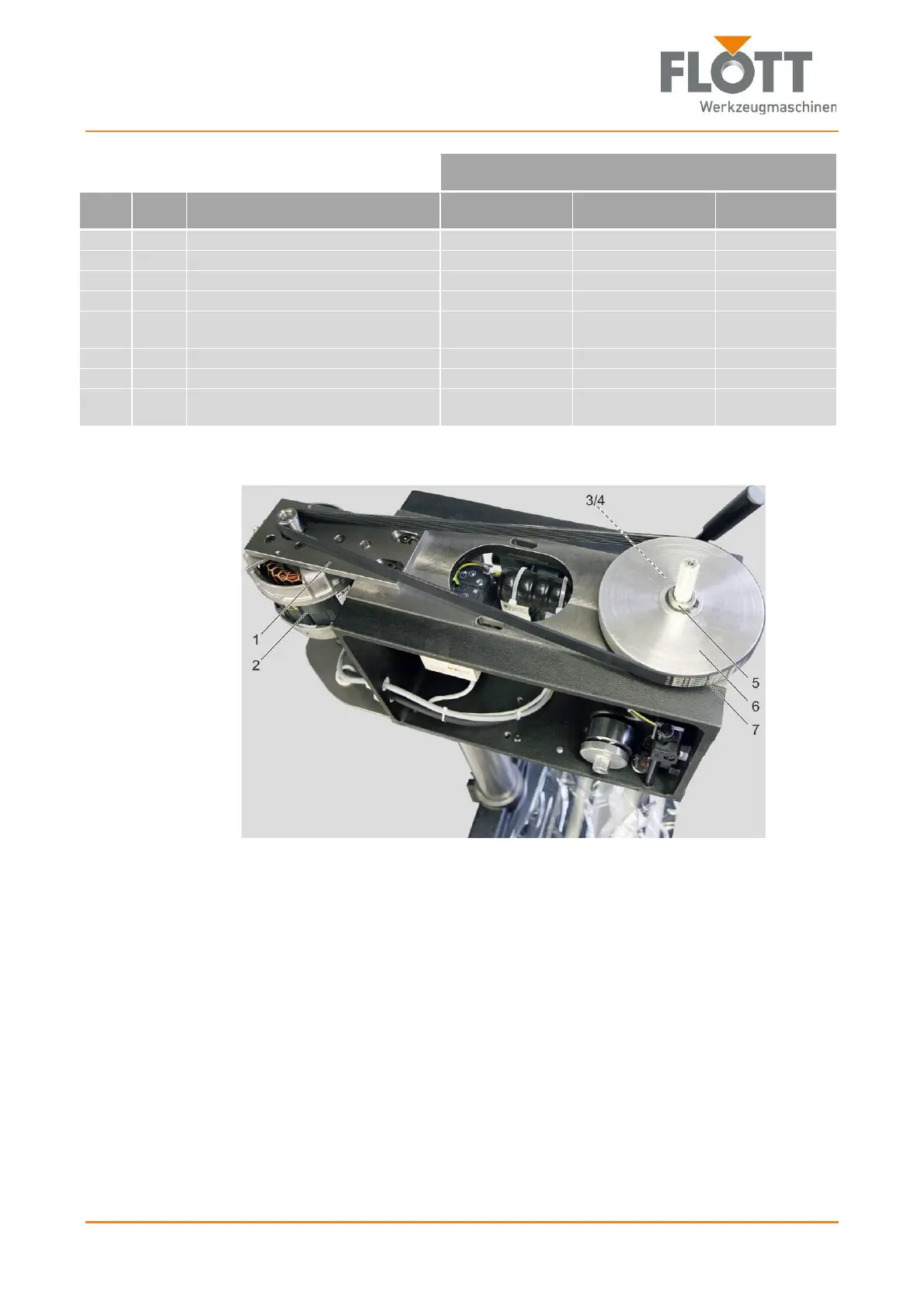

Fig. 4: SB/TB/TBZ P23 Plus (R2)
