Spare Parts List and Drawings
90 04/03/2020 218333
This does not apply to parts no longer manufactured due
to technical innovations!
Order number
Fig. Item Designation SB 25 Plus TB 25 Plus TBZ 25 Plus
2 1 Spindle Mk3 * 225172 225172 225172
2 2 Pinole * 225171 225171 225171
2 3 Grooved ball bearing DIN 625 *
25x52x15 – 6205 2Z
006842 006842 006842
2 4 Locknut self-locking
M24x1.5
009798 009798 009798
2 5 O-ring 009878 009878 009878
2 6 Grooved ball bearing DIN 625 *
30x62x16 – 6205 2Z
006793 006793 006793
2 7 Bolt * 169243 169243 169243
2 8 Worm wheel * 169254 169254 169254
2 9 Worm complete * (incl. adjusting ring,
bush and clamping sleeve)
200115 200115 200115
2 10 Funnel lubrication nipple *
DIN 3405-D8
007534 007534 007534
2 11 Hand crank 009657 009657 009657
2
–
Clamping lever 009200 009200 009200
2 12 Lamellar plugs 009731 009731 009731
2 13 Clamping flange 205664 205664 205664
2 14 Spiral spring * 205363 205363 205363
2 15 Pinion shaft * 218380 218380 218380
2 16 Drilling depth limiter compl. * 212545 212545 212545
2 17 Cylindrical knob * 009206 009206 009206
2 18 Drill lever 280390 280390 280390
2 19 Threaded pin DIN 915, M8x16 * 005809 005809 005809
2 20 Cylinder head screw DIN 912, M8x45 * 006554 006554 006554
* Wear part
17
18
15
16
1312 14
19
20
10
11
8
9
7
4
5
6
2
1
3

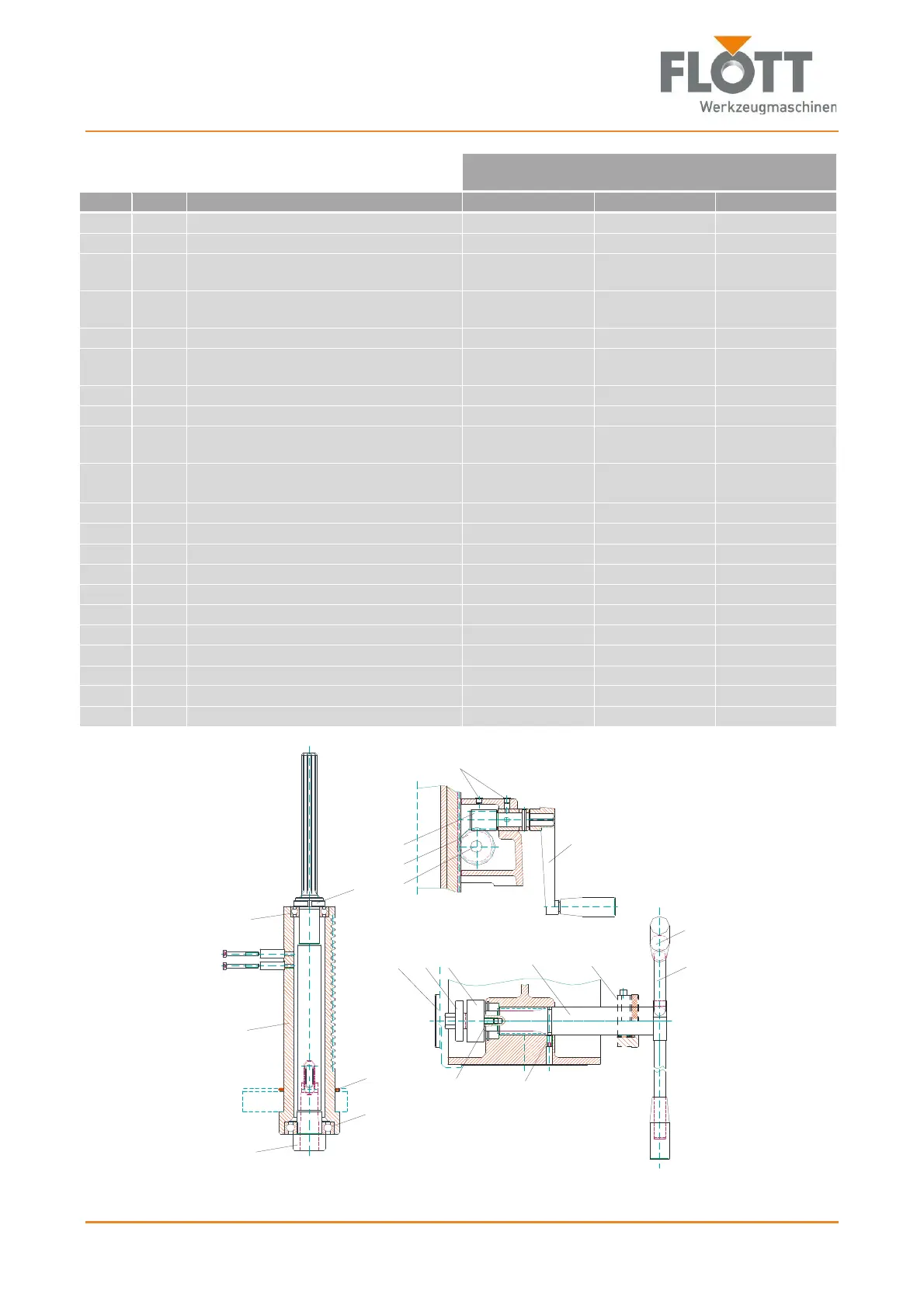

Fig. 2: SB/TB/TBZ P25 Plus
