Flott SB 18 Plus - Page 91

Spare Parts List and Drawings
218333 04/03/2020 91
This does not apply to parts no longer manufactured
due to technical innovations!
Order number
Fig. Item Designation SB 23 Plus TB 23 Plus TBZ 23 Plus
3 1 Frequency converter 1.5 kW * 223091 223091 223091
3 1 Motor 1.5 kW 223131 223131 223131
3 2 Motor holding bracket 223084 223084 223084
3 3 Ribbed V-belt DIN 7867 *
8PJx1150 mm
010103 010103 010103
3 4 Intermediate pulley D72.5/46.7 223074 223074 223074
3 5 Intermediate shaft 223071 223071 223071
3 6 Ribbed V-belt DIN 7867 *
8PJx610 mm
010170 010170 010170
3 7 Spindle pulley 225177 225177 225177
3 8 Running bush * 225176 225176 225176
3 9 Flange bearing 201401 201401 201401
3 9 Grooved ball bearing DIN 625 *
30x62x16 – 6205 2Z
006793 006793 006793
* Wear part

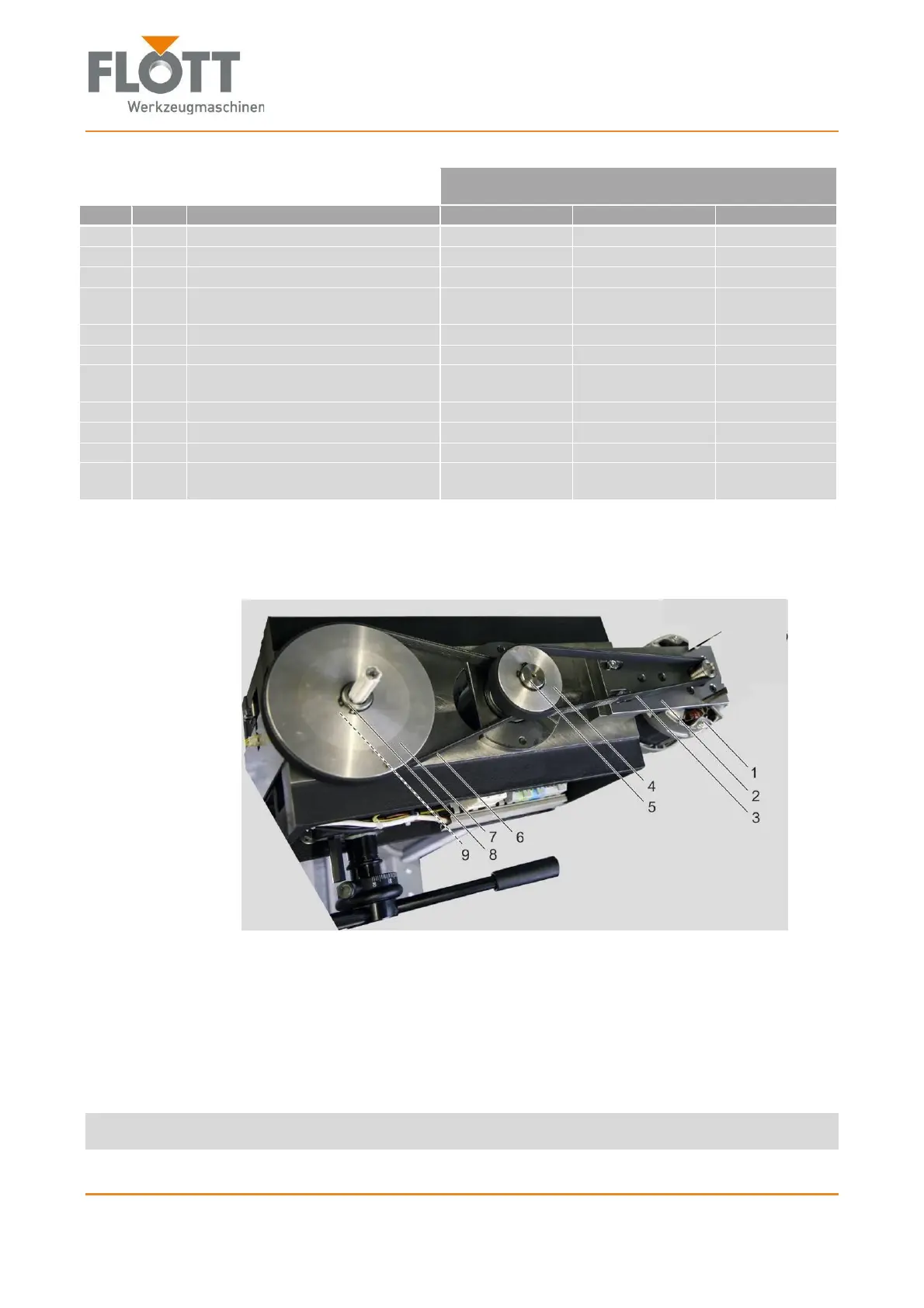

Abb. 3: SB/TB/TBZ P25 Plus
