Spare Parts List and Drawings
218333 04/03/2020 85
This does not apply to parts no longer manufactured
due to technical innovations!
Order number
Fig. Item Designation SB 23 Plus
R1/R2
TB 23 Plus
R1/R2
TBZ 23 Plus
R1/R2
1 1 Protective hood 218321 218321 218321
1 2 Control panel *
Knob *
212581
212608
212581
212608
212581
212608
1 3 Emergency stop push-button * 008677 008677 008677
1 3 Toggle switch * 009461 009461 009461
1 3 Small front plate 218322 218322 218322
1 3 Cable harness 223092 223092 223092
1 4 Head 223051 223051 223051
1 4 Adapter 205316 205316 205316
1 5 Replacement sight protection * 218366 218366 218366
1 5 Drill guard bracket 290817 290817 290817
1 5 Clamping jaws (1 pair) 009603 009603 009603
1 5 Fillister head screws DIN 912,
M6x16
004845 004845 004845
1 5 Micro limit switch * 008537 008537 008537
1 6 Arm 205103 205103 –
1 7 Toothed rack 205109 201144 201144
1 8 Pillar 205116 205121 205121
1 9 Stand pillar 205106 – –
1 10 Stand plate 205105 – –
1 11 Table foot – 205143 –
1 12 Machine cabinet (option) – 205160 205160
1 13 Main switch 208040 208040 208040
1 18 Air protection * 007908 007908 007908
* Wear part
1
2
3
5
4
6
9
10
7
8
13
1
2
4
3
5
6
7
8
11
13
1
2
3
4
5
11
13
7
8
12

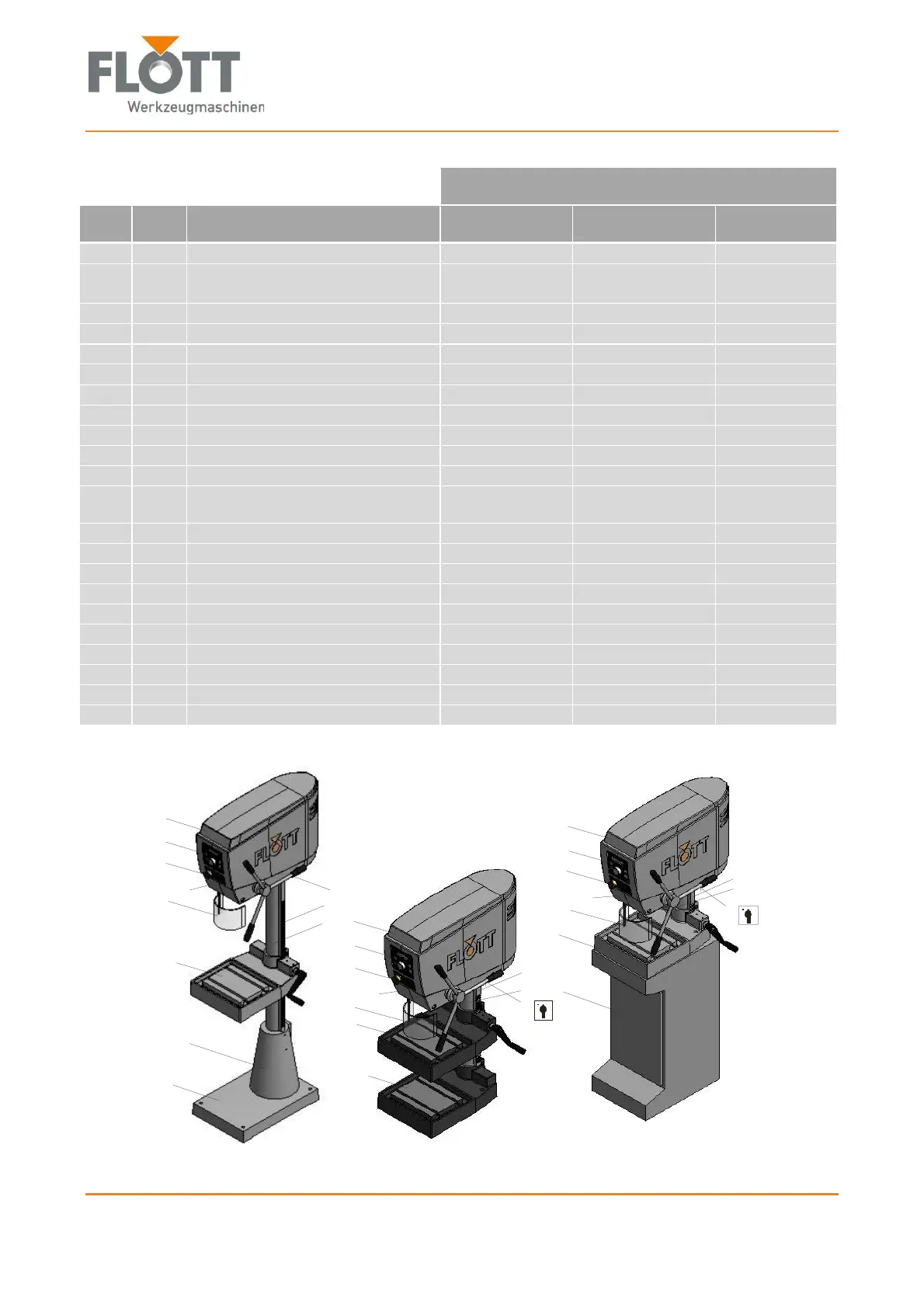

Fig. 1: SB/TB/TBZ P23 Plus (R1/2)
