Spare Parts List and Drawings
86 04/03/2020 218333
This does not apply to parts no longer manufactured due
to technical innovations!
Order number
Fig. Item Designation SB 23 Plus
R1/R2
TB 23 Plus
R1/R2
TBZ 23 Plus
R1/R2
2 1 Bolt * 169243 169243 169243
2 2 Worm wheel * 169254 169254 169254
2 3 Worm complete * (incl. adjusting ring,
bush and clamping sleeve)
200115 200115 200115
2 4 Funnel lubrication nipple *
DIN 3405-D8
007534 007534 007534
2 5 Hand crank 009657 009657 009657
2
–
Clamping lever 009200 009200 009200
2 6 Spindle Mk2 * 201342 201342 201342
2 7 Bump stop * 201343 201343 201343
2 8 Grooved ball bearing DIN 625 *
25x52x15 – 6205 2Z
007137 007137 007137
2 9 Quill * 201341 201341 201341
2 10 Locknut self-locking
M20x1.5
009797 009797 009797
2 11 Lamellar plugs 009731 009731 009731
2 12 Clamping flange 205664 205664 205664
2 13 Spiral spring * 205363 205363 205363
2 14 Pinion shaft * 218380 218380 218380
2 15 Drilling depth limiter compl. * 212545 212545 212545
2 16 Cylindrical knob * 009206 009206 009206
2 17 Drill lever 280390 280390 280390
2 18 Threaded pin DIN 915, M8x16 * 005809 005809 005809
2 19 Cylinder head screw DIN 912, M8x45 * 006554 006554 006554
* Wear part
6
7
8
8
9
10
16
17
14
15
1211 13
18 19
4
5
2
3
1

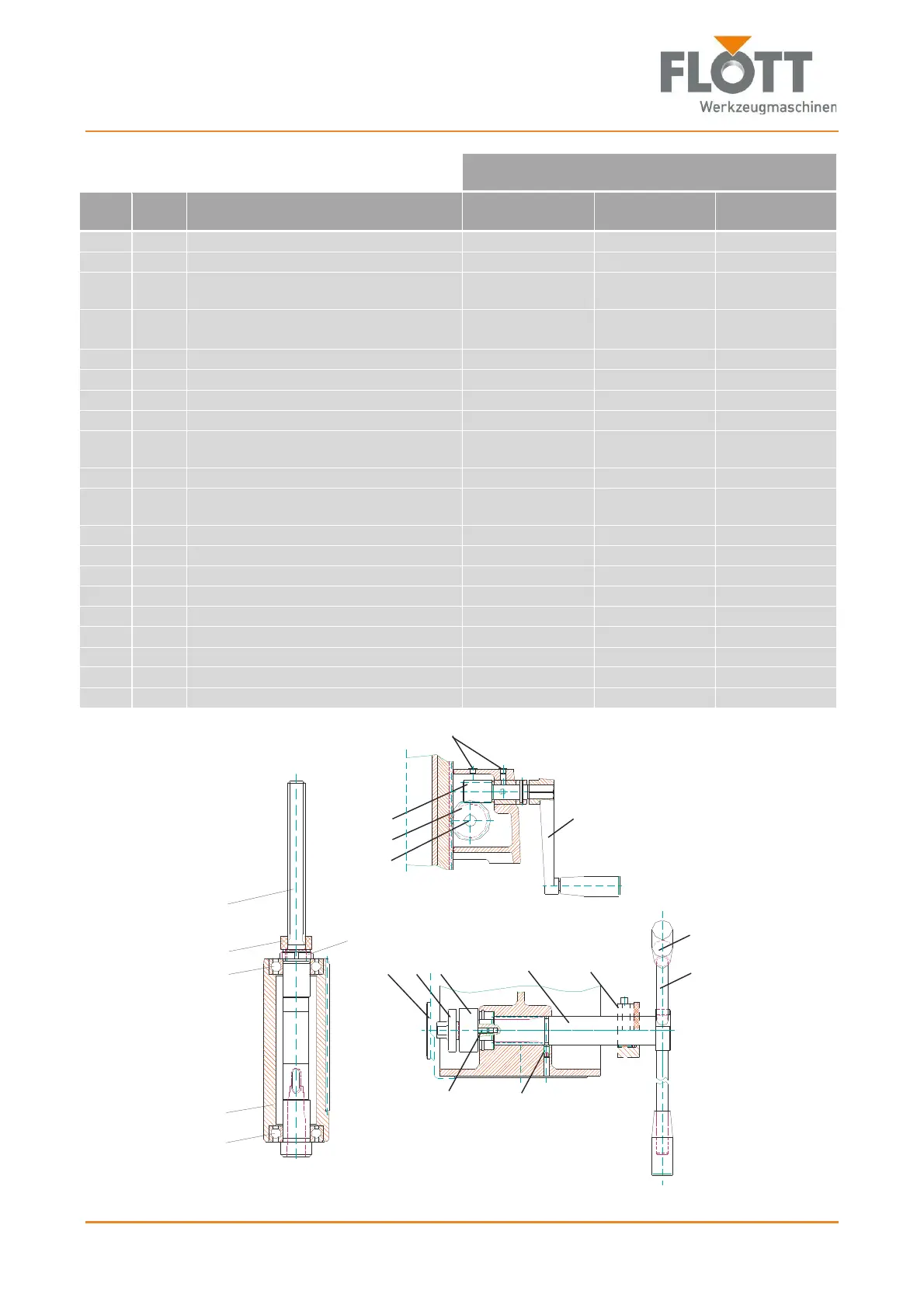

Fig. 2: SB/TB/TBZ P23 Plus (R1/R2)
