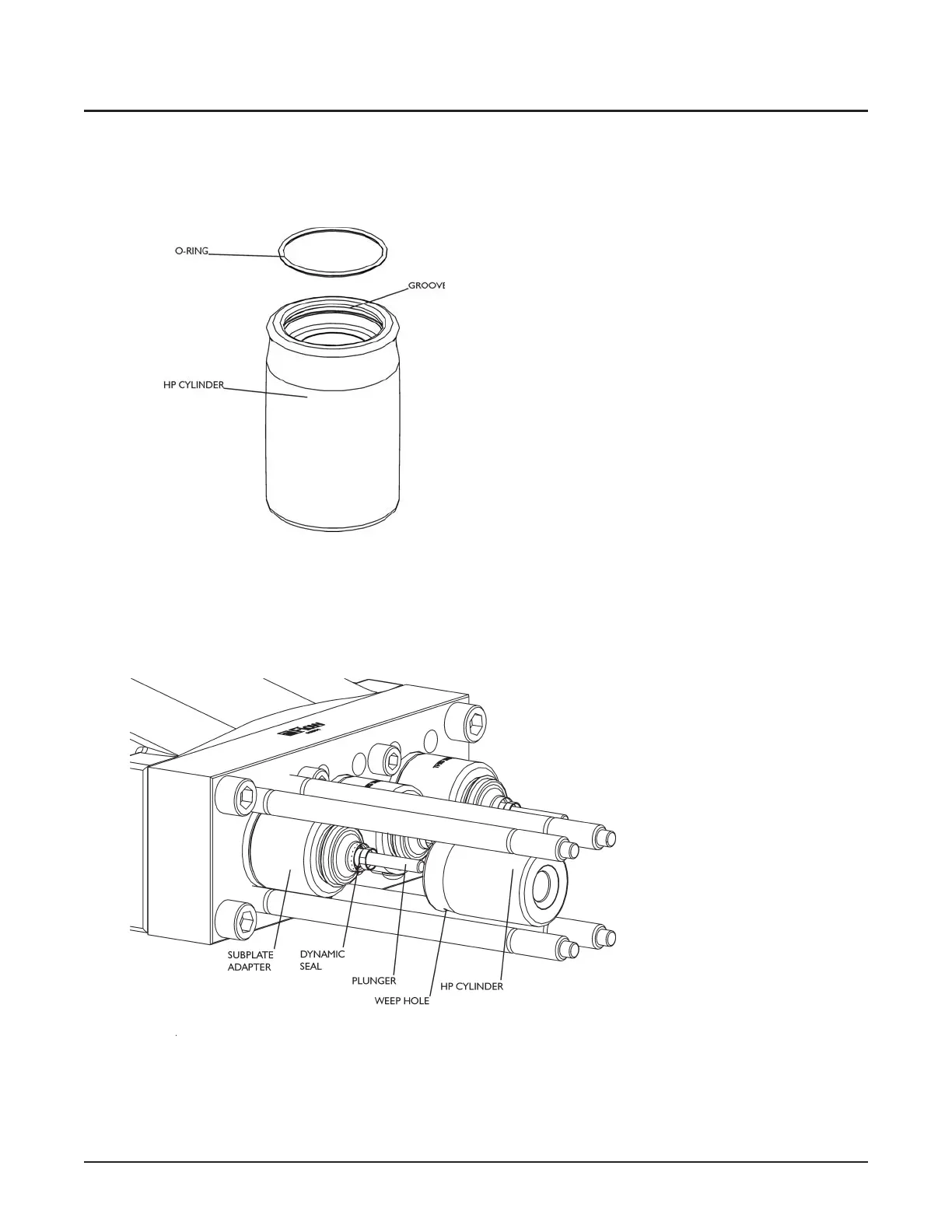

Install the high-pressure cylinder
1. Lubricate the o-ring with o-ring lube and place it in
the appropriate grooves of the high-pressure
cylinder.
2. Slide the high-pressure cylinder over the plunger as-
sembly and seat it against the seal carrier. Position
the cylinders with weep holes facing downward.
Note: A small amount of force may be needed to
seat the cylinder against the seal carrier.
Repeat for the remaining high-pressure cylinders.
