STRADA PAL – MAINTENANCE MANUAL
111/149
8.5.7 Replacing the collection trapdoor locking module
8.5.7.1 Preliminary operations
A. Ask a collection operator to perform a first collection of the coins to remove the
coinbox.
B. Ask the collection operator to perform a second collection so that it unlocks the
collection compartment.
C. Turn off the terminal
D. Disassemble the collection trapdoor
8.5.7.2 Replacement

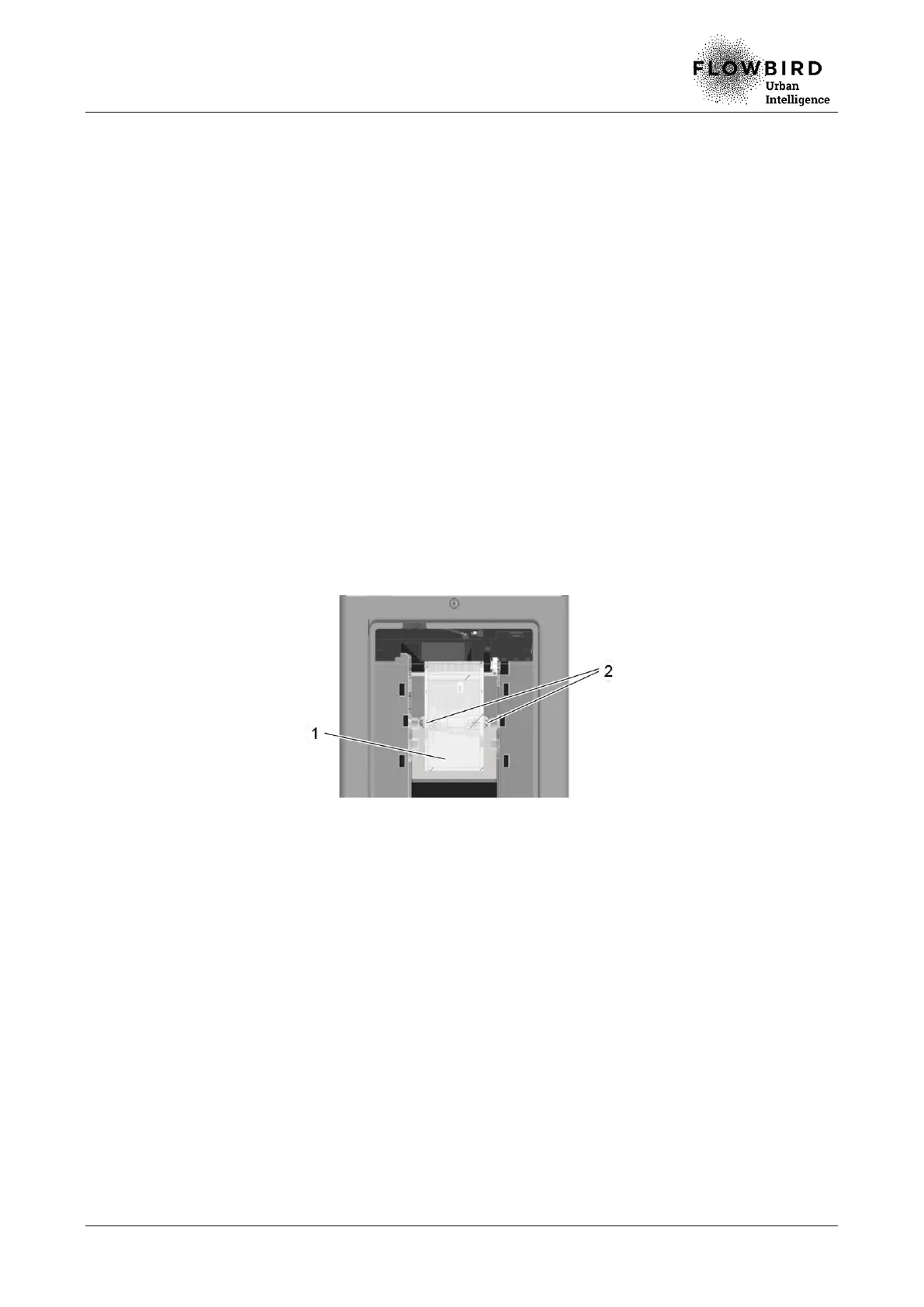

A. While holding the locking module (1), remove the 2 screws (2).
B. Remove the locking module out of its location.
C. Unplug the locking module cables.
D. Remove the locking module.
Replacing the collection trapdoor locking module
8.5.7.3 Installation
A. Repeat the previous steps in reverse.
8.5.7.4 End of procedure
A. Reassemble the collection trapdoor
B. Turn on the terminal
C. Close the maintenance door
