FLOWBIRD STRADA PAL - Replacing the Components of the Transfer Collection Compartment

STRADA PAL – MAINTENANCE MANUAL
112/149
8.6 Replacing the components of the Transfer collection
compartment
8.6.1 Replacing the collection trapdoor
8.6.1.1 Preliminary operations
A. Turn off the terminal
B. Disassemble the maintenance door
8.6.1.2 Replacement
A. Open the collection trapdoor

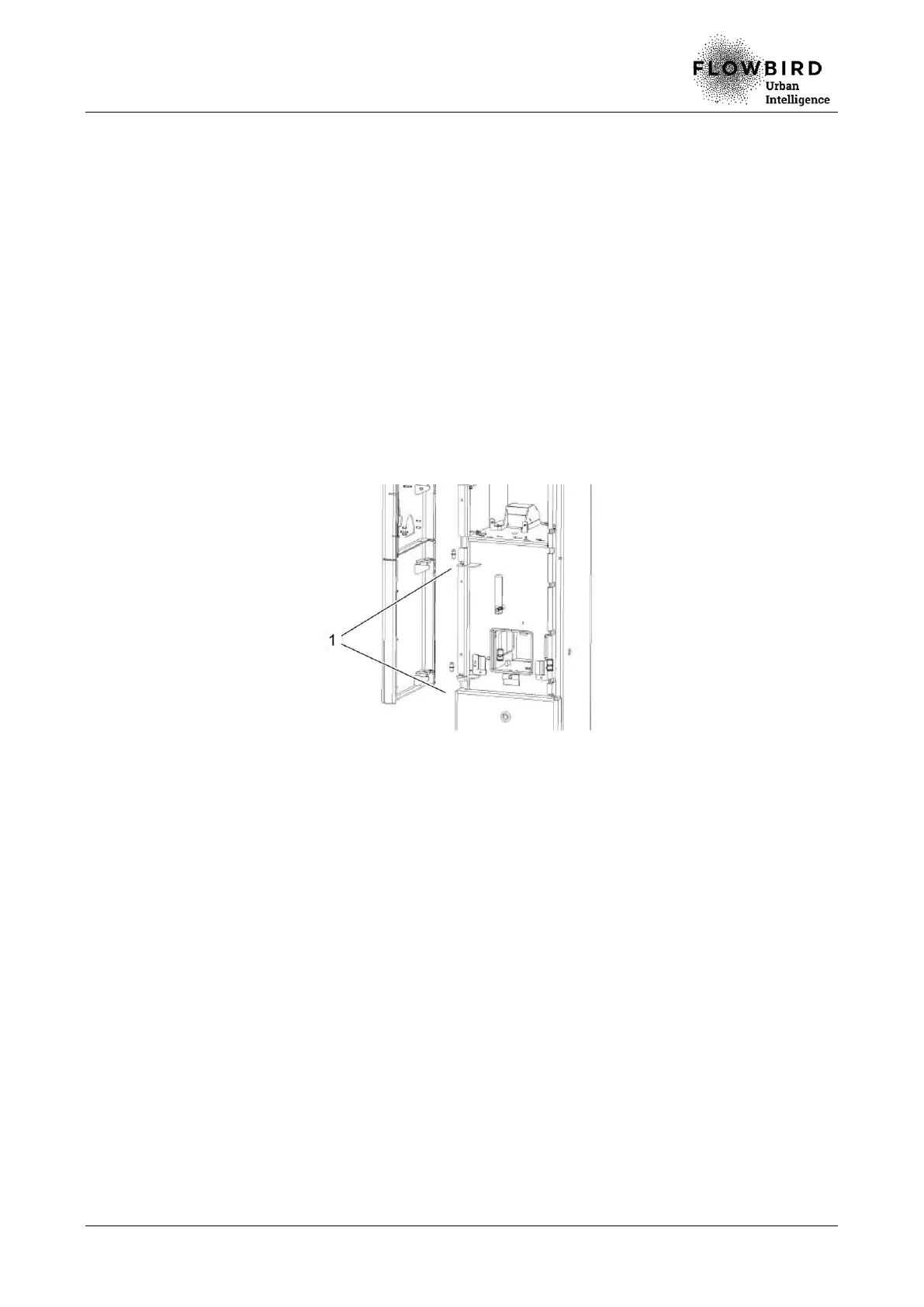

B. Lift the collection trapdoor to remove it from the rotation axes (1).
Replacing the collection trapdoor
8.6.1.3 Installation
A. Repeat the previous steps in reverse.
8.6.1.4 End of procedure
A. Reassemble the maintenance door
B. Perform a door opening / closing function test.
C. Turn on the terminal
